PROHP-EU SERIES SECURITY SYSTEMS
User Guide Available Online: This Quick Guide describes the most frequently used features and functions of your system. For
full details of all user functions, please see the system's User Guide located online (see PROHP-EU Series Security System
User Guide P/N R800-27316A or higher). The full version User Guide is also available from your installer upon request.
Congratulations on your ownership of Resideo Security System. This system provides:
• Three forms of detection: burglary, fire and emergency (see your installer for which forms of detection are installed)
• At least one keypad which provides control of system and displays system status
• Various sensors for perimeter and interior burglary detection
• Optional smoke or combustion detectors designed to provide early warning in case of smoke.
Your system may also be programmed to automatically send alarm and status messages to a Central Monitoring Station.

SYSTEM BASICS

The following is a list of some of the most common features and functions of your system:
• Several modes of burglary detection: Stay, Night-Stay, Away, Instant, Maximum.
• Bypass feature lets you bypass selected zones while leaving the rest of the system armed.
• Chime mode alerts you to the opening of protected doors and windows while the system is disarmed.
• Smoke and carbon monoxide detection are always active (if installed); an alarm sounds if a smoke or carbon monoxide condition
is detected.
• Fire, Police and Personal Panic keys (if programmed) let you manually initiate fire and personal alarms using the keypad.
• 4/6-digit security codes or Prox Tags are used in conjunction with keypad commands to perform system functions.
• Each user can be assigned a different security code, each with different authority levels.
• The system sensors have been assigned to various "zones," which are specific areas of detection (e.g., front door, kitchen
window, etc.).
• Zone numbers (points of detection) are displayed at the keypad when an alarm or trouble condition occurs.
• Partitions provide independent areas of detection with each partition containing a group of zones that can be armed and
disarmed without affecting other zones or users.
• If Prox Tags have been programmed for use with the system, for most functions you can swipe the tag over the reader
before a key sequence and do not need to enter the 4/6-digit user code.

ENTRY/EXIT DELAYS

• Entry Delays give you time to disarm the system when you enter through the designated entrance door.
• You must disarm the system before the entry delay period ends, or an alarm will occur (Keypad beeps during the entry delay
period, reminding you to disarm the system).
• Exit delay gives you time after arming the system to leave through the designated exit door(s) without setting off an alarm. If
programmed, a slow beeping will sound during the exit delay period until the last 10 seconds, which then changes to fast beeping
(alerting you to the end of exit delay). If you cannot leave within this delay time period, you should stop, disarm the system, and
start over to avoid a false alarm.
See your installer for your delay times. See the full User Guide for details on Exit Error alarms

NOTES ON BURGLARY DETECTION

The system must be armed before the burglary detection can sense intrusions.
To arm your system, enter your security code followed by the desired arming key.
To disarm the system, enter your security code then press the OFF key.
When an alarm occurs, the Keypad sounds. The external sounder may also sound.
If your system is connected to a Central Monitoring Station, an alarm message is also sent (delayed 30 seconds by default to
reduce false alarms).
To stop the alarm sounding, simply disarm the system.
Memory of Alarm: When an alarm condition occurs, the
alarm and displays the type of alarm. Clear the Memory of Alarm display by entering another "off" sequence.
IMPORTANT: If you return to the premises and the main burglary sounder is on, or the Keypad beeps rapidly upon
entering the premises, it indicates that an alarm has occurred during your absence and an intruder may still be on the
premises. LEAVE IMMEDIATELY and CONTACT THE POLICE from a nearby safe location.

NOTES ON CO DETECTION

• Your fire alarm system (if installed) is on 24 hours a day, for continuous detection. In the event of an emergency, the smoke
and heat detectors sound their alarms, triggering a loud, interrupted pulsed sound from the Keypad(s) and any external
sounders.
• The alarm can be silenced by entering a User Code + OFF key.
• Carbon monoxide (CO) detectors, if installed, provide continuous detection. If a high level of carbon monoxide is detected, an
interrupted pulsed alarm sound occurs at the keypads and the detector(s). Immediately move to a spot where fresh air is
available, preferably outdoors. From a safe area, call your security service provider for further instructions. To silence the keypad
sounding, press the OFF key. To silence the detector, see its instructions.
Quick Guide to User Functions
LCD
Keypad displays the number(s) of the zone(s) that caused the
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROHP-EU Series and is the answer not in the manual?

Questions and answers

Summary of Contents for resideo PROHP-EU Series

  • Page 1 User Guide Available Online: This Quick Guide describes the most frequently used features and functions of your system. For full details of all user functions, please see the system’s User Guide located online (see PROHP-EU Series Security System User Guide P/N R800-27316A or higher). The full version User Guide is also available from your installer upon request.

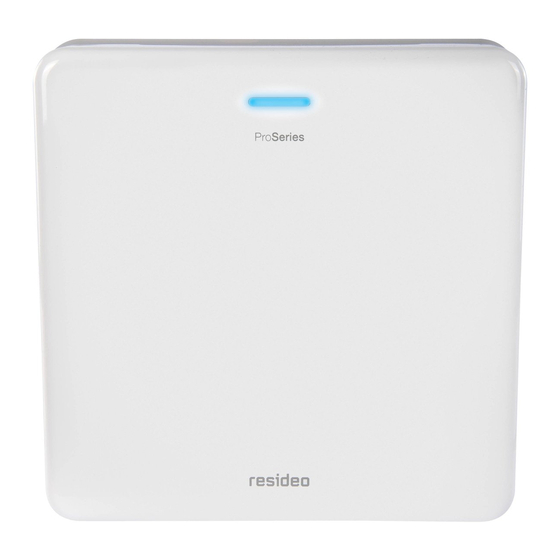

  • Page 2 PROHP-EU CONTROL PANEL SYSTEM STATUS LED FUNCTIONS A Blue LED, on the front of the PROHP-EU Control Panel, indicates the system status, as noted below. Status Meaning Steady AC Connected, Panel ON, Battery Charged AC present, Panel ON, Battery Trouble (Low Battery, Battery Blinking malfunction, Battery not detected) No AC Power, Panel ON...
  • Page 3 Keypad LED Indications Status Meaning POWER Green – Steady Battery Okay Red – Flashing Battery Low STATUS System/Partition is Not Ready to Arm Red – Steady System/Partition is Armed Green – Steady System/Partition is Ready to Arm Red – Flashing Alarm has been detected TROUBLE No troubles present...
  • Page 4 PANIC KEYS Your system may have been programmed to use special keys to manually activate emergency (panic) functions as follows: Function Sends This Signal* With This Sounding… Silent Alarm silent alarm no audible alarm; displays, “Press [∗] to show faults,” indicating that a silent alarm has been initiated. Audible Alarm audible alarm a loud, steady alarm at keypad(s) and at any external sounders that may be connected.
  • Page 5 TESTING THE SYSTEM Using the Test mode allows each detection point to be checked for proper operation. Testing should be conducted weekly to ensure proper operation. • The Keypad sounds a single beep about every 60 seconds as a reminder that the system is in the Test mode. •...
  • Page 6 Resideo your installer is advisable. Name: Address: Phone: This product manufactured by Resideo Technologies, Inc. and its affiliates. Sécurité Communications SAS (SECOM) Ademco 1 Ltd., 200 Berkshire Place 1198, Avenue du Docteur Maurice Donat Winnersh Triangle, Berkshire, 06250 Mougins - FRANCE RG41 5RD –...
