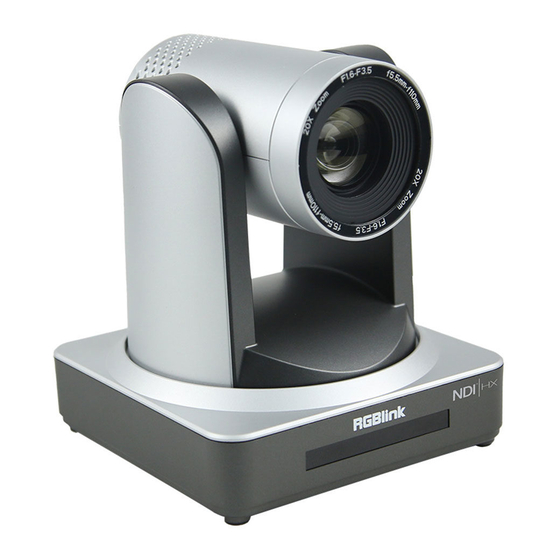

- Page 1 NDI Camera RGB20X/30X-PNDI-WH User Manual Article No: RGB-RD-UM-NDI E001 Version: V1.0...
-
Page 2: Table Of Contents
3.4.1 Connecting Mode............................27 3.5 IE Log In................................29 3.5.1 Web client..............................29 3.5.2 Preview.................................29 3.6 Configuration..............................30 3.6.1 Local Configuration............................30 3.6.2 Audio Configuration.............................30 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 3 6.1.2 Camera Control Command.......................... 47 6.1.3 Inquiry Command............................50 6.2、Pelco-D Protocol Command List........................52 6.3、Pelco-P Protocol Command List........................53 6.2 Terms & Definitions......................错误！未定义书签。 6.3 Revision History..............................54 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 4: Declarations
RGBlink. If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. -
Page 5: Installation Safety Summary
Don’t apply in corrosive liquid, as or solid environment to avoid the cover which is made up of organic material. To make sure no obstacle in rotation range. Never power on before installation is completed. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 6 Don’t disassemble discretionarily. We are not responsible for any unauthorized modification or dismantling. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 7: Chapter 1 Your Product
1.2.1 Product Model The User Manual is applicable to: 20X NDI Camera(Support PoE): RGB20X-PNDI-WH 30X NDI Camera(Support PoE): RGB30X-PNDI-WH 1.2.2 Dimension Figure 1.1 NDI Camera dimension © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 8: Main Features
Support compression of resolution up to 1920×1080 with frame up to 60 fps and 2 channel 1920×1080p with 30 fps compression. 3) Multiple network protocol: Support ONVIF,RTSP,RTMP,NDI protocols and RTMP push mode, easy to link streaming media server. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 9 Input Current 1A（Max） Consumption 12W(Max) Store Temperature -10℃～+60℃ Store Humidity 20%～95% Working Temperature -10℃～+50℃ Working Humidity 20%～80% Dimension 150mm×150mm×167.5mm Weight 1.4kg Working Environment Indoor © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
- Page 10 Remote Operation (IP) Remote Upgrade, Reboot and Reset Accessory Power Supply、RS232 Control Cable、Remoter Optional Accessory Bracket © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 11: Chapter 2 Install Your Product
External interface: RS232 Input /Output, RS485 Input, Audio Input,3G-SDI Output, HDMI Output, DNI Network Output Interface, DC12V Power Interface. Figure 2.2 External Interface diagram © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 12: Bottom Dial Switch
Computer or keyboard and camera connection method Camera WindowsDB-9 1.DTR 1.DCD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 13 6.GND 7.IR OUT 7.OPEN 8. NC 8.OPEN Note: PTZ Camera has RS232 input and output interface, so you can cascade as the above way. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 14: Bracket Mount
Note: Bracket can only be wall mounted or upside down mounted on template and concrete wall, but can not be installed on plasterboard. 1）Wall mount step © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 15 2）Upside down mount step © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
- Page 16 Note:The bracket mount is the optional accessory. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 17: Chapter 3 Use Your Product
Note: When the device is first powered on, the current IP address of the camera is displayed in the upper left corner of the screen. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 18: Remote Controller
Open or close the OSD menu Enter / exit the OSD menu or return to the previous menu 11. Camera IR Remote Control Address Setting © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 19: Applications
2. When a key-combination is required, do it in sequence. For example,“ 【 *】+【#】+【F1 】”means press“【*】”first and then press“【#】” and last press“【F1】”. 1）Camera Selection Select the camera address to control. 2）Pan/Tilt Control © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 20 Press and hold the key, the action of focus will keep continue and stops as soon as the key is released. 5) BLC Setting BLC ON / OFF: support 6) Presets Setting, Running, Clearing © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 21: Menu Setting
In normal working mode, press 【MENU】 key to display the menu, using scroll arrow to point at or highlight the selected items. MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Language English （Setup） （Camera） （P/T/Z） （Video Format） （Version） （Restore Default） [↑↓]Select [← →]Change Value [Menu]Back [Home]OK © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 22: System Setting
Visca Address Fix: On/Off 3.3.3 Camera Setting Move the pointer to the (CAMERA) in the Main Menu, click the【HOME】 key and enter the (CAMERA) as follow. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 23 Anti‐Flicker: OFF/50Hz/60Hz for options (only available in Auto/Iris priority/Brightness priority modes) Gain Limit: 0~15(only available in Auto/ Iris priority /Brightness priority mode) WDR: Off,1~8 Shutter Priority:1/25,1/30,1/50,1/60,1/90,1/100,1/120,1/180,1/250,1/350,1/500,1/1000,1/2000,1/3000,1/4000, © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
- Page 24 Color Temp: high/middle/low Color Style: Default, style1~4. 3) IMAGE Move the pointer to the (IMAGE) in the Menu, click the【HOME】and enter the (IMAGE) as follow. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
- Page 25 AF‐Sensitivity: High, middle, low 5) NOISE REDUCTION Move the pointer to the (NOISE REDUCTION) in the Menu, click the 【 HOME 】 and enter the (NOISE © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 26: P/T/Z
Accelerating Curve: Fast/slow 3.3.5 Video Format Move the pointer to the (Video Format) in the Menu, click the【 HOME】 and enter the (Video Format) as follow. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 27: Version
Lens: Display the lens zoom 3.3.7 Restore Default Move the pointer to the (RESTORE DEFAULT) in the Main Menu, click the【HOME】and enter the (RESTORE DEFAULT) as follow. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 28: Network Connection
1) open the window of Local Area Connection Properties on computer, double click or click the property “Internet”protocol version 4 (TCP/IPv4)to enter into the Internet Protocol Version 4(TCP/IPv4) Properties window. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com... - Page 29 4) Click “OK” and open the DOS command window, input ping 192.168.5.26 and press Enter key, it will show message as below:which means network segment adding is succeed. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
-
Page 30: Ie Log In
You can record the video and save it on SD Card when SD Card built in. Video can be saved on the Computer at Local. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 31: Configuration
Compressing code rate: Set audio compressing code rate (default 64bits,32,48,96,128bits optional) Note : Click “SAVE”,it will remind”Enable has changed. Restart the device to take effect after the success of © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com... -
Page 32: Video Configuration
A.Focus: Focus mode,focus range,focus sensitivity can be set. Focus Mode: set the focus mode (the default auto,manual optional) Focus range: set the focus range (the default middle,the upper and lower optional) © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 33 Dynamic dead pixel correction: Set Dynamic dead pixel correction (default Off,1-8 optional). Click “Refresh”to make revision of any video parameters of a,b,c,d,e effective 5) Character‐Overlapping © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 34: Network Configuration
Physical Address: Set the physical address (the parameter is read-only but can not be modified). Click on the "Save" button,it will be valid when display "Save successful". (Note: To prevent IP conflicts When modify ). © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 35: System Configuration
NTP Server Port: Sets the NTP server port (default 123).Valid after setting NTP server synchronization. Set the time manually,Effective when set manually. Click on the "Save" button,it will be valid when display "Save successful". © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 36 . 6) Reboot Click on the pop-up "Reboot" button and choose “YES” or “NO”,then the device will restart automatically © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 37: Ndi Instruction
The success of last step indicates that NDI|HX can be used normally. 3.7.2 NDI|HX Network Audio and Video Encoding Parameters 1) NDI|HX Audio Encoding Parameter Configuration © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 38 5.Video Out is used for SDI and HDMI. Since SDI and HDMI are turned on by default, it is recommended to adjust the Video Out Format to 720PX with X representing the frame rate. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
-
Page 39: Ndi|Hx Instruction Of Vmix
For example, if the frame rate is 25FPS, then a frame of data is 40ms and the frames are 5, then the network delay will increase by about 200ms. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com... -
Page 40: Ndi|Hx Instruction Of Obs
3.7.4 NDI|HX Instruction of OBS 1) Users need download OBS-NDI plug-in from official forum OBS-NDI plug-in reference address：https://github.com/Palakis/obs-ndi/releases/tag/4.7.0 2) OBS adds NDI source 4)Open the audio © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 41: Several Problem Solving
A: NDI|HX compression (h264, h265) is supported, while FULL NDI compression is not supported. The H265 video compression format is supported only with the latest NDI4.5.2 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 42: Setting Of Ndi Applied To Video Conference Software
4)Use the NDI camera to join the video conference. First open the "Virtual Input" program in the NDI software. The program will mount a background program in the background, right-click the icon and select the NDI device. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 43: Logout
3.8 Logout Point "Logout" pop‐up "Confirmation" dialog; select "Yes" or "No",choose “Yes” to exit the current page and return to the user login interface again. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 44: Chapter 4 Ordering Codes
Chapter 4 Ordering Codes 4.1 Product 981-0011-14-0 RGB20X-PNDI-WH 20X NDI Camera(Support PoE) 981-0011-16-0 RGB30X-PNDI-WH 30X NDI Camera(Support PoE) © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 45: Chapter 5 Support
Chapter 5 Support 5.1 Contact us © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 46: Camera Maintenance And Troubleshooting
Check whether your computer is added the segment and the segment is consistent with the IP address of the camera d, Click "Start" and select "Run" and then type “cmd” in the computer;Click "OK" then turn on a DOS © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 47 192.168.5.163. Press the Enter key to appear message as follows: Description network connection is normal © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 48: Chapter 6 Appendix
8x 01 04 47 0p 0q 0r 0s pqrs: Zoom Position CAM _Zoom Focus Direct 0t 0u 0v 0w FF tuvw: Focus Position CAM_WB Auto 8x 01 04 35 00 FF © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 49 Reset 8x 01 04 21 00 FF CAM_WDRStrength 8x 01 04 21 02 FF WDR Level Setting Down 8x 01 04 21 03 FF © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
- Page 50 P: 0~E Video format 0:1080P60 8:720P30 1:1080P50 9:720P25 Set camera CAM_VideoSystem 8x 01 06 35 00 0p FF video system 2:1080i60 A： 1080P59.94 3:1080i50 B： © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 51: Inquiry Command
50 00 00 0p 0q FF pq: B Gain y0 50 00 FF Full Auto CAM_AEModeInq 8x 09 04 39 FF y0 50 03 FF Manual © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 52 50 ab cd CAM_VersionInq 8x 09 00 02 FF mn pq rs tu vw FF ( 0510 ) 、 U2( 0512 )、U3 ( 0513 )、HD © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 53: Pelco-D Protocol Command List
Address 0x00 0x03 0x00 Preset ID Clear Preset 0xFF Address 0x00 0x05 0x00 Preset ID Call Preset 0xFF Address 0x00 0x07 0x00 Preset ID © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 54: Pelco-P Protocol Command List
Query Zoom Position 0xA0 Address 0x00 0x55 0x00 0x00 0xAF Query Zoom Position Value Low 0xA0 Address 0x00 0x5D Value High Byte 0xAF Response Byte © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 55: Revision History
All information herein is © Xiamen RGBlink Science & Technology Co Ltd. excepting where noted. RGBlink®is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd. While all efforts are ma de for accuracy at time of printing, we reserve the right to alter, vary or otherwise make change without noti ce.
