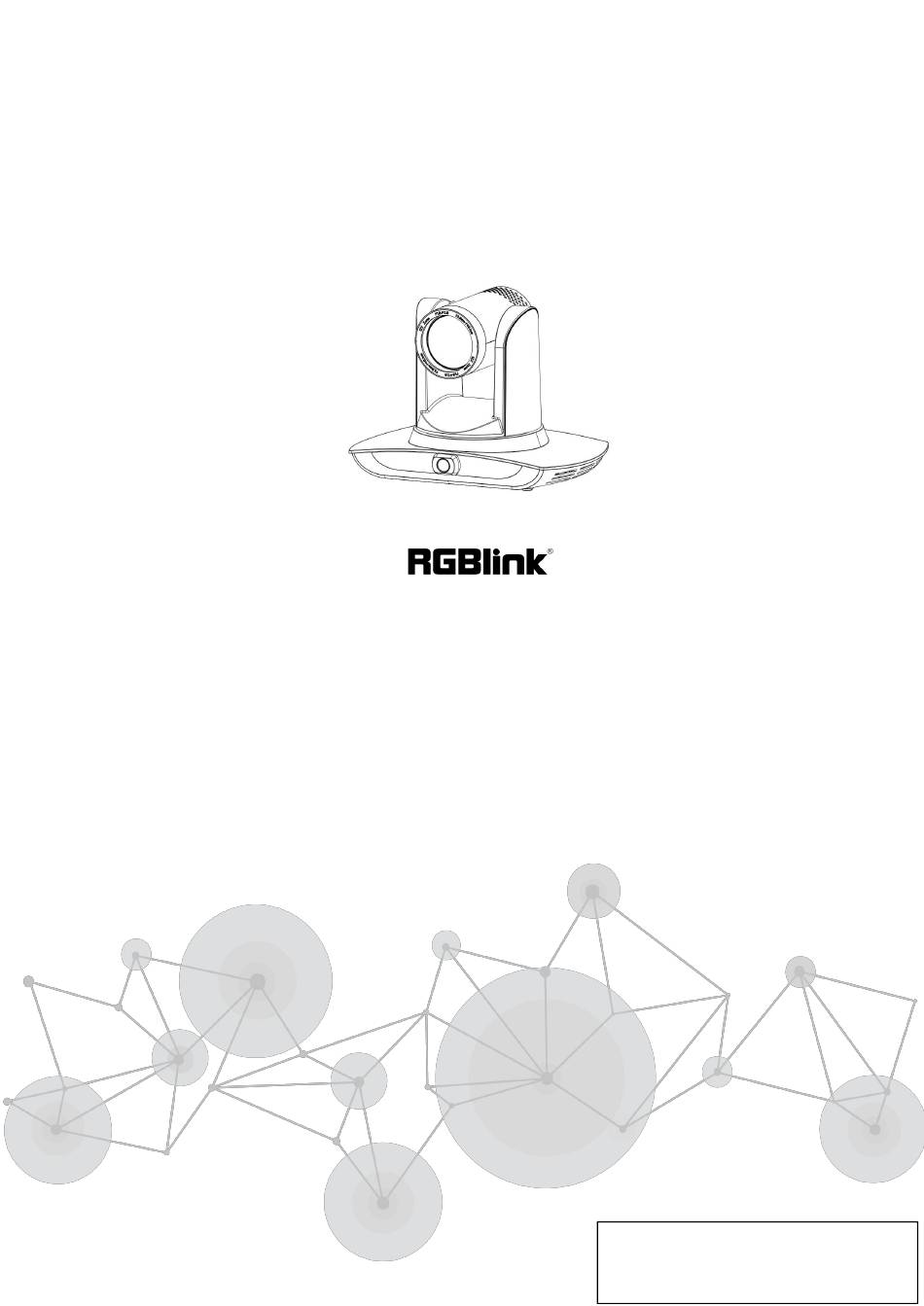

- Page 1 PTZ AI Tracking Camera User Manual Article No: RGB-RD-UM-PTZ AI Tracking E001 Version: V1.0...
-
Page 2: Table Of Contents
3.5.6 Version..........................10 3.5.7 Restore Default........................10 Chapter 4 Ordering Codes........................12 4.1 Product............................12 Chapter 5 Support..........................13 5.1 Contact us........................... 13 5.2 Camera Maintenance and Troubleshooting................14 5.2.1 Camera Maintenance......................14 5.2.2 Troubleshooting........................14 Chapter 6 Appendix..........................16 PTZ AI Tracking Camera User Manual... - Page 3 6.2 VISCA Protocol List........................17 6.2.1 Camera Return Command....................17 6.2.2 Camera Control Command....................18 6.2.3 Inquiry Command.........................21 6.3 Pelco-D Protocol Command List....................23 6.4 Pelco-P Protocol Command List....................23 6.5 Terms & Definitions........................24 6.6 Revision History...........................29 PTZ AI Tracking Camera User Manual...
-
Page 4: Declarations
RGBlink. If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. -
Page 5: Installation Safety Summary
This series item must be put on the smooth desk or platform, and it can not be installed slant ways; If the camera is installed on TV or computer, the base can be fixed by four double-sided adhesive trays. PTZ AI Tracking Camera User Manual... - Page 6 Therefore, user should take corresponding measures. Caution If the power cord need to be extended, must only extend the cord connect to outlet 220V/110V. Do not extend the DC 12V power cord, otherwise malfunction could be caused. PTZ AI Tracking Camera User Manual...
-
Page 7: Chapter 1 Your Product

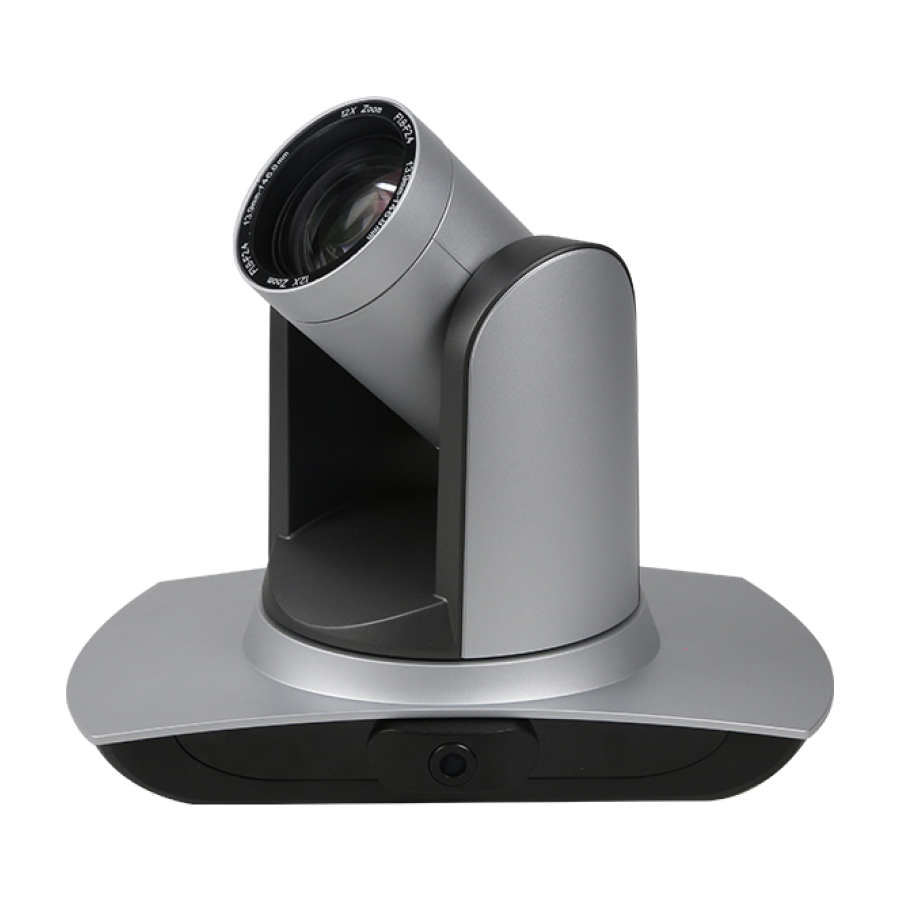

RS232 serial port line × 1 Remote control × 1 1.2 Product Overview PTZ AI Tracking Camera is a dedicated smart camera solution leading in international education information industry. It features built-in high speed processor and advanced image processing and analytical algorithm, which allows it to track and detect teachers, students and blackboard-writing accurately and quickly. -
Page 8: Interface
Sleep mode: It supports low-power consumption sleep/wake up mode. Power consumption in sleep mode is lower than 400mW; Multiple control protocol: It supports VISCA, PELCO-D, PELCO-P protocol, automatic recognition protocol 1.2.1 Interface Front view PTZ AI Tracking Camera User Manual... - Page 9 10. LAN network port for close-up lens 11. Power supply port (DC12V) Pin definition: Port Definition Data Terminal Ready Data Set Ready Transmit Data Signal ground Receive Data Signal ground IR Commander Signal IR IR OUT No Connection PTZ AI Tracking Camera User Manual...
-
Page 10: Dimension
1.2.2 Dimension PTZ AI Tracking Camera dimension PTZ AI Tracking Camera User Manual... -
Page 11: Chapter 2 Install Your Product
5-15m from blackboard (when the distance is 5-9m, 4mm panoramic lens is recommended; when distance is 9-15m, 6mm panoramic lens is recommended). Tracking cameras should be installed near central axis of the classroom as much as possible to get the best result of tracking camera shooting. PTZ AI Tracking Camera User Manual... -
Page 12: System Wiring
2.1.2 System wiring If the recording and broadcasting host supports LAN network control port, the concentrator can be replaced by LAN network switch. PTZ AI Tracking Camera User Manual... -
Page 13: Chapter 3 Use Your Product
Stop Tracking→Set Panoramic preset and close up→Set space for platform, tracking and shield →Set tracking parameter→start Tracking Here, the following is a description of settings according to the process. The main interface of configuration tool is shown in figure below. PTZ AI Tracking Camera User Manual... - Page 14 By controlling holder position and zoom value, it will adjust camera angle and position to preset position and save. Settings of panoramic preset position and platform preset position are as follows: PTZ AI Tracking Camera User Manual...
- Page 15 Tracking area: Tracking area means scope of tracking teacher. When the tracking target goes out of the tracking area, it will be considered tracking target losing. The tracking area can be set into polygon according to certain environment conditions, or set student area outside of tracking area. PTZ AI Tracking Camera User Manual...
- Page 16 Mask area: Mask area is usually the area which may impact result of teacher tracking, such as places which may have dynamic changes such as TV, projector, doors and windows. PTZ AI Tracking Camera User Manual...
- Page 17 V-move: In open mode (checked) and during teacher tracking, the camera will adjust angle of elevation according to height of tracking target; in off mode (unchecked) and during PTZ AI Tracking Camera User Manual...
- Page 18 (optional: return to panorama preset, platform preset, or remain original position). Down platform sensitivity: It is used for determining if teacher steps down platform. The lower the sensitivity, the longer teacher’s distance to blackboard it required to trigger teacher down platform action. PTZ AI Tracking Camera User Manual...
-
Page 19: Network Update
When updating the version, it needs to update device via IVESmart configuration tools. Click Configuration -> Network configuration & update to enter update interface, as shown below: When upgrading, note whether camera to be upgraded is close-up camera or panorama camera, PTZ AI Tracking Camera User Manual... -
Page 20: Recording And Broadcasting Host
IVESmart configuration tool or remote control. 1. Network receiving address Address for teacher tracking camera to receive command can be searched in IVESmart configuration tool, click Setting -> IP address -> search successively, as follows PTZ AI Tracking Camera User Manual... -
Page 21: Action Code Docking
IVESmart configuration tool. Click Configuration -> Network configuration & update, as shown below: 2. Configure action code Edit action code as needed via IVESmart configuration tool. Click Configuration -> advance parameters successively; After modification, click Confirm -> save parameters, as shown below: PTZ AI Tracking Camera User Manual... -
Page 22: Remote Controller
-] to adjust 6. Zoom Control Key Zoom＋:Lens near Zoom－:Lens far 7. Set or Clear Preset key Set Preset: Set preset key + 0-9 number key: Clear Preset key: Clear preset key + 0-9 number key PTZ AI Tracking Camera User Manual... -
Page 23: Applications
IR remote controller. Key Instruction: 1. In this instruction, “press the key” means a click rather than a long-press, and a special note will be given if a long-press for more than one second is required. PTZ AI Tracking Camera User Manual... - Page 24 Press and hold the key, the action of focus will keep continue and stops as soon as the key is released. 5) BLC Setting BLC ON / OFF: support 6) Presets Setting, Running, Clearing PTZ AI Tracking Camera User Manual...
-
Page 25: Menu Setting
MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Language English （Setup） （Camera） （P/T/Z） （Video Format） （Version） （Restore Default） [↑↓]Select [← →]Change Value [Menu]Back [Home]OK Language： Language setting, Chinese / English Setup：System setting Camera Option：Camera Setting P/T/Z：Pan tilt setting PTZ AI Tracking Camera User Manual... -
Page 26: System Setting
（Focus） （Noise Reduction） Style Default [↑↓]Select [← →]Change Value [Menu]Back [Home]OK Exposure:Enter into Exposure setting Image:Enter into image setting Color: Enter into color setting Focus: Enter into focus setting Noise Reduction:Enter into noise reduction PTZ AI Tracking Camera User Manual... - Page 27 IRIS Priority:OFF,F11.0,F9.6,F8.0,F6.8,F5.6,F4.8,F4.0,F3.4,F2.8,F2.4,F2.0,F1.8(only available in Manual and Iris priority mode) Brightness: 0~23 (only available in Brightness priority mode) 2) COLOR SETTING Move the pointer to the (COLOR) in the Main Menu, click the【HOME】and enter the (COLOR SET) as follow. PTZ AI Tracking Camera User Manual...
- Page 28 [← →]Change Value [Menu]Back Brightness: 0~14 Contrast: 0~14 Sharpness: 0~15 Flip-H: On/Off Flip-V: On/Off B&W Mode: color, black/white Gamma: default, 0.47, 0.50, 0.52, 0.55 DZoom: digital zoom options: On/Off DCI: Dynamic Contrast: Off,1～8 4) FOCUS PTZ AI Tracking Camera User Manual...
-
Page 29: P/T/Z
Depth of Field: Only effective for remote controller, On/ Off; When zoom in, the PT control speed by remoter will become slow), Zoom Speed: Set the zoom speed for remote controller,1~8 Image Freezing: On/Off PTZ AI Tracking Camera User Manual... -
Page 30: Video Format
Camera Version: Display camera version information AF Version: Display the focus version information Lens: Display the lens zoom 3.5.7 Restore Default Move the pointer to the (RESTORE DEFAULT) in the Main Menu, click the【HOME】and enter the (RESTORE PTZ AI Tracking Camera User Manual... - Page 31 Note: If the address of former remoter is not 1 but another one from 2,3,4,the corresponding camera address will restore to 1 when all parameters or system parameters are restored. User should change the remoter address to be 1 (press No.1 according to the camera so to get normal operation ) PTZ AI Tracking Camera User Manual...
-
Page 32: Chapter 4 Ordering Codes
RGB12X-SAI-WH with 12X zoom and 3G SDI output 981-0011-06-0 RGB20X-SAI-WH with 20X zoom and 3G SDI output 981-0011-07-0 RGB12X-HAI-WH with 12X zoom and HDMI/USB3.0 output 981-0011-08-0 RGB20X-HAI-WH with 20X zoom and HDMI/USB3.0 output 291-0001-12-0 Bracket Mount PTZ AI Tracking Camera User Manual... -
Page 33: Chapter 5 Support
Chapter 5 Support 5.1 Contact us PTZ AI Tracking Camera User Manual... -
Page 34: Camera Maintenance And Troubleshooting
Click "Start" and select "Run" and then type “cmd” in the computer;Click "OK" then turn on a DOS command window to enter ping 192.168.5.163. Press the Enter key to appear message as follows: Description network connection is normal PTZ AI Tracking Camera User Manual... - Page 35 PTZ AI Tracking Camera User Manual...
-
Page 36: Chapter 6 Appendix
SDI Model: SDI, LAN, 2-channel 3.5mm linear audio input, RS232 (input) HDMI/USB 3.0 Model: HDMI (support video and audio output), USB3.0, LAN, 2-channel 3.5mm linear audio input, RS232 (input) Network port 100M internet access (10/100BASE-TX) 5GWiFi(optional), support network VISCA control protocol PTZ AI Tracking Camera User Manual... -
Page 37: Visca Protocol List
Command packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera address + 8 Error Messages Command packet Note PTZ AI Tracking Camera User Manual... -
Page 38: Camera Control Command
8x 01 04 44 00 00 0p 0q FF pq: B Gain Full Auto 8x 01 04 39 00 FF Automatic Exposure mode CAM_AE Manual 8x 01 04 39 03 FF Manual Control mode PTZ AI Tracking Camera User Manual... - Page 39 8x 01 04 3F 02 pq FF 8x 01 04 61 02 FF CAM_LR_Reverse Image Flip Horizontal ON/OFF 8x 01 04 61 03 FF CAM_PictureFlip 8x 01 04 66 02 FF Image Flip Vertical ON/OFF PTZ AI Tracking Camera User Manual...
- Page 40 8x 01 06 01 VV WW 02 02 FF ZZZZ: Tilt Position Stop 8x 01 06 01 VV WW 03 03 FF AbsolutePositio 8x 01 06 02 VV WW 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF PTZ AI Tracking Camera User Manual...
-
Page 41: Inquiry Command
50 00 00 0p 0q FF pq: Aperture Gain y0 50 00 FF CAM_PictureEffectModeInq 8x 09 04 63 FF y0 50 04 FF B&W p: Memory number last CAM_MemoryInq 8x 09 04 3F FF y0 50 0p FF operated. PTZ AI Tracking Camera User Manual... - Page 42 8x 09 06 11 FF y0 50 ww zz FF Tilt Max Speed y0 50 0w 0w 0w 0w wwww: Pan Position zzzz: Pan-tiltPosInq 8x 09 06 12 FF 0z 0z 0z 0z FF Tilt Position PTZ AI Tracking Camera User Manual...
-
Page 43: Pelco-D Protocol Command List
Address 0x00 0x12 Pan Speed Tilt Speed 0xAF Zoom In 0xA0 Address 0x00 0x20 0x00 0x00 0xAF Zoom Out 0xA0 Address 0x00 0x40 0x00 0x00 0xAF Stop 0xA0 Address 0x00 0x00 0x00 0x00 0xAF PTZ AI Tracking Camera User Manual... -
Page 44: Terms & Definitions
●U-SDI:Technology for transmitting large-volume 8K signals over a single cable. a signal interface called the ultra high definition signal/data interface (U-SDI) for transmitting 4K and 8K signals using a single optical cable. The interface was standardized as the SMPTE ST 2036-4. PTZ AI Tracking Camera User Manual... - Page 45 Nippon Telegraph and Telephone. SC is a push-pull coupling type of connector and has a 2.5mm diameter. Nowadays, it is used mostly in single mode fiber optic patch cords, analog, GBIC, and CATV. SC is one of the most popular options, as PTZ AI Tracking Camera User Manual...
- Page 46 ●HDBaseT: A video standard for the transmission of uncompressed video (HDMI signals) and related features using Cat 5e/Cat6 cabling infrastructure. ●ST2110: A SMPTE developed standard, ST2110 describes how to send digital video over and IP networks. Video is transmitted uncompressed with audio and other data in a separate streams. PTZ AI Tracking Camera User Manual...
- Page 47 OSC is transported via UDP packets between devices connected on an Ethernet. ●Brightness： Usually refers to the amount or intensity of video light produced on a screen without regard to colour. Sometimes called black level. PTZ AI Tracking Camera User Manual...
- Page 48 2K HDTV standard. A UHD 4K display has aphysical resolution of3840x2160 which is four times the area and twice both the width andheightofaHDTV/FullHD(1920 x1080) video signal. ●EDID: Extended Display Identification Data. EDID is a data structure used to communicate video display PTZ AI Tracking Camera User Manual...
-
Page 49: Revision History
All information herein is © Xiamen RGBlink Science & Technology Co Ltd. excepting where noted. RGBlink®is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd. While all efforts are made for accuracy at time of printing, we reserve the right to alter, vary or otherwise make change without n otice.
