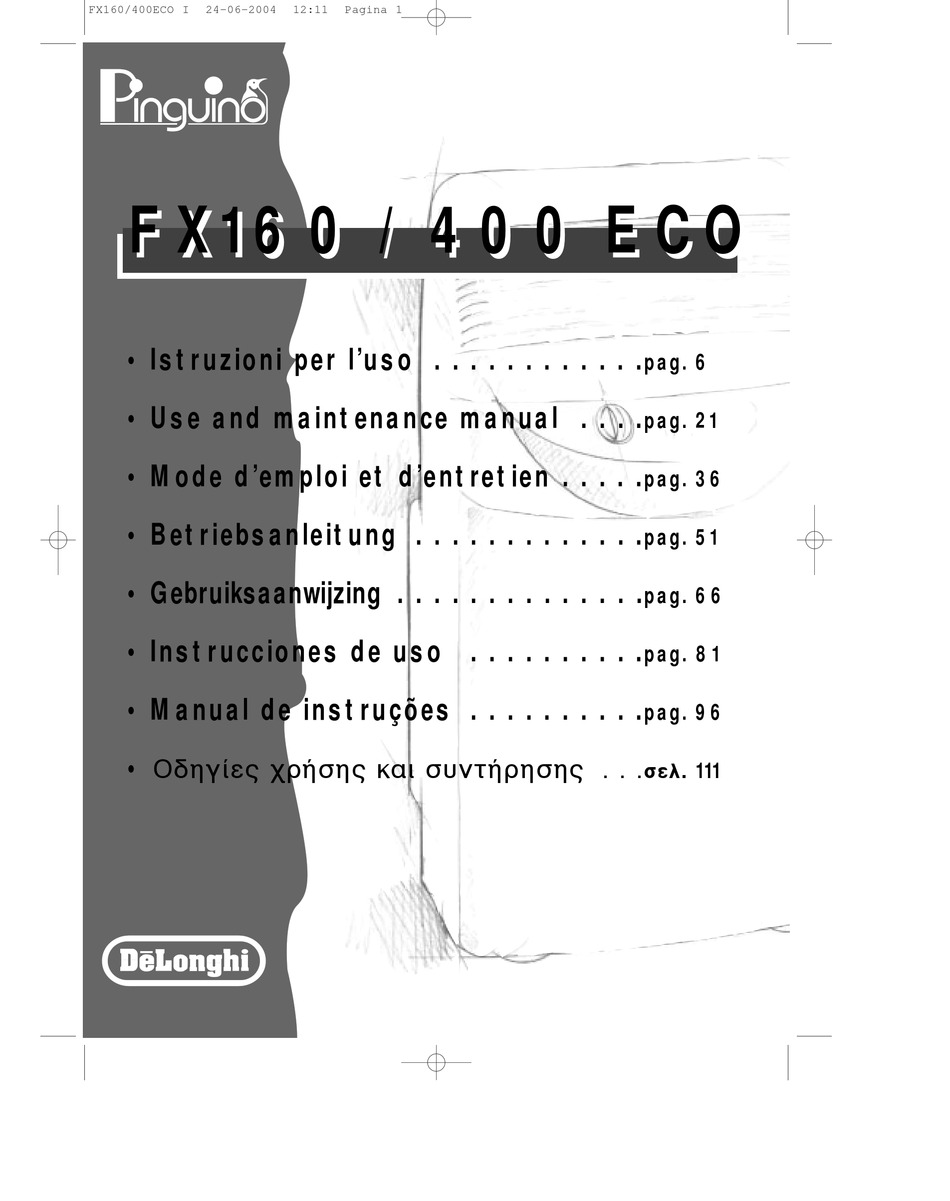

- Page 1 FX160/400ECO I 24-06-2004 12:11 Pagina 1 F X 1 6 0 / 4 0 0 E C O F X 1 6 0 / 4 0 0 E C O • Istruzioni per l’uso ... . pag.
- Page 2 FX160/400ECO I 24-06-2004 12:11 Pagina 2 entile Cliente, La ringraziamo per aver scelto un prodotto De’Longhi, il leader mondiale nella costruzione dei climatizzatori portatili. Anni di esperienza in tutto il mondo ci consentono di migliorare costantemente la qualità e le presta- zioni di Pinguino e SuperPinguino.
- Page 3 FX160/400ECO I 24-06-2004 12:11 Pagina 4 De s c r i z i o n e • De s c r i p t i o n • De s c r i p t i o n • B e s c h re i b u n g • B e s c h r i j v i n g •...
- Page 4 FX160/400ECO I 24-06-2004 12:11 Pagina 5 De s c r i z i o n e • De s c r i p t i o n • De s c r i p t i o n • B e s c h re i b u n g • B e s c h r i j v i n g •...
-
Page 5: Important Safeguards
FX160/400ECO GB 24-06-2004 11:55 Pagina 21 Important Safe-guards • This appliance has been manufactured to cool and de-humidify domestic environments and should not be used for other purposes. • It is dangerous to alter or modify the unit's characteristics in any way. •... - Page 6 FX160/400ECO GB 24-06-2004 11:55 Pagina 22 How does your pinguino work uring the summer, optimum comfort is achieved with a temperature of between 24 and 27˚C and about 50% relative humidity. An air conditioner removes moisture and heat from the room where it is located. One advantage of portable air conditioning units over fitted models is that they can be moved from one room to another in the home or even transferred between different buildings.
-
Page 7: Description Of The Appliance
FX160/400ECO GB 24-06-2004 11:55 Pagina 23 Description of the appliance DESCRIPTION MODEL FX160ECO DESCRIPTION MODEL FX400ECO 1) Air discharge grill 1) External Unit 2) Control Panel 2) Air discharge grill 3) Wheels 3) Control Panel 4) Handles 4) Internal/external unit connection sheath 5) Housing for air exhaust hose 5) Wheels 6) Cord winder... - Page 8 FX160/400ECO GB 24-06-2004 11:55 Pagina 26 S e t t i n g u p (Mod. FX400ECO) PREPARING THE INTERNAL UNIT (1) USING THE QUICK COUPLINGS As an alternative to the methods described Install the appliance inside the room to be air above, the sheath connecting the external conditioned, usually near a window or a peri- and internal units can be passed through a 6...
- Page 9 FX160/400ECO GB 24-06-2004 11:55 Pagina 27 S e t t i n g u p (Mod. FX400ECO) 7) Undo the two self tapping screws holding 2) Screw support the guard and remove the electrical con- blocks (13) to the exter- nection block.
-
Page 10: Description Of The Control Panel
FX160/400ECO GB 24-06-2004 11:55 Pagina 28 Description of the control panel THE DISPLAY A. ON/OFF Button B. Function Button Air-conditioning, dehumidifying, ventila- tion C. Air-conditioning indicator D. dehumidifying indicator E. Purification indicator F. Increase temperature button / increase operating time button G. -
Page 11: Switching The Appliance On
FX160/400ECO GB 24-06-2004 11:55 Pagina 29 O p e r a t i o n SWITCHING THE APPLIANCE ON Connect the appliance to the mains supply. On the display two lines will appear indicating Stand-by mode Press the ON/OFF button (A) and then the MODE button until the relevant function indicator appears viz.: Indicator C : air-conditioning... -
Page 12: Programming The Timer
FX160/400ECO GB 24-06-2004 11:55 Pagina 30 O p e r a t i o n Once the dehumidifying function has been selected, the fan speed cannot be changed. The appliance will automatically “Silent” select the correct fan mode. speed VENTILATION/PURIFICATION This is ideal for dusty or polluted areas;... -
Page 13: Self-Diagnosis
FX160/400ECO GB 24-06-2004 11:55 Pagina 31 O p e r a t i o n ROOM TEMPERATURE BUTTON (MODEL FX400ECO) When pressing this button (R), the room temperature is shown on the display for a few seconds. It then reverts to showing the current mode. The room temperature cannot be displayed while in Stand-by mode. - Page 14 FX160/400ECO GB 24-06-2004 11:55 Pagina 32 R e c o m m e n d a t i o n s • Do not install the heater in humid environ- Follow these recommendations to achieve maximum efficiency from your air conditio- ments.
- Page 15 FX160/400ECO GB 24-06-2004 11:55 Pagina 33 C l e a n i n g Before cleaning or maintenance, switch off the appliance by pressing the ON/OFF button (A) and always unplug it from the mains supply. Dust filter CLEANING THE EXTERNAL UNIT We recommend cleaning the appliance with intake grille a slightly damp cloth.
-
Page 16: Troubleshooting
FX160/400ECO GB 24-06-2004 11:55 Pagina 34 Troubleshooting PROBLEM CAUSES REMEDY The air-conditioner • the power is off • the appliance is not plugged in • Plug it in does not work (Mod. FX160ECO). • The exhaust hose is twisted • Position exhaust hose correctly The air-conditioner •... -
Page 17: Technical Specification
FX160/400ECO GB 24-06-2004 11:55 Pagina 35 Technical specification TECHNICAL SPECIFICATION FX160 ECO Power supply see rating plate OPERATING LIMITS Max. absorbed power Room temperature 21 - 35°C in air conditioning “ Max. absorbed power when dehumidifying “ Refrigerating capacity* “ FX400 ECO Number of fan speeds 2 + silent...
