Summary of Contents for ELC dmXLAN node6x

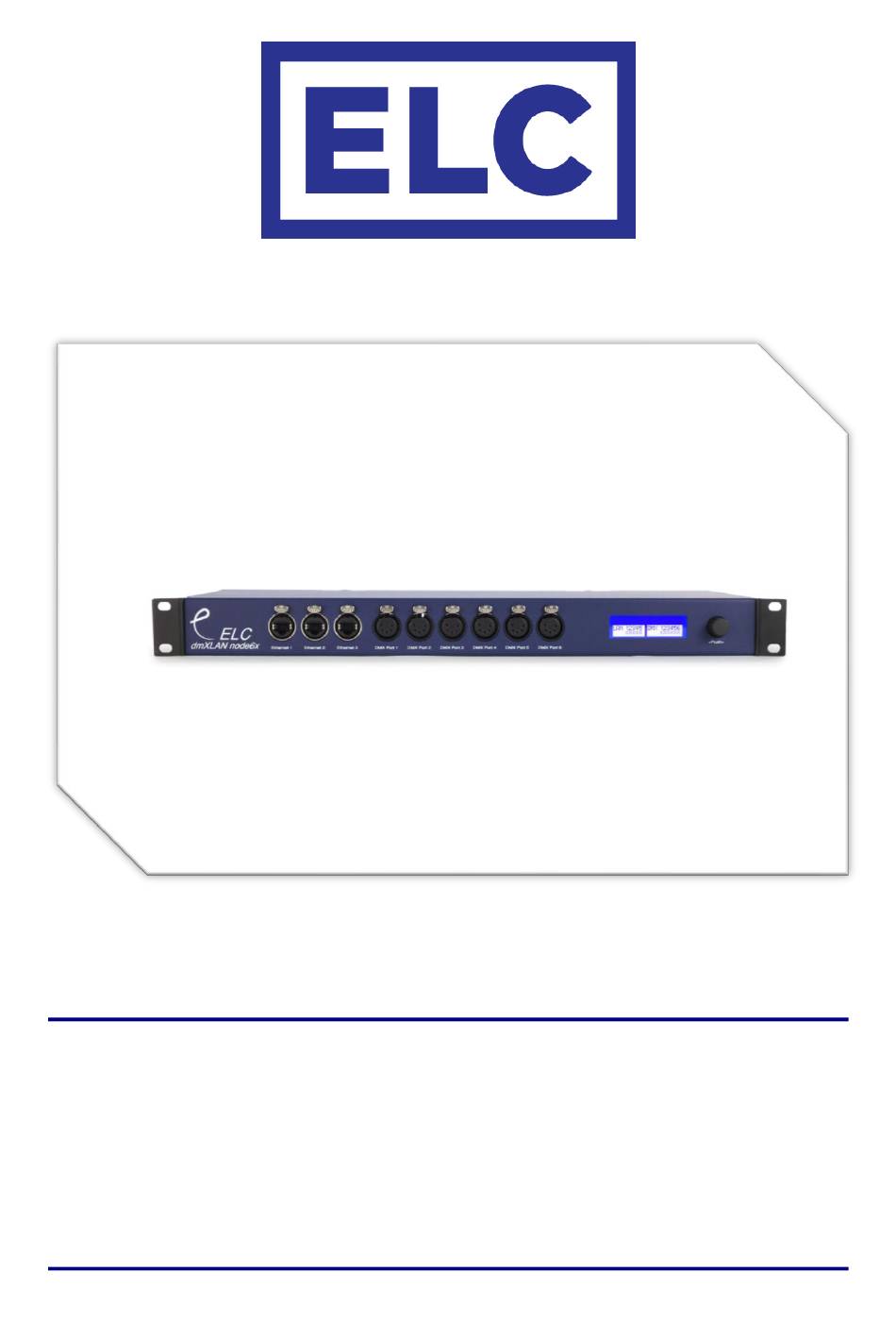

- Page 1 User Manual...
- Page 2 __________________________________________________________________________________ ELC dmXLAN node6x User Manual...

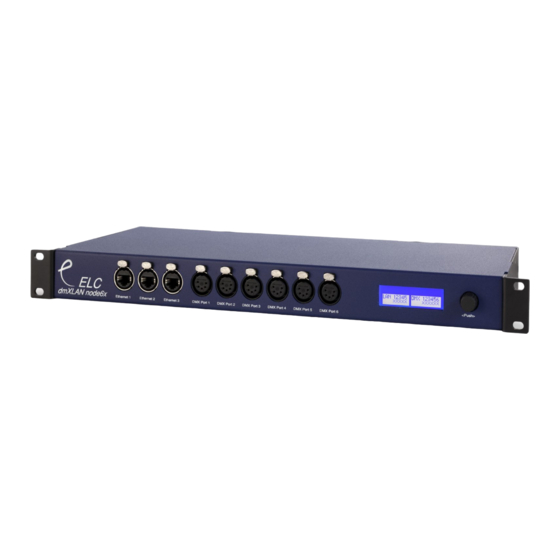

- Page 3 ELC dmXLAN software available for download at www.elclighting.com. The dmXLAN node6x has no fans and is therefore silent in operation. There is also a version of the node6x available with fully-isolated DMX ports (DLN6X-FI). Both versions can be ordered with optional Power over Ethernet for the three Ethernet sockets on the front panel.
- Page 4 The ports also have internal 120 Ohm terminator resistors and line biasing for RDM. This product may only be used for controlling dimmers and moving lights. Using the product outside of these specifications will remove all responsibility from the supplier. __________________________________________________________________________________ ELC dmXLAN node6x User Manual...
-
Page 5: Operation
Operation The dmXLAN node3 can be operated in 2 ways; either through the front panel or the dmXLAN control software. The software can be downloaded from the ELC website at www.elclighting.com. The front panel control options will be explained below. - Page 6 Select mode Edit mode In select mode: Encoder +/- Select different item Press Encoder Go to Edit mode In Edit mode: Encoder +/- Change the value of the item Press Encoder Go to Select mode __________________________________________________________________________________ ELC dmXLAN node6x User Manual...
- Page 7 The Resend option can be used to send the merged signal onto the network again as a new universe. This is helpful when – for example – 3 universes need to be merged together. __________________________________________________________________________________ ELC dmXLAN node6x User Manual...
- Page 8 The Rate option can be used to set the rate of the dmXLAN node6x to either; • Sync the DMX output is synchronized to the universe data on the network. This is the fastest (lowest latency) setting. Note: some equipment might not cooperate with this setting very well.
-
Page 9: Network Options
The backlight can be set to always be on or to time out after a chosen time interval. Factory defaults Restore the settings of the node6x to the default values. Technical specifications Power: 100-240 VAC 47-440 Hz 10VA max Dimensions: 485 x 170 x 45 mm (19" 1U) Weight: 2.5 kg __________________________________________________________________________________ ELC dmXLAN node6x User Manual... -
Page 10: General Safety Instructions
In all of the previous conditions, disconnect the main plug immediately and call your distributor or technical support! __________________________________________________________________________________ ELC dmXLAN node6x User Manual... - Page 11 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE __________________________________________________________________________________ ELC dmXLAN node6x User Manual...
-
Page 12: Declaration Of Conformity
All signal input- and output connections must be shielded and the shielding must be connected to the ground of the corresponding plug. Gemert, February 16, 2018 ing. Joost van Eenbergen __________________________________________________________________________________ ELC dmXLAN node6x User Manual...
