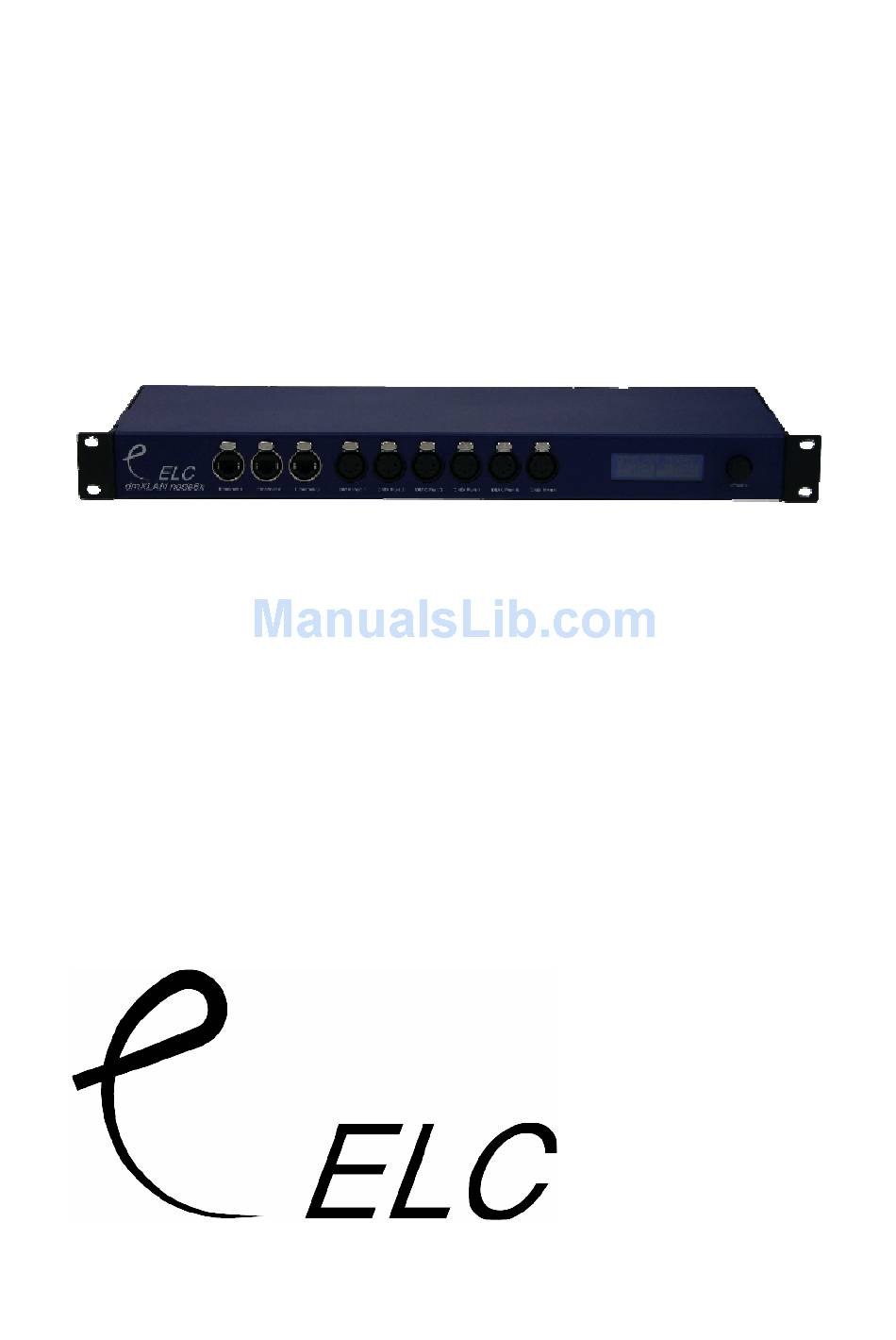

- Page 1 6-port DMX Ethernet node, with built in 5-port Ethernet switch Users manual...
- Page 2 6-Port DMX Ethernet node with integrated 5-port Ethernet switch. Front panel: The front panel has 3 Ethernet 10/100 MBit ports on Neutrik Ethercon and 6 bi-directional DMX ports (Male or Female on order). Next to the connectors there is a User Interface with a graphical LCD screen and a rotary encoder with push function.
- Page 3 Operation The dmXLAN node6 can be operated in 2 ways. Either through the front panel or the dmXLAN control software. The software can be downloaded from the website at www.elclighting.com Control via the front panel. Main display In the LAN box, the status of all 5 Ethernet ports is shown. The DMX box shows the 6 statuses of the ports.
- Page 4 Press Encoder goto Select mode In View DMX mode, the screen shows the DMX values in the selected mode: 120 bars 40 bars decimal or percentage Use the encoder to change the DMX address. Press the Encoder to go back to the View Menu. DMX port menu Select mode Edit mode...
-
Page 5: General Information
255.0.0.0 and the ip address between 2.0.0.1 and 2.254.254.254. General Information CE – Product The dmXLAN node6x permits to the CE requirements set up by the European Community. This can be recognized by this label on the outside of the product. Technical Specifications: Power:...
