Summary of Contents for Whirlpool AKR273/IX

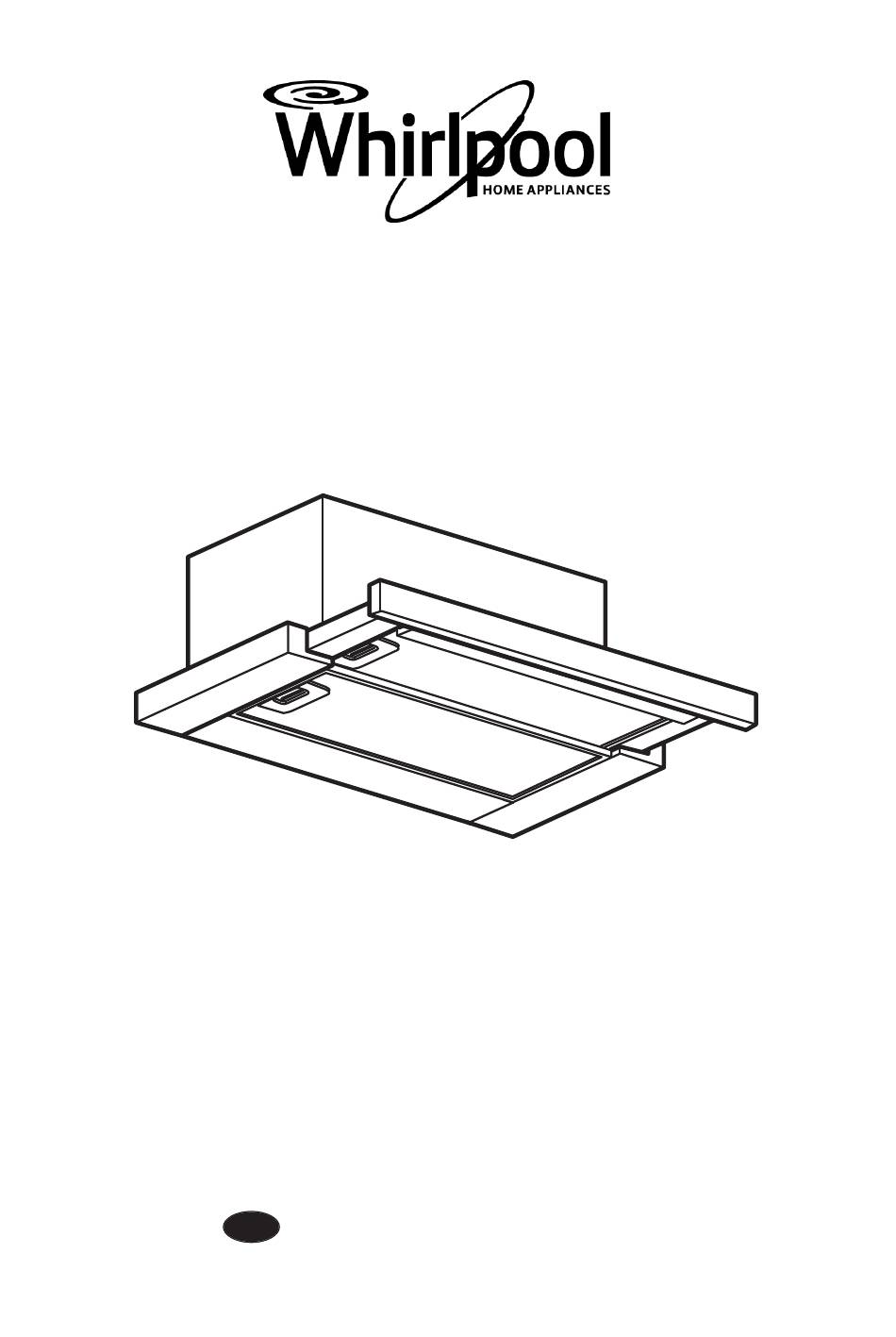

- Page 1 AKR273/IX User and maintenance manual...
- Page 2 IMPORTANT INSTRUCTIONS FOR SAFETY YOUR SAFETY AND THAT OF OTHERS IS HIGHLY IMPORTANT. This manual and the appliance itself provide important safety warnings, to be read and observed at all times. This is the attention symbol, pertaining to safety, which alerts users to potential risks to themselves and others. All safety warnings are preceded by the attention symbol and the following terms: DANGER: indicates a hazardous situation which, if not avoided, will cause serious injury.
-
Page 3: Preparation For Installation
INSTALLATION After unpacking the appliance, check for any damage caused during transport. In case of problems, contact the dealer or the After-Sales Service. To avoid any damage, it is advisable to only remove the appliance from the polystyrene base just before installation. PREPARATION FOR INSTALLATION WARNING: this appliance is heavy;... -
Page 4: Troubleshooting Guide
TROUBLESHOOTING GUIDE The appliance does not work: • Check the domestic power supply and ensure the appliance is connected to the mains properly. • Switch the hood off and then on again to see if the problem has been resolved. The hood is not extracting satisfactorily: •... -
Page 5: Maintenance
MAINTENANCE - use protective gloves. WARNING: - disconnect the appliance from the power supply. GREASE FILTERS The metal grease filter has an unlimited life and should be cleaned once a month by hand or in a dishwasher at low temperature and with a short cycle. Cleaning in a dishwasher may cause discoloring of the grease filter, but its filtering efficiency is unaffected. -
Page 6: Material Supplied
MATERIAL SUPPLIED Remove all the components from the packets. Check that all the components are included. • Hood assembled with motor, lamps and grease filters installed. • Instructions for assembly and use • 1 power supply cable • 1 allen key •... - Page 7 INSTALLATION - ASSEMBLY INSTRUCTIONS The instructions below, to be carried out in the order in which they are numbered, refer to the figures (with the same step numbers) given on the last pages of this manual. Feed through the power supply cable and secure the cable clamp (using n.1 screw 3.5x9.5). Install the collar on the exhaust outlet hole with 2 screws.
- Page 8 DESCRIPTION AND USE OF HOOD 1. Control panel. 2. Grease filter. 3. Grease filter spring release handles. 4. Lighting. 5. Pull-out steam deflector. 6. Extractor unit body. Control panel 1. Light ON/OFF button 2. Timer ON/OFF button: time-delayed switch-off of the selected extraction speed (power): Extraction speed (power) 1: 20 minutes Extraction speed (power) 2: 15 minutes Extraction speed (power) 3: 10 minutes...
- Page 15 Printed in Italy 03/2014 5019 600 00935 LIB0098697 Ed. 03/14...
