Idea LUA4C Quick Start Manual

LUA4C
Install Column Loudspeaker
LUA4C is a compact and versatile Mid/High Frequency loudspeaker
featuring four 3" wide band high power transducers. This column
loudspeaker features all the expected benefits of this kind of driver
arrangement: very focused and controlled directivity, extremely natural
and defined midrange reproduction and surprising throw of acoustic
energy for such contained dimensions.
For installations requiring very refined audio reproduction and superior
directivity control, it features a 8/32 Ohm selectable impedance switch,
that makes the LUA4C ideal for distributed audio solutions in highly
reverberant spaces or in locations where speech intelligibility is paramount.
IDEA provides for LUA4C recommended DSP settings for different
processing platforms, and with many different IDEA subwoofers,
particularly with BASSO10, BASSO12i and BASSO12t.
For portable sound reinforcement applications, providing rich and powerful
solutions for mobile entertainers, small music ensembles rehearsal and
live performances, DJs and high-impact corporate presentations, LUA4C is
best configured as LUA4C System, pairing with the BASSO12 M, active high
performance 12" subwoofer that provides DSP processing and power (by
Powersoft) to the LUA4C.
LUA4 C is available in all RAL colours as well as in weatherized versions
(with optional micro-perforated protection grill), and offers both adjustable
angle wall-mount and pole-mount accessories.
OPTIONAL INSTALLATION ACCESSORIES
LUA4C feature optional wall-mount dedicated accessort for ease of
installation in distributed audio environments in order to easily integrate
with the venue, as well as a pole-mount accessory for easy setup in mobile
sound applications.

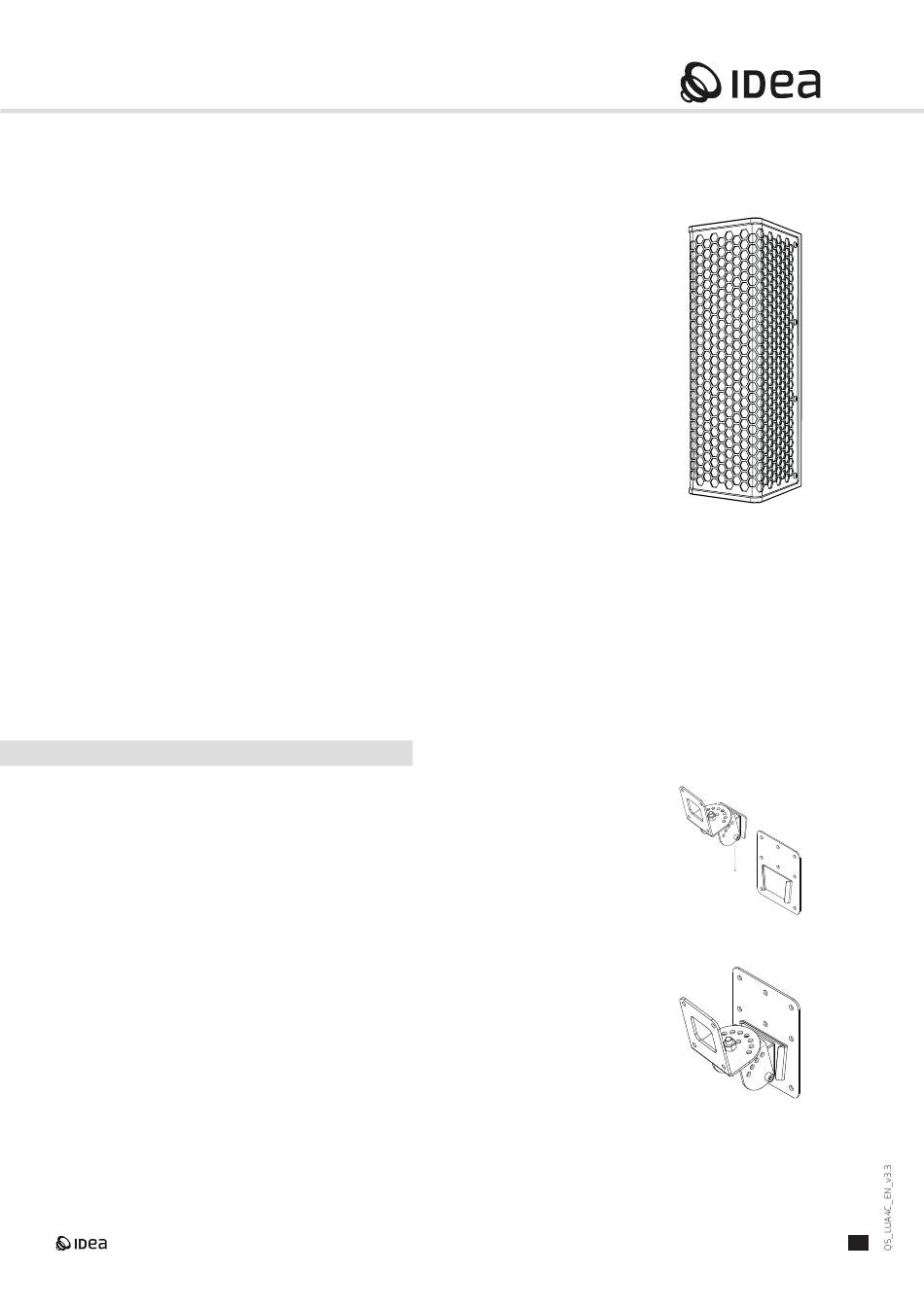

The U-Bracket WM-L48C (shown in the image on the right) uses the
cabinet's four M8 insert to attach the bracket and M6 bolts to to lock the
desired angulation points with 7 horizontal positions and 4 vertical tilt
angles
Screw the back plate to the wall, fit the anglulation parts to the cabinet
and slide down the LUA4C with the accesory into the back plate brackets to
assemble both parts. This easy, convenient installation process saves time
at the setup operation while allowing for precise vertical and horizontal
positioning of the loudspeaker.
The PA-LUA48 optional accessory couples to the bottom side of the
cabintet with 4 M6 insterts and features a 36-mm pole mount cup to use
with any standard 35-mm distance rod.
Quick Start Guide
1
