Idea LUA15 Quick Start Manual

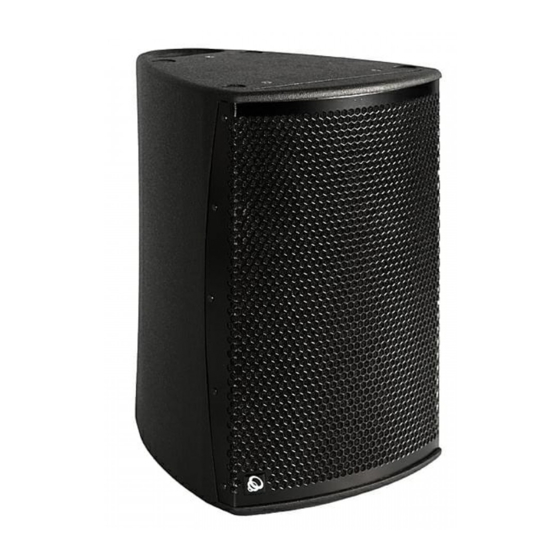

LUA15
2-Way Passive Loudspeaker
LUA15 is a high-resolution loudspeaker with unique design ideal for high quality
music playback in AV portable systems and distributed audio installed solutions.
Featuring premium European high-efficiency transducers, LUA15 HF assembly
integrates a 1,75˝ compression driver coupled with IDEA's proprietary Vertical-
Horizontal symmetrical wide coverage horn and the LF section features a 15˝ woofer
with two frontal firing ports that deliver full-range audio playback (capable of
extending LF frequency response down to 55 Hz) out of this rugged and durable 15
mm birch plywood cabinet with the exclusive design finish.
LUA15 matches the requirements for A/V and basic professional sound
reinforcement applications as well as installations that benefit from a relatively
compact design that delivers, in the mid-field at full power or in open spaces at BGM
levels, sufficient LF response without subwoofers.
The curved-cabinet LUA15 has been designed for easy and straightforward setup
and installation with a bottom 35mm pole mount socket and 2xM8 inserts to use
with the optional U-bracket. Wall-mounted in half space LUA15 can also be used in
fixed installations as full-range sound system (thanks to the dual front-firing ports)
at BGM levels, or to be always surprisingly powerful in combination with BASSO
subwoofers.
Although LUA15 can perfectly work as standalone systems, the integration of LF
reinforcement subwoofers clearly benefit the system performance. LUA15 couples
seamlessly with BASSO Series subwoofers delivering serious power density and
astonishing natural, pleasant sonic quality that make this configuration an ideal
choice for those environments demanding for unobtrusive, stylish but high quality,
powerful solutions.
INSTALLATION ACCESSORIES
LUA15 is fitted with 6 threaded M8 inserts for hung permanent installations
as well as bottom 36 mm pole-mount socket that serves for both pole mount
configurations onto a BASSO Series subwoofer and for wall-mount installations with
the WM-L15-V optional accessory
LUA15 different configurations
Quick Start Guide
WM-L15-V
Optional Wall-Mount Accessory
1
