Contents
Product Overview ...................................................... 2
Product Connection .................................................... 5
Driver and Setting ..................................................... 8
........................................................ 8
.................................................... 11
.................................................... 18
....................................................... 23
.......................................................... 27
Digital Pen Basic Operation .............................................. 31
Specifications ........................................................ 35
Troubleshooting Solutions .............................................. 36
.................................................... 2
................................................ 3
................................................ 10
KD200
1 / 37

Advertisement

Table of Contents
loading

Related Manuals for Huion KD200

Summary of Contents for Huion KD200

  • Page 1: Table Of Contents

    KD200 Contents Product Overview ............2 Tablet Introduction ............ 2 Product and Accessories ..........3 Product Connection ............ 5 Driver and Setting ............. 8 Install Driver ............8 Driver Interface Preview ..........10 Pen Tablet Setting ............ 11 Digital Pen Setting ............

  • Page 2: Product Overview

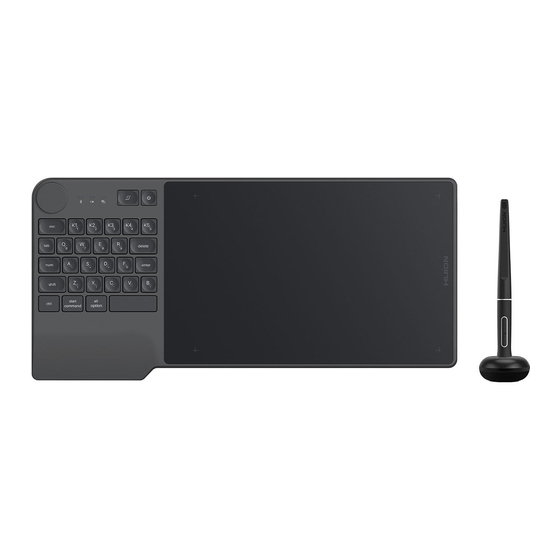

    Product Overview Tablet Introduction Thanks for choosing HUION INSPIROY Keydial creative pen tablet. This is a new generation of professional battery-free drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience.

  • Page 3: Product And Accessories

    KD200 Note: The pictures in the User Manual are for reference only. Product and Accessories Please see the detailed product introduction. *Press Keys 3 / 37...
  • Page 4 KD200 1. Dial: While the Dial mode, features are programmable, with default functions being canvas size adjustment, brush size adjustment and canvas scrolling. 2. Long press to call up the function menu /Serve as Enter Button. 3. Press keys that are programmable on the driver.

  • Page 5: Product Connection

    KD200 Product Connection The tablet supports the connection of a computer and a mobile phone. Wired Connection, Bluetooth Connection and Navo Receiver Connection. Imporantly, you can judge the status of the device by observing the color of the light. Indicator...
  • Page 6 Connect the tablet to your computer with USB cable. Please follow the steps below: 1. Take out the USB cable from the package, then connect tablet to your computer. 2. Please download the Pen Driver from our website:Driver-KD200. 3. Open the driver interface, the device picture will be displayed on the interface, indicating that the tablet is successfully connected to the computer.You can start use the tablet.
  • Page 7 KD200 1. Activate Bluetooth on PC or any Android device. 2. Long press the power button for 2 seconds till the blue light flashes to power on the pen tablet. 3. Have the device Inspiroy Keydial connected via Bluetooth pairing, Please hold the key combos Shift+Ctrl+Start Command to adjust the imaging on your phone in case of display distortion.

  • Page 8: Driver And Setting

    KD200 Driver and Setting Install Driver 1. Please choose the correct driver for your device from our website: Driver-KD200. 2. Click Driver-KD200 to download it. 3. Follow the instructions to complete the installation. Note: 1. Before installing driver, please close all graphic software and antivirus program.
  • Page 9 KD200 9 / 37...

  • Page 10: Driver Interface Preview

    KD200 Driver Interface Preview 1. Pen Tablet Pen Tablet function setting interface, the users can set the tablet function on this interface, such as Press Key, Dial and Working Area. See Section 2. Digital Pen The users can set the Pen function on this interface. About Press Key, Mode selection, Pressure Sensitivity Adjustment and Pressure Test.

  • Page 11: Pen Tablet Setting

    KD200 Huion Store is where you can get the latest information about the product such as its FAQ or sales promotion. In addition, you can also purchase Huion’s other products or accessories here. 4. Add Programs 1. Some programs which have already been opened will appear for you to choose from after clicking Add a Program on the screen.
  • Page 12 KD200 You can customize the functions of these press keys according to your own habits, and you can uncheck "Enable press keys" in the lower left corner to turn off these functions. Place the cursor over one of the buttons on the screen of your computer to check its default value.
  • Page 13 KD200 Run Program Click Browse and select the program that you want to run quickly. After that, pres System Application You can apply these functions to press keys: Lock the Screen, Sleep, Power Off, Multimedia You can apply these functions to press keys: Previous Song, Next Song, Play/Paus...
  • Page 14 KD200 picture 1 picture 2 picture 3 Working Area Select the Working Area tab to define the relationship between pen movement on the tablet and cursor movement on the monitor screen. By default the entire active area of tablet maps to the entire monitor. If more than one monitor is in use and you are in extended mode, you need to choose the related monitor on the driver interface which you are going to map to.
  • Page 15 KD200 [2] Screen Ratio: The ratio of the active pen tablet area depends on that of the display device, which as a general rule, is 16:9. In Screen Ratio mode, these two ratios keep the same. [3] Custom Area: 1> Enter coordinate values.
  • Page 16 KD200 picture2 16 / 37...
  • Page 17 KD200 picture3 2. Rotate Working Area By changing the direction of the tablet to adapt to the left and right hand operation. You can rotate the tablet by 0°,90°,180° or 270°. 3. Dial Function Setting Click the Dial to set the function of the dial controller. The default functions are “Zoom in/out”, “Adjust Brush Size”, and “Scroll Up/Down”.

  • Page 18: Digital Pen Setting

    KD200 Refer to the table below to get detailed information of the functions. Default Functions include Zoom in/out, Adjust Brush Size, and Scroll Up/Down. Multimedia Functions are Previous Song/Next Song and Volume Settings. Customize the Feature Click on the input boxs (Clockwise and Anticlockwise) and enter valid key c to implement the settings.
  • Page 19 KD200 2. Pen Nib Activity The pen nibs can be set to be Valid/Invalid as needed. Click the drop-down option to select. In Valid mode, the digital pen can be used normally. In Invalid mode, the digital pen has cursor movement, but cannot complete the specified action.
  • Page 20 KD200 3. Enable Windows ink Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office, Windows Whiteboard, Adobe Photoshop CC, SketchBook 6 and so on. 20 / 37...
  • Page 21 KD200 4. Mode Selection Game Mode: This mode is specially designed for OSU games. OSU game users can turn on the "Game Mode" to increase the cursor's following speed when the pen nib moves quickly. It is recommended for non-OSU game users.
  • Page 22 KD200 5. Pressure Sensitivity Adjustment You can adjust the pressure sensitivity level by dragging the slider in the pressure factor setting box according to your usage habits. Click the redo button at the top right to revert to the default pressure.

  • Page 23: Driver Setting

    KD200 Driver Setting 1. Device You can view the information of the firmware and the connected product here. Device Diagnosis Section. 23 / 37...
  • Page 24 KD200 2. Backup The Driver can import and export your custom settings, which helps to avoid repeated settings when launching a different program. 24 / 37...
  • Page 25 KD200 3. General Setting [1] Language: Click the drop down menu to select a language. [2] Color: You can select the color of the Driver interface among Dark, Blue, and Light according to your preference. [3] Start Menu: Click to enable or disable AutoStart, New Message Alert, Automatic Updates.
  • Page 26 KD200 4. About Users can check the Driver version number here. Click Check for Updates to view the latest Driver version and then follow the prompts to update the Driver if needed. 26 / 37...

  • Page 27: Diagnose

    KD200 Diagnose Press Key Test 1. Click "Diagnose", and select the device you want to test from the “Device Info” 2. Press these buttons one at a time to test them. Each time you press a key, its number will be displayed on the left next to the “Press Key”.
  • Page 28 KD200 Pen Test 1. Click “Diagnose”, you will see the below interface, hold the pen within 10mm (0.4 inches) from the surface of the tablet, and you will see relevant data appearing in the “Device Info”. Move the pen across the surface of the tablet, and the pressure value will change accordingly.
  • Page 29 KD200 Touch Test Note: If the basic touch functions (such as moving the cursor with your finger) can be used normally, while other touch- functions cannot, please reinstall the driver. 1. Move your finger on the surface of the tablet to move the cursor.
  • Page 30 KD200 Dial Test 1.Click “Diagnose”, and select the device you want to test. 2.Slide your finger along the side of the Dial, and check whether the “Dial/Touch” indicates the current movement of the finger on the Dial. 30 / 37...

  • Page 31: Digital Pen Basic Operation

    KD200 Digital Pen Basic Operation Note: Picture shown is for illustration purposes only. Hold the Pen Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.
  • Page 32 KD200 Position the cursor Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly. Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.
  • Page 33 KD200 Click Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it. Move Select the object, then slide the pen tip across the screen to move it.
  • Page 34 KD200 Use the side buttons The buttons on the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the tablet active area. You do not have to touch the pen tip to the tablet in order to use the switch.

  • Page 35: Specifications

    KD200 Specifications Here are the product specifications for you to learn more about the Tablet. If you have any questions, please feel free to contact us. The following data will vary in different usage environments and are for reference only.

  • Page 36: Troubleshooting Solutions

    You may have installed other tablet drivers or opened the drawing software when installing the driver. Please uninstall all drivers and close the drawing software, then reinstall the Huion driver. It's better to restart your computer after finishing the installation.
  • Page 37 KD200 If your problem is not resolved, please clickFAQsto view more troubleshooting methods or email us(service@huion.com). 37 / 37...
