KOCOM KVM-624 Operating & Installation Manual

Warranty
To receive after-Sale service, have the following ready
when you contact our branches
1. Name of the product
2. Model number of the product
3. The area of problem
4. Phone number and address at
which you can be contacted.
Warranty Card
PRODUCT
MODEL
DATE PURCHASED
WARRANTY PERIOD
AGENCY ADDRESS
◉ KOCOM Warranties the original purchaser of this product as follows.
1) This product is produced under strict quality control and inspection procedures.
2) If this product breaks down during proper use as a result of product defect, KOCOM
will repair it within one year from date of purchase free of charge.
3) The following cases will be subject to charge, even during warranty period:
a. Breakdown during transport, or through careless treatment, by consumer.
b. Breakdown cause by unauthorized repair, or system modification.
c. Breakdown caused by natural disaster or power disorder.
This manual is based on the date as shown in the right and specifications
are subject to change without notice for quality improvement.
KVM-624 06.09
VIDEO DOORPHONE
KVM-624 Operating Installation Manual
Clear & Bright Picture at Low Light
■ 4" Flat Monitor
■ 7 Wired (Between Monitor & Monitor)
4 Wired (Between Monitor & Camera)
■ Slim Size Camera
■ Wide view angle
■ AC 100V to 240V free Voltage

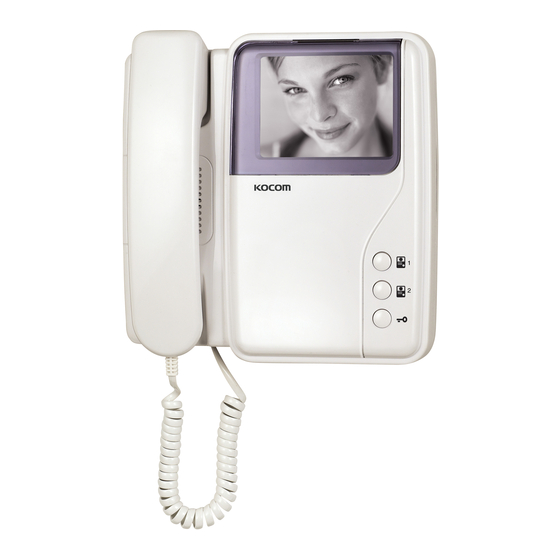

Monitor
KVM-624
4-wires
polarity
7-wires
polarity
4-wires
polarity
※Option
Thank you very much
for purchasing KOCOM
video doorphone.
please read this manual
thoroughly to ensure
correct usage, before
operating
or
Camera Camera
(KC-D33) (KC-MB20)
※Option
Camera Camera
(KC-D33) (KC-MB20)
