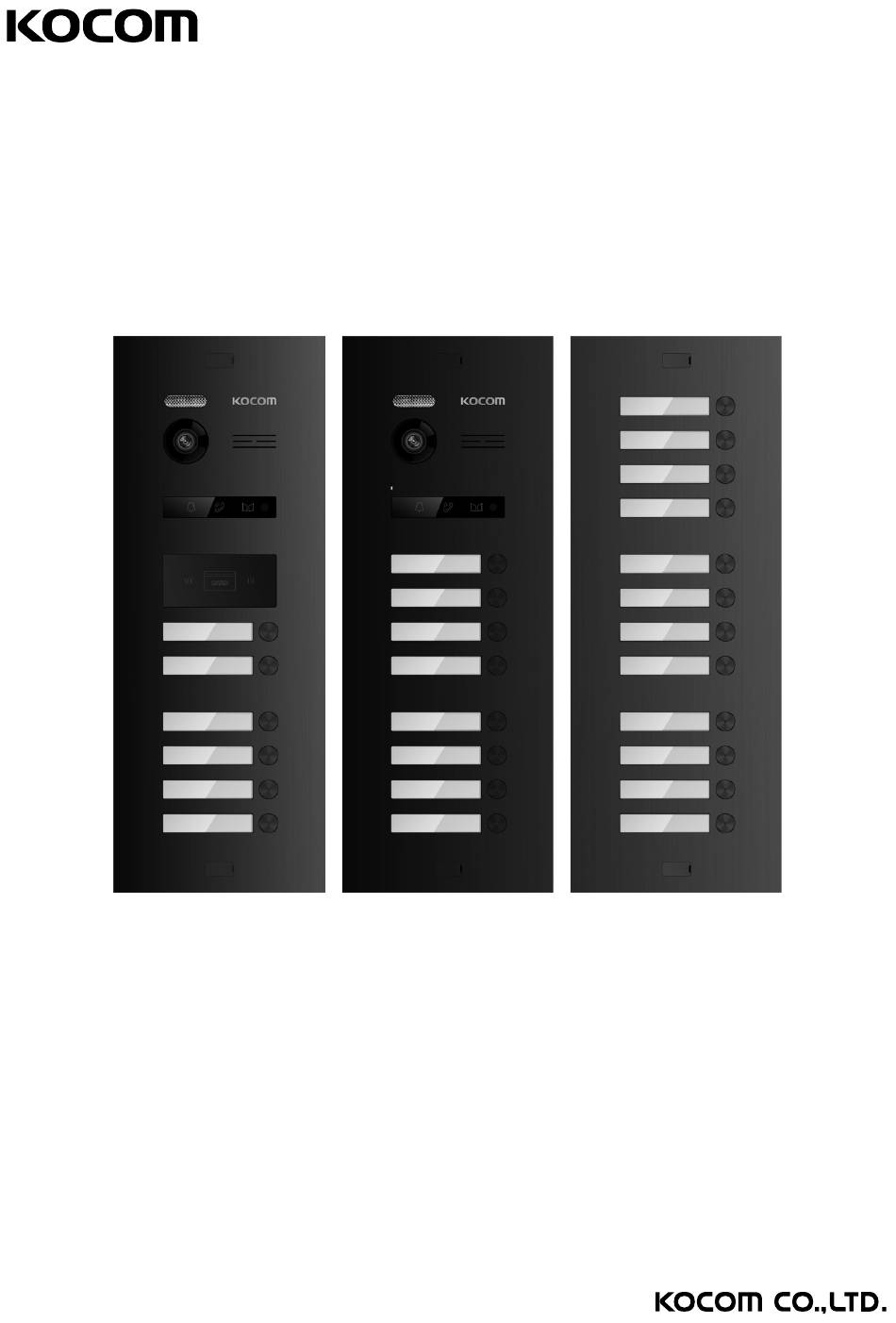

KVL-WR06/KVL-WX08/KEL-WX012

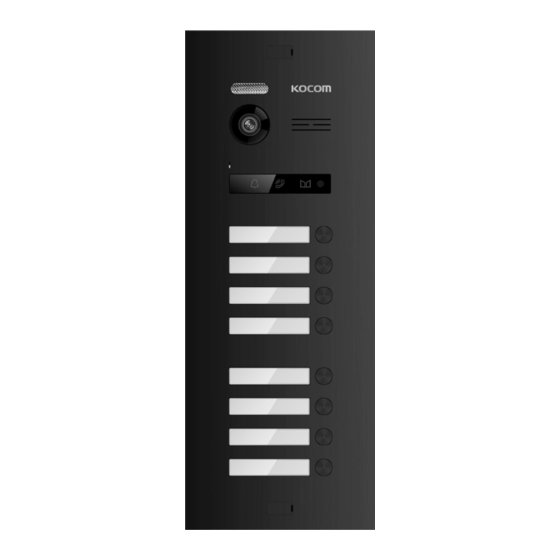

KVL-WR06
■ Automatically opens common gate while communication with house
■ For 6 wire type videophone
■ Keypad backlight function - LED lamp
■ White LED for night detection
■ Connecting upto 32 household
■ Function of two door release (NO,NC)
■ Function of RF ID card for door release
Thank you for purchasing our product.
Read safety instructions and manual carefully before using the product.
MANUAL
[ 6 Wire Lobby Phone ]
KVL-WX08
www.kocom.com
KEL-WX012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KVL-WR06 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KOCOM KVL-WR06

  • Page 1 KVL-WR06/KVL-WX08/KEL-WX012 MANUAL [ 6 Wire Lobby Phone ] KVL-WR06 KVL-WX08 KEL-WX012 ■ Automatically opens common gate while communication with house ■ For 6 wire type videophone ■ Keypad backlight function - LED lamp ■ White LED for night detection ■...
  • Page 2: Cautions For Safety

    Cautions for safety For safe use, please stick to the following cautions. ·Please, save this manual after reading these instructions carefully. ·Read and understand all instructions to set up rightly. ·This Cautions for Safety may include items that are not contained in specifications of the product that consumer purchases. ·If you need assistance with the set-up or operation, please contact with A/S center.
  • Page 3 Safety Instructions, Warnings and Cautions of Each System ·Do not disassemble this unit at will as this device is composed by precision parts. 쪾 ·Install the unit by following the set-up instructions of Kocom. ·Do not touch or insert any foreign substances, for example, sticker, magnetic, opener and the like.
  • Page 4: Installation Location

    Installation location Lobby Phone Camera Center Lens 500mm lens 500mm ■ Standard height for installation ■ Caution of camera installation ·Standard installation height of Lobby phone camera is 1,400~1,450mm ·Avoid installing camera exposed to direct ray of light (and sun). from floor to the bottom of flush mounting box.
  • Page 5: Components Of Product

    3 pin connector between lobby phone & Door opener The number of 6 pin connector depends on each model as below - KVL-WR06:6 house - 6pin 6pcs - KVL-WX08:8 house - 6pin 8pcs - KEL-WX012:12 house - 6pin 12pcs 2 pin connector between lobby phone & adapter Specifications Model No.
  • Page 6 Name and Functions of Each Part ■ Main body KVL-WR06 KVL-WX08 KEL-WX012...
  • Page 7 Button & Wiring Information ■ SYSTEM block diagram ■ LOBBY PHONE ■ EXTENSION UNIT KVL-WR06 KVL-WX08 KEL-WX012 ■ KVL series to KEL series wiring...
  • Page 8: Wiring Connection

    ■ KEL-WX012 to household monitor Caution ※ When the KCV-S701EBC connection with the KVL-WR06 / KVL-WX08 / KEL-WX012, KLP-W350 lobby phone, the back connector need th connect with the A CAM 1 connector. ※ The system wiring order is supposed to be like this : 485-,485+ connects to Blue/White + Blue twisted wire / GND, Audio connects to Brown / White + Brown twisted wire / Power, Video connects to Green/White + Green twisted wire / And the rest Orange/White + Orange twisted wire will be connected to GND wire.
  • Page 9: Wiring Information

    Wiring Information ■ Wiring information 1. Audio volume adjustment (RP1) House monitor → Lobby phone audio volume. Using a screwdriver, increase (+) or decrease(-) the volume from house to the lobby phone. 2. Power input terminal:DC 15V (Terminal J1) Additional power adapter should be used. +15V 3.
  • Page 10 LED lights. 4. Function of reset button. Press the RFID Card reset button once, which is on the back of the KVL-WR06 lobby phone module. You will hear 1 beep sound, that means you delete all the cards added by users.
  • Page 11 Memo...
  • Page 12: Warranty Card

    2) If this product breaks down during proper use as a result of product defect, KOCOM will repair it within one year from date of purchase free of charge. 3) The following cases will be subject to charge, even during warranty period: a.
