Furuno GP-80 Operator's Manual

GPS NAVIGATOR GP-80
The purpose of this operator's guide is to provide the basic operating procedures for this equip-
ment. For detailed information, refer to the operator's manual.

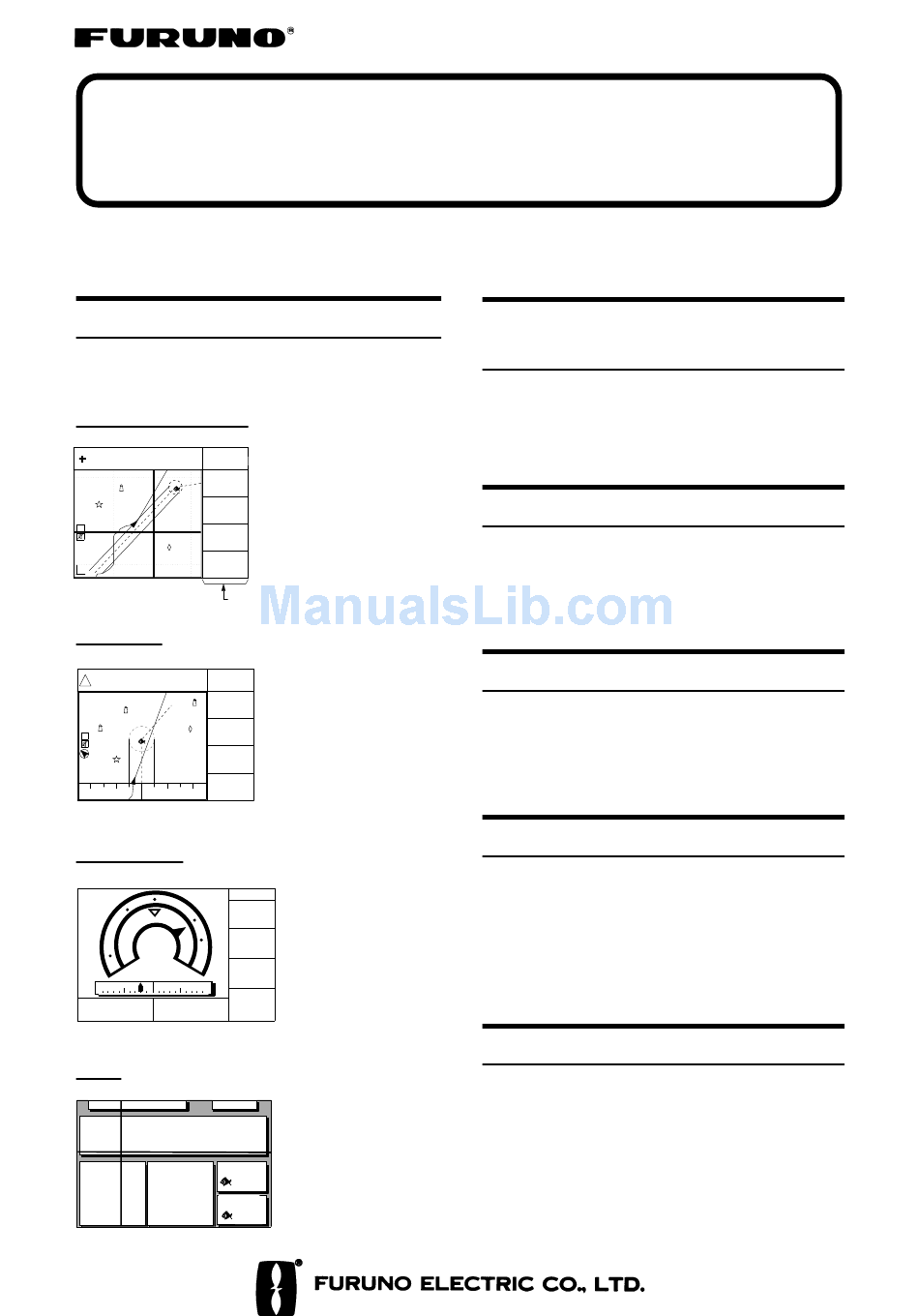

Selecting Display Mode
Press [DISPLAY SEL].
Plotter 1/Plotter 2
34° 23.456´ N 135° 45.678´ E DGPS 3D
30
BRG
001 234°
CSE
345°
40
50
H
BRG To +
123°
RNG To +
20
11.5
nm
2nm
Does not appear
on Plotter 2 display.
Highway
34° 23.456´ N 135° 45.678´ E DGPS 3D
002
BRG
234°
CSE
345°
001
H
RNG
123
nm
SPD
12.3
kt
1.0 1.0
nm
Navigation
DGPS 3D
012
TO;
E SPD
12.3
N
VTD
BRG
10.3
63°
CSE
S
RNG
123°
123
0.1nm 0.1nm
TRIP
3D
ETA 15 TTG
789
23:45' 17H 45M
Data
SEP 12, 1995 23:59'59" U DGPS 3D
12° 23.456' N
POSITION
123° 23.456' E
TO : 001
RNG BRG
223.4° MARINE
31.23
nm
POINT1
: 002
NEXT
SPD CSE
12.3
123.4°
MARINE
kt
POINT2
Operator's Guide
Ship's track and
data
3D view of ship's
track overlaid on
intended course
Graphic display
of steering data
kt
kt
nm
nm
Comprehensive
navigation data
display
Enlarging/Shrinking the
Display
Enlarging: Press [ZOOM IN].
Shrinking: Press [ZOOM OUT].

Shifting the Cursor

1) Press [CURSOR ON/OFF] to turn on the
cursor.
2) Operate the cursor keys to shift the cursor.

Shifting the Display

1) Press [CURSOR ON/OFF] to turn off the
cursor.
2) Operate the cursor keys to shift the display.

Centering Cursor Position

1) Press [CURSOR ON/OFF] to turn on the
cursor.
2) Operate the cursor keys to position the cur-
sor where desired.
3) Press [CENTER].
Entering/Erasing Marks
1) Press [CURSOR ON/OFF] to turn on the
cursor.
2) Operate the cursor keys to position the cur-
sor where desired.
3) Press [MARK].
To erase any mark (except MOB), place the
cursor on the mark and press [CLEAR].
