INSTRUCTION MANUAL

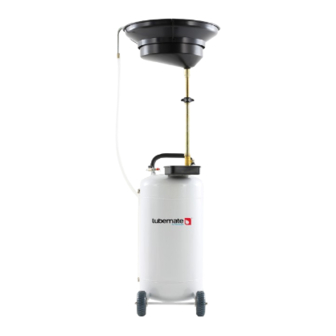

MOBILE WASTE OIL DRAINER
Thank you for purchasing a Lubemate L-OD90B waste oil drainer.
The Lubemate Waste oil drainer is suitable for the collection and removal
of waste oils only.
Filter Mesh Screen In Bowl
Catch foreign items.
Telescopic Suction Tube
Easy height adjustment.
Extends to 2.05m
(with Extender Bowl)
Waste Oil Level Tube
Identify oil level inside
holding tank.
Powder Coated Steel Tank
90L capacity.
Gravity waste oil drainer
Draining oil speed: 1.8 - 3LPM
Suitable for draining waste oil from engines,
gear boxes and differentials of all vehicles
Tank capacity: 90L
TECHNICAL SPECIFICATIONS
Wide Bowl Extender
Large enough for automatic
transmission draining.
Extender diameter 600mm.
Offset Swiveling Bowl
For easy bowl positioning
Swiveling diameter up to 800mm.
Keep tools and accessories
Polyurethane Wheels
Easier manoeuvring over
Max Drainer Capacity: 90L
Oil Draining Pressure: 1 bar
Maximum oil temperature: 120°C
L-OD90B
Oil Bowl
Diameter 400mm.
Handy Tool Tray
within reach.
workshop floors.
Mac-rev-2-2020
macnaught.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Macnaught lubemate L-OD90B
Summary of Contents for Macnaught lubemate L-OD90B
- Page 1 INSTRUCTION MANUAL MOBILE WASTE OIL DRAINER L-OD90B Thank you for purchasing a Lubemate L-OD90B waste oil drainer. The Lubemate Waste oil drainer is suitable for the collection and removal of waste oils only. Wide Bowl Extender Large enough for automatic transmission draining.
- Page 2 INSTRUCTION MANUAL L-OD90B IMPORTANT INFORMATION ASSEMBLY PROCEDURE The information contained will help ensure 1. Connect the wheels to the axle, tighten the many years of dependable performance screws. Insert the castors into the holes and trouble free operation. provided and tighten securely. Please take a few moments to read through this instruction manual before operating 2.
- Page 3 If you run out of air pressure repeat step 5. Sight glass After the oil transfer has been completed, release the air pressure in the holding tank and shut the holding tank ball valve. Casters Wheels macnaught.com 3. Lubemate | Waste Oil Evacuation System...
- Page 4 INSTRUCTION MANUAL L-OD90B SPECIFICATIONS Tank Capacity Max Drainer Capacity Drainer Oil Speed Capacity 1.8-3 L/min Oil Draining Pressure 1 bar Working pressure 6-8bar (87 -116 psi) Max height (without extender bowl) 1.95m Min height (without extender bowl) 1.21m 2.05m Max Height (with extender bowl) Min Height (with extender bowl) 1.31m 4.
- Page 5 INSTRUCTION MANUAL For Macnaught warranty, terms and conditions see macnaught.com/warranty ©Macnaught Pty Ltd, 2020 Lubemate is a practical, cost-effective range of ® equipment brought to you by the trusted team at Macnaught. All Lubemate products are specially selected by our...
