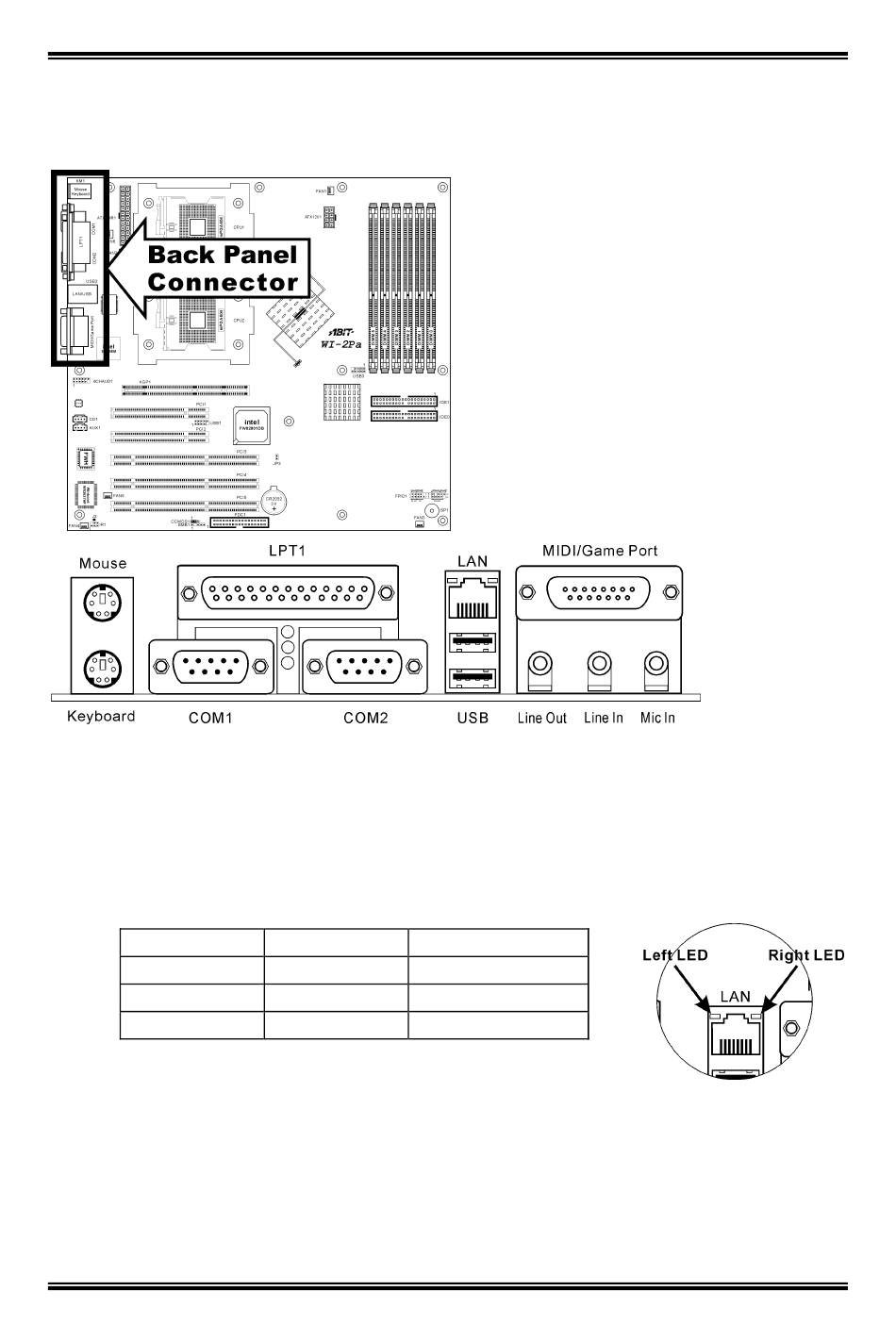

Back Panel Connectors:

•
Mouse: PS/2 mouse connector.
•
Keyboard: PS/2 keyboard connector.
•
LPT: Parallel port connector.
•
COM1/COM2: Serial port connector
•
LAN: Local Area Network connector.
Left LED
Off
Green
Green
•
USB: Universal Serial Bus connector.
•
MIDI/GAME Port: Joystick, game pad, MIDI or other simulation hardware
devices connector.
•
Line Out: Audio output jack.
•
Line In: Audio input jack.
•
Mic In: Microphone input jack.
WI-2Pa
Right LED Definition
Off No Connection
Off Link
Blink Orange Active
