Description of the device

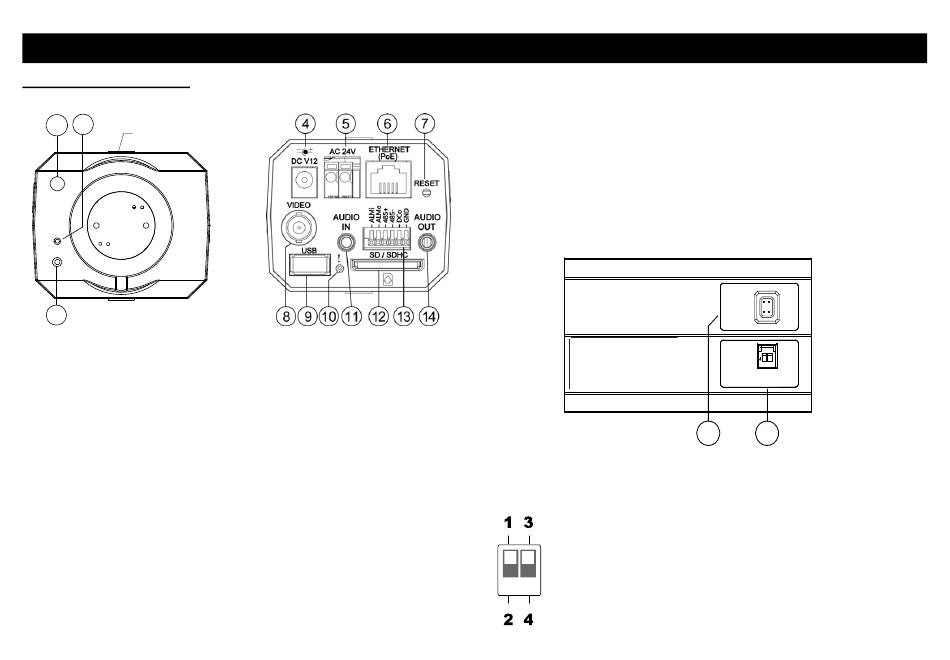

1. Front Panel & Rear Panel
1
2
1/4"-20UNC
3
1. Light Sensor: Registers the quality of light in the camera's environment, and
controls the iris shuttle to provide better information concerning the light.
2. MICROPHONE: The IP Camera has an additional audio function. The device has
a microphone built into its front panel which records sound.
3. POWER indicator: Indicates the power status of the unit.
4. Plug Inlet: A DC 12V inlet that connects to an external power supply.
5. Plug Inlet: An AC 24V inlet that connects to an external power supply.
6. ETHERNET 10/100 Connector: This is a standard RJ-45 connector for 10/100
Mbps Ethernet networks. PoE (Power over Ethernet) function: Provides power to
the device via the same cable as used for the network connection.
7. RESET: Recover to factory default.
8. VIDEO OUT Connector: The connector provides the unit's composite video
signals to a monitor.
9. USB port: The user can use a USB device cable to connect the IP camera to the
USB port on the PC.
10. LED indicator: The green light indicates the unit is activating and the SD card
cannot be removed.
The 2.0-Megapixel IP Box Camera
11. AUDIO IN: The connector is used to connect the audio output from other devices
to the camera.
12. SD/ SDHC CARD slot: This is used for system software updating and archiving /
accessing critical images.
13. ALARM I/O: This is a 6-PIN connector including the ALARM IN/OUT, RS-485,
DC OUTPUT and GROUND items for connecting with external devices.
14. AUDIO OUT: Provides the camera's audio signal to a speaker or stereo.
2. Flank Panel
1.ALM-OUT A
7.RS-485:D+
2.ALM-OUT B
8.RS-485:D-
3.ALM-IN +
9.DC-OUT(5V)
4.ALM-IN -
10.GND
5.ALM-RST +
11.AUDIO-IN
6.ALM-RST -
12.AUDIO-OUT
1. IRIS: Auto iris connector.
This camera works with a DC drive auto iris lens. Please refer to the pin
assignment marked on the camera when connecting the auto iris lens
2. DIP Switch:
(1) AES: Auto electric shutter.
(2) DC IRIS: Use an auto iris (DC drive)
(3) DHCP: Turn On / Turn Off to use the DHCP protocol. If the switch
points upwards, the device can obtain an IP address from the DHCP
server via the network.
(4) STATIC IP: If the switch points down, the device can't obtain an IP
address from the DHCP server. This option is needed to configure
the network communication settings.
1
IRIS
1
3
1. AES
2. DC IRIS
2
4
3. DHCP
4. STATIC IP
1
2
RMN0100530
