Summary of Contents for Wesco WS3161K

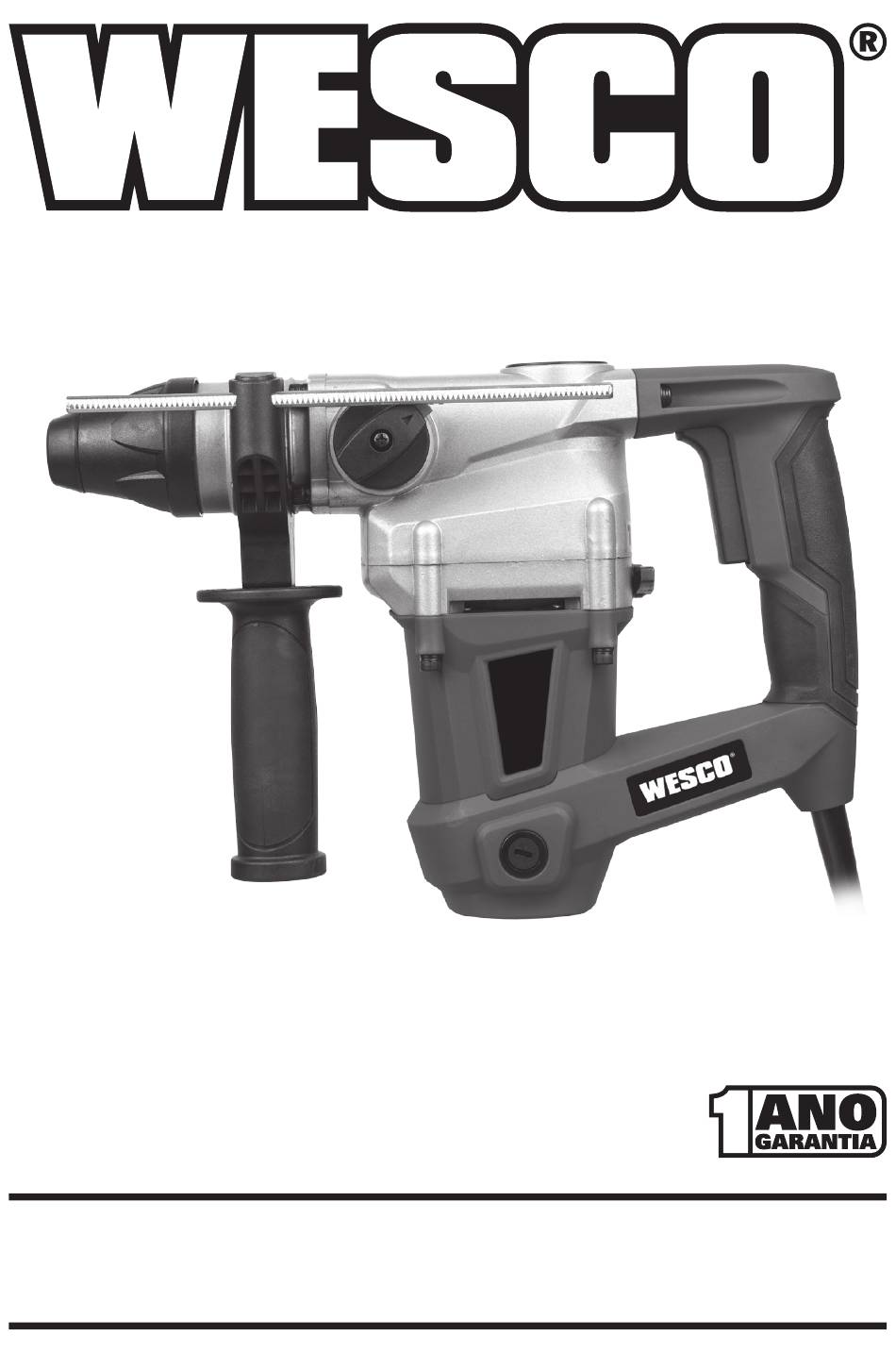

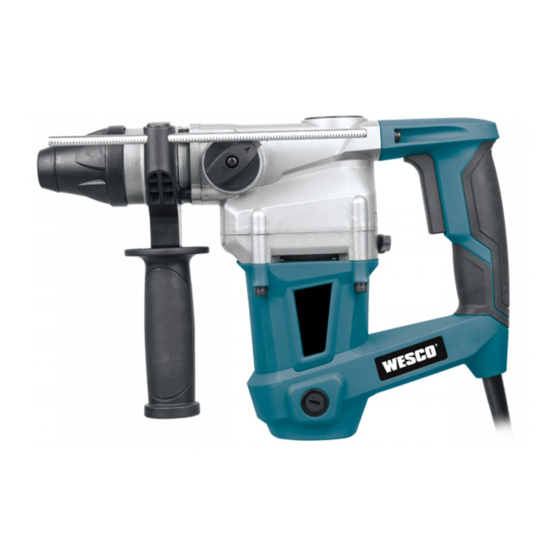

  • Page 1 WS3161K WS3161KU Martelete SDS-plus Rotary Hammer...
  • Page 4 PT: Parte dentada do orifício na empunhadura auxiliar EN: Toothed side of hex hole marking on the grip base PT: Parte dentada do limitador de profundidade EN: Toothed side ofthe depth gauge Fig.A Fig.B1 Fig.B2 Fig.C Fig.D Fig.E Fig.F1 Fig.F2 Fig.G1 Fig.G2 Fig.H1...
  • Page 5: Lista De Componentes

    7. Seletor de função furar com impacto e furar sem impacto 8. Punho Auxiliar 9. Proteção para pó * Nem todos os acessórios ilustrados ou descritos são fornecidos em todas as versões (consulte conteúdo informado na embalagem do produto). DADOS TÉCNICOS WS3161K WS3161KU Voltagem 220V~60Hz 127V~60Hz Potência...
  • Page 6: Segurança Elétrica

    AVISOS GERAIS alimentação. Nunca utilize o cabo para transportar, puxar ou desligar o aparelho DE SEGURANÇA da tomada de corrente. Mantenha o DE FERRAMENTAS cabo afastado de fontes de calor, óleos, ELÉCTRICAS arestas afiadas ou peças em movimento. Cabos danificados ou modificados aumentam o risco ATENÇÃO! Leia atentamente as de choque elétrico.
  • Page 7: Assistência Técnica

    Use roupa apropriada. Não use vestuário discos de serra com manutenção adequada e arestas solto ou artigos de joalharia. Mantenha de corte (ou destes) afiadas têm menos probabilidades o cabelo, vestuário e luvas afastados de bloquear e são mais fáceis de controlar. peças em movimento.
  • Page 8 Utilização do produto AVISO: O seu novo martelete é uma O Martelo Perfurador Wesco WS3161K/U foi desenvolvido ferramenta potente que lhe permite e fabricado para perfura alvenaria, concreto e efetuar executar todos os trabalhos de forma pequenos trabalhos de rompimento utilizando cinzel.
  • Page 9 SUGESTÕES DE 1) Para perfurar concreto e alvenaria, pressione o seletor de função (b) e gire o para que o triângulo aponte para o TRABALHO PARA O SEU símbolo “ “. (Ver Fig. F1) FURADEIRA Observação: Você deve pressionar o botão de trava do seletor antes de ajustá-lo.
  • Page 10: Component List

    COMPONENT LIST Locking sleeve SDS Chuck Depth Gauge Hammer and chisel action selector Grease box cover On / Off Switch Hammer and drilling action selector Auxiliary Handle Dust Cover * Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA WS3160K WS3160KU...
  • Page 11: General Power Tool Safety Warnings

    GENERAL POWER TOOL Use of an RCD reduces the risk of electric shock. SAFETY WARNINGS 3. PERSONAL SAFETY a) Stay alert, watch what you are doing and WARNING! Read all safety warnings use common sense when operating a and all instructions. Failure to follow the power tool.
  • Page 12: Hammer Safety Warnings

    ADDITIONAL SAFETY adjustments, changing accessories, or storing power tools. Such preventive safety RULES FOR HAMMER measures reduce the risk of starting the power tool accidentally. 1. Always wear a dust mask. d) Store idle power tools out of the reach of children and do not allow persons SYMBOLS unfamiliar with the power tool or these...
  • Page 13 OPERATING REMOVING BITS (SEE FIG. D) Retract back the bit holder locking sleeve and pull out the bit. INSTRUCTIONS WARNING: Your new Rotary Hammer Drill generates powerful forces to get NOTE: Before using the tool, read the your job done quickly and effectively. These instruction book carefully.
  • Page 14: Troubleshooting

    TROUBLESHOOTING required during hammer work efficiency is low. Open the grease box lid at the top of the hammer using the pin 1. If your power tool does not start, check the plug on the spanner provided. Then refill approx 30g grease provided power supply first.
  • Page 16 Importado por: Positec Importação de Ferramentas Limitada Rua Luis Spiandorelli Neto 30 – Sala 401 13271-570 Valinhos/SP SAC: 0800-7792-919 www.ferramentaswesco.com.br Fabricado na China...
