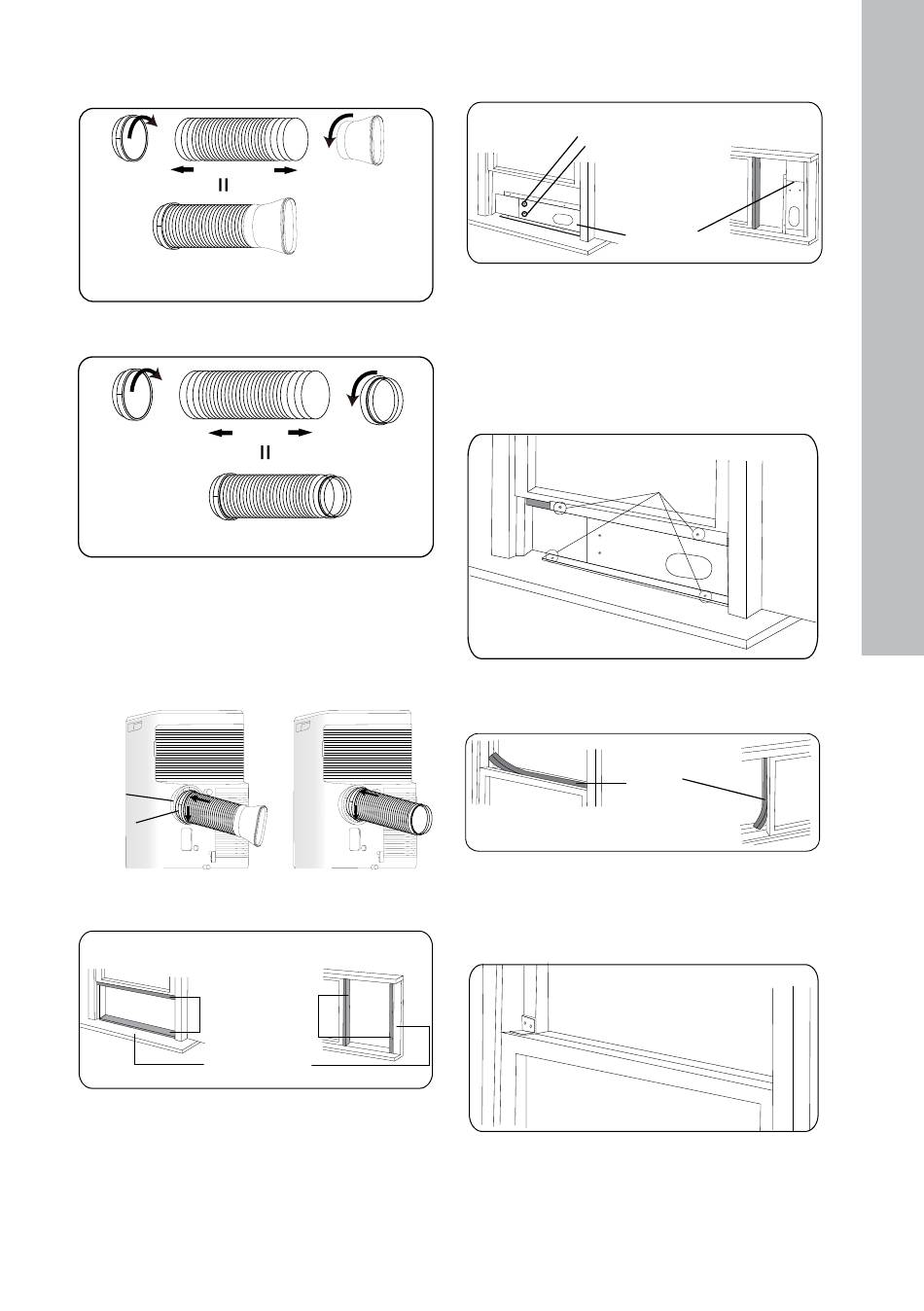

(Be used to install to the window)
Fig. A
or
(Be used to install to the wall (only for some units))
Fig. B
2. Connect the exhaust duct to the Air outlet
connector on back of the unit. Slide-in the
adaptor A downwards until it is locked in
place. (Fig.C)
Air outlet connector
adaptor A
Install the Window Slider Kit
Horizontal
Foam Seal A
window sash
1. Cut the foam seal(adhesive type) to the
proper length and attach it to the window
sash.
Wall exhaust
adaptor
(flat mouth)
Adaptor B
(round mouth)
(round mouth)
or
Vertical
Air conditioner portable
Screw A
2. Attach the window slider kit to the window
sash. Adjust the length of the Window
Slider Kit: Loose the screw A to adjust the
length of the Window Slider Kit, then tight
the screw when the length is suitable.
Note: the length of the Window Slider Kit is
67.5cm to 120cm.
Screw B
3. Carefully lower the window. Secure the vent
panel in place with 4 type В screws,plus
one screw for each extension.
4. Cut the foam seal B(non-adhesive) to
the window width. Stuff the foam seal В
between the glass and the window to
prevent air and insects from getting into
room.
5. Install the security bracket with a type В
screw, as shown.
9
window
slide
kit
Foam
Seal
