REMOVING THE DRIVE

To remove the media drive from your Tablet Dock:
1. If the Tablet PC and media drive are running, click
on the "Safely Remove Hardware" icon in the system
tray at the bottom right of your screen and disable
the media drive.
It is recommended that you always have
the media drive installed while you are
using your Tablet PC in the Tablet Dock.
2. Pull the drive latch away from the Tablet Dock to
unlatch the drive from the dock. (See Figure 9.)

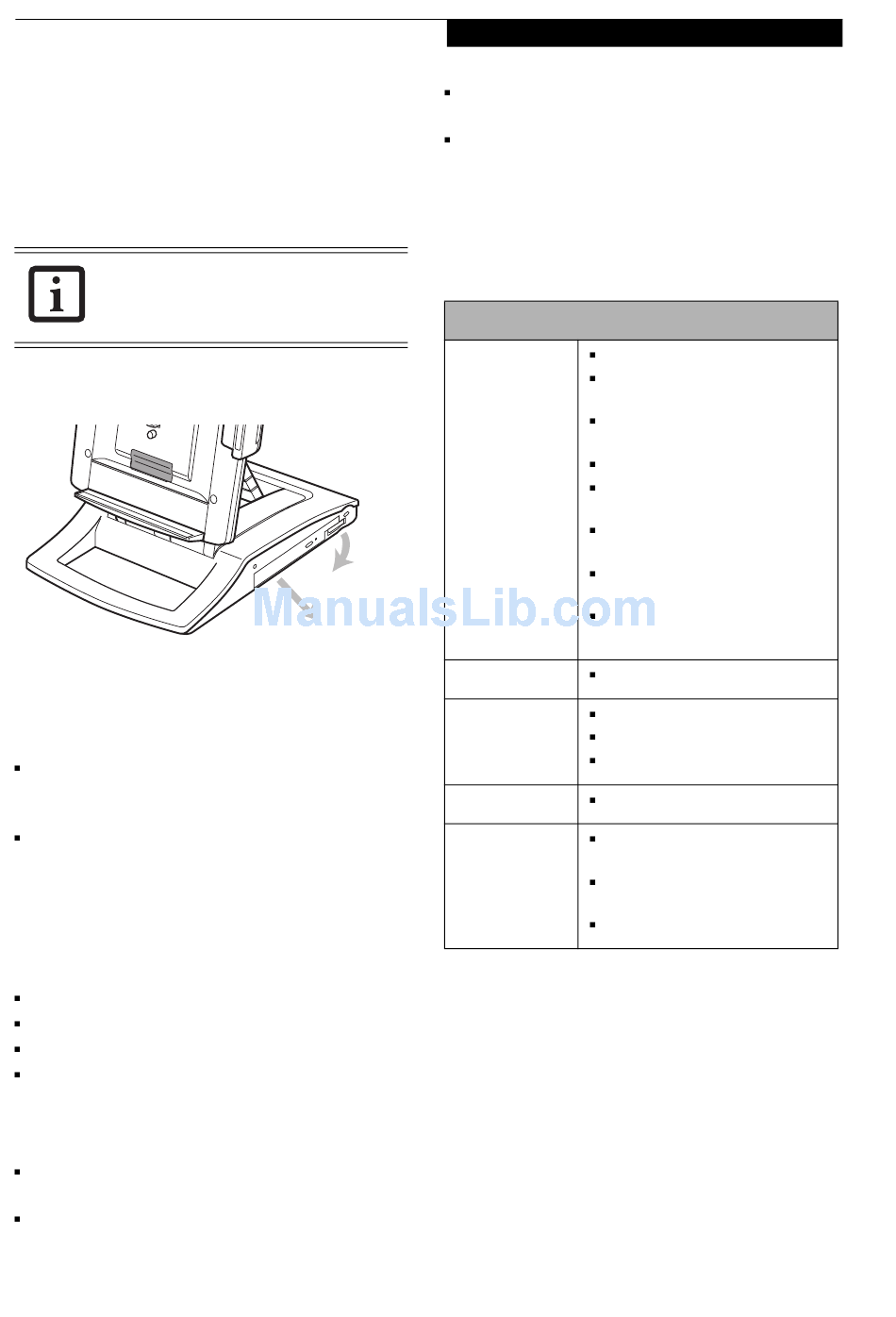

Figure 9. Removing the Media Drive
3. Pull the module out of the Tablet Dock.

SAFETY PRECAUTIONS

Never move the Tablet Dock with the system docked
unless it is fully locked. If the system were to undock
accidentally, it could drop and be damaged.
Never power-off or remove the computer from the
Tablet Dock while the system is reading or writing to a
floppy or hard drive. This could result in data loss.

FUJITSU CONTACT INFORMATION

If you have problems you are unable to resolve, consult
your support representative, toll free at
Phone: 1-800-8Fujitsu (1-800-838-5487)
FAX: 408-764-2724
E-mail: 8fujitsu@us.fujitsu.com
Web Site: us.fujitsu.com/computers
Before you place the call have the following information
ready so the customer support representative can
provide you with the fastest possible assistance:
Product name and model number for both the Tablet
Dock and your system.
Product configuration number for both the Tablet
Dock and your system.
Product serial number for both the Tablet Dock and
your system.
Purchase date for both the Tablet Dock and your
Stylistic ST Series Tablet PC.
With the exception of the purchase dates, the informa-
tion you need is on the unit label on the back of your
system and on the bottom of your dock.
TABLET DOCK SPECIFICATIONS
Ports
1
2
Power
Dimensions
Weight
Environmental
T a b l e t D o c k U s e r ' s G u i d e
Features/Details
100-pin docking connector
VGA, D-sub 15-pin female
connector, DDC compliant
Line Out Jack (3.5mm) for head-
phones or external speakers
DC input, 16VDC
IEEE 1394, 4-pin standard
connector
USB (Universal Serial Bus) 2.0
Ports (quantity: 3)
LAN connector: 1000Base-T/
100Base-TX/10Base-T; RJ-45
System Bay: Accommodates CD-
ROM or DVD/CD-RW drive
16 VDC, with current of 3.75 A
Height: 12.95" (329 mm)
Width: 8.66" (220 mm)
Depth: 10.35" (263 mm)
5.95 lbs. (2.7 Kg)
Operating Temperature:
o
o
41
- 95
F (5
Storage Temperature:
o
o
-4
- 140
F (-20
Relative Humidity: 20 - 80%
Table 1. Tablet Dock Specifications
o
o
- 35
C)
o
o
- 60
C)
7
