Summary of Contents for Pentax 5PES

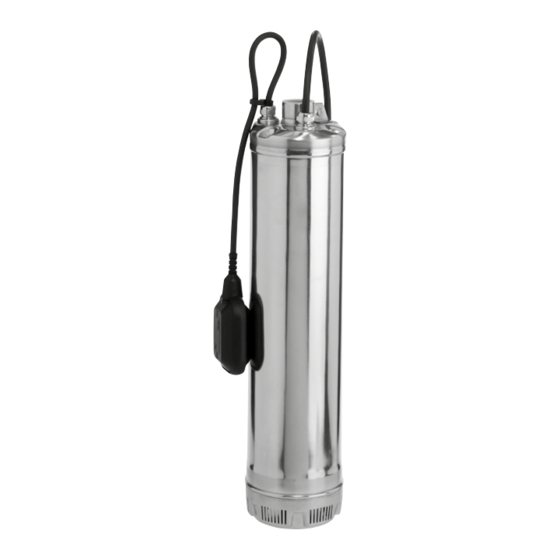

- Page 1 CLOSE-COUPLED 5" PUMPS 5PES 50HZ Use and installation instruction manual...
-
Page 2: Dichiarazione Di Conformità
37040 Veronella (VR) - Italy Gianluigi Pedrollo Veronella (VR), 01/06/2011 Gianluigi Pedrollo (President) Veronella (VR), 01/06/2011 ® Sede amministrativa e stabilimento: Viale dell’Industria, 1 - 37040 Veronella (VR) Italy Tel. +39 0442 489500 - Fax +39 0442 489510 - www.pentax-pumps.com - E-mail: com@pentax-pumps.it... - Page 3 CLOSE-COUPLED 5" PUMPS ENGLISH Use and installation instruction manual - EN - The pump can work continuously at the maximum temperature indicated on the rating plate (+40°C). During installation, maintenance and use of the appliance, carefully follow the instructions Refer to the “INSTALLATION” and “HYDRAULIC provided in the manual.
-
Page 4: Preliminary Inspection
ENGLISH 5" CLOSE-COUPLED PUMPS Translation of the original instructions 1 PRELIMINARY INSPECTION Protect your eyesight with safety goggles 1.1 Delivery and packaging The product is supplied in its original packaging, which includes this instruction manual, and must remain packed until it is installed. The packed product must be Wear steel toe cap safety shoes, insulated from the ground stored away from atmospheric agents. -
Page 5: Applications And Use
ENGLISH Use and installation instruction manual 3 APPLICATIONS AND USE cannot be disconnected and reconnected by the user). The cable terminals must be connected in an electrical panel with at least an IP55 protection rating, 3.1 Permitted use equipped with cable mechanical fixing systems independent of electrical These electric pumps are designed for applications such as water supply from terminals, and an overvoltage category III omni-polar cut off switch preventing groundwater, pumping from a reservoir or tank, pressure increase or domestic... -
Page 6: Hydraulic Connections
ENGLISH 5" CLOSE-COUPLED PUMPS Translation of the original instructions 4.4 Variable frequency drive (VFD) applications Refer to fig. A2 in appendix. Make sure that the misalignment between the two pipes does not generate an For variable frequency installations (power supply via “inverter”), make sure the excessive load on the electric pump connections. -
Page 7: Maintenance And Support
ENGLISH Use and installation instruction manual 8 MAINTENANCE AND SUPPORT 9.3. Oil spills The electric pump does not require special maintenance. • In case of breakage, the electric pump can release up to 50 cl of oil (non-toxic). Have the electric pump repaired only by personnel authorised by the manufacturer Occasional ingestion of oil is not dangerous for human health. - Page 8 APPENDIX Fig . A1 Fig . A2 APPENDICE / APPENDIX / APPENDICE / ANHANG / APÉNDICE / / BIJLAGE / LISA / PRIEDAS / PIELIKUMS / ZAŁĄCZNIK / ПРИЛОЖЕНИЕ / BILAGA / EK / LIITE...
