Summary of Contents for 3R Anyty 3R-VIEWTER-500UV

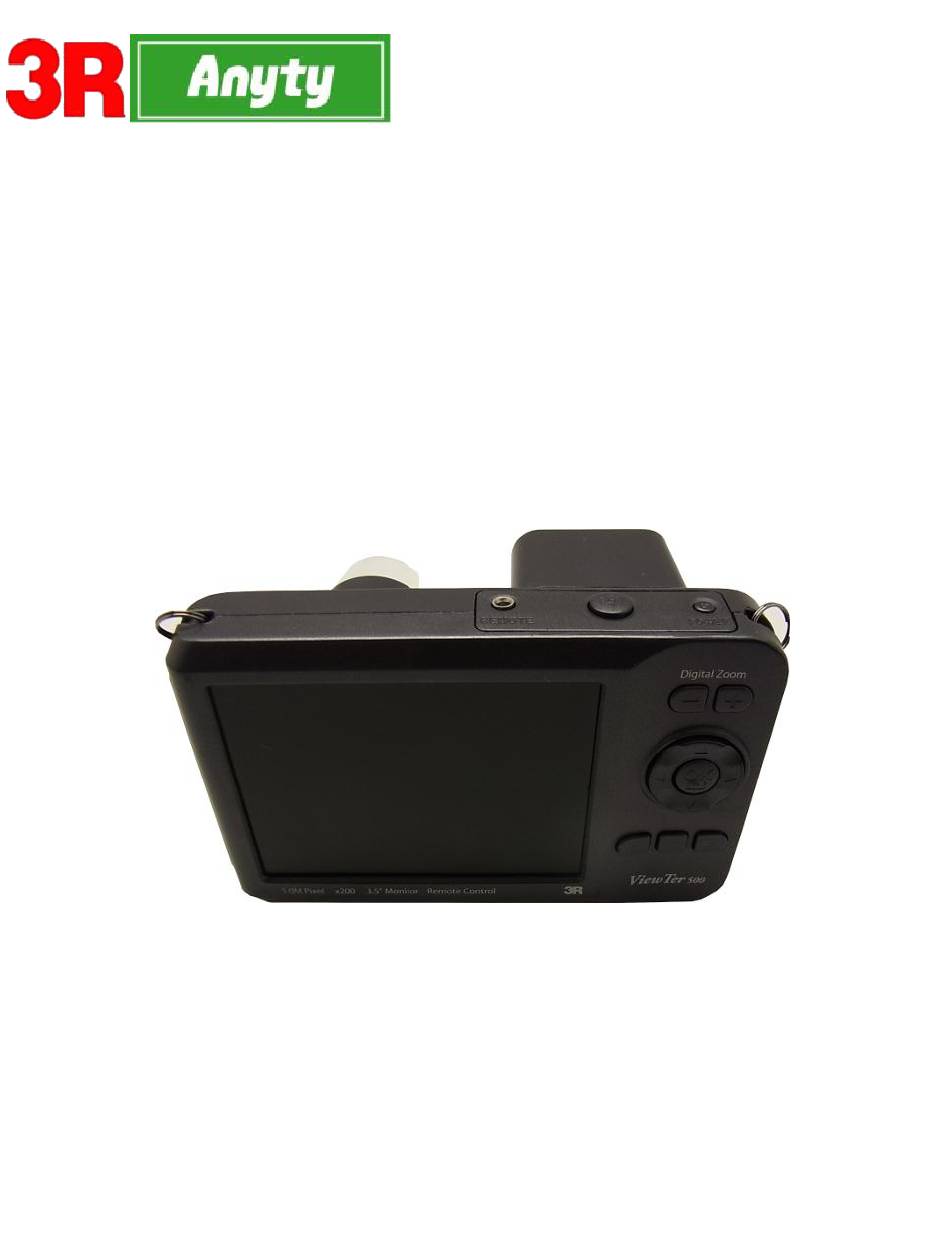

- Page 1 Viewter Portable Digital Microscope 3R-VIEWTER-500UV（UV LED Model） 3R-VIEWTER-500IR（IR LED Model） Operating Instruction...
-
Page 2: Table Of Contents
Index 1. Contents 2. Name of each parts 3. Set up 3.1 Charging 3.2 Insert SD card. 3.3 Loading lens cover and spacer 3.4 Adjust magnification and focal point 3.5 Connect Controller 4. Use ‘Viewter’ 4.1 Power 4.2 Adjust magnification and focal point 4.3 Digital zoom 4.4 LED adjustment 4.5 Display scale... -
Page 3: Contents
1. Contents The product contains items below. Please check package ※ Description without spacer in some parts of this manual Viewter Wired Controller Lens cover（x2） Spacer（x2） USB charging cable miniUSB cable AC/USB charging adaptor Strap Simple scale Software CD（VIEWTER Plus） SDHC Card 4GB（sample）... -
Page 4: Name Of Each Parts
2. Name of each sector Name of each part below ●Viewter Name Function ① Power Button Switch Viewter on/off ② Shutter Button Button for capturing picture/movie ③ Controller connector Port for Wire controller ④ Holder hock Hock for strap ⑤ Lens cover Lens and lens cover for height adjustment ⑥... - Page 5 Name function ⑩ Monitor Display information ⑪ Magnification Dial Dial for adjusting magnification and focal point ⑫ Lens cover Lens cover for height adjusting ⑬ SD/SDHC Slot Slot for setting SD card ⑭ LED button Button for setting LED mode ⑮...
-
Page 6: Set Up
3. Set up 3.1 Charging Please charge the ‘Viewter’ Microscope before use it. Use attached USB charging cable and AC/USB adaptor to connect ‘Viewter’ to household wall outlet. Charging lamp will be red during charging period. Charging time will be approx 4~5 hours. Charging lamp will be blue when charging is complete. -
Page 7: Loading Lens Cover And Spacer
3.3 Loading lens cover and spacer Viewter contains 2 sets of lens covers and spacers. ● For x60 + x200 ● For x80 + x150 Change lens cover and spacer to gain magnification you want. You could also remove them when you could not gain magnification you want with them. Pull this direction to remove ―... -
Page 8: Adjust Magnification And Focal Point
3.4 Adjust magnification and focal point Please adjust magnification dial after loading lens cover and spacer as well as for finer adjustment during capturing. Dial Lens cover The image shows magnification and focal range below. Let the lens cover touch the object you want to observe. -
Page 9: Connect Controller
3.5 Connect controller Connect attached controller to Viewter when you want to use it stable. Please connect controller to controller port on Viewter. ※Functions of controller ○ Shutter ○ Mode change ○ LED change ― 8 ―... -
Page 10: Use Viewter
4. Use Viewter 4.1 Power Switch it on when it is ready. Press power button for 1 second and the monitor will be activated. Follow the same way when you want to switch it off. Power Button 4.2 Adjust magnification and focal point Get lens part (Lens cover) closed to object, the image of object will be displayed on screen. -
Page 11: Led Adjustment
4.4 Adjust LED The LED light is loaded on Viewter in order to adjust brightness of the object. Press 「LED」 button to switch LED mode (3 options). To adjust brightness, please use LED dial on flank of Viewter（→Page 3）. LED button（left side） Light off→White LED→UV LED（IR LED）... -
Page 12: Capture Still Picture
4.6 Capture still picture Press the shutter button next to power button and screen will go dark. That is the sign of capture Shutter button OK button（Middle） Mode of still is shown as below. Mark of still mode Shows space of SD card and savable number of pictures. Icon of SD card. -
Page 13: Capture Movie
4.7 Capture movie Please press Mode button to switch to movie mode and press shutter button next to power button so the recording will be starting. Press shutter button once again to finish recording. Shutter button Mode button（Right side） Mode of movie is shown as below Mark of movie mode Shows space of SD card and savable times of pictures Icon of SD card. - Page 14 Shutter button Direction key（LeftRight） Mode button（Right side） Mode of preview is shown as below Mark of preview mode（Preview of still picture will be icon） （Only for Movie）Play time of Movies Icon of SD card. X Mark will be on it if the SD card is not loaded properly Setting of resolution Residual amount of inner battery No.
-
Page 15: Settings
5. Settings Explain check and change modes and settings in this section. Press menu button in each mode to launch setting menu and use cross key (left, right) to choose option. Then use cross key (up, down) to change settings. Menu button（middle）... -
Page 16: Setting Of Movie Mode
500M Save data in 2060ｘ1920 pixel 300M Save data in 2048ｘ1536 pixel 200M Save data in 1600ｘ1200 pixel 100M Save data in 1280ｘ960 pixel Save data in 640ｘ480 pixel Image stabilizing system The third icon from left side is image stabilizing system icon. The system might not work properly due to large shake Image stabilizing system on Image stabilizing system off... -
Page 17: Setting Of Preview Mode And Editing
5.3 Setting and editing of preview mode Setting during preview mode Turn of the image（Still picture only） You are able to change direction of images during preview 90° Clockwise rotation 90° 180° Clockwise rotation 180° 270° Clockwise rotation 270° Cancel Terminate rotating system File Protection You are able to lock up the file you do not want to be deleted... - Page 18 Normal Default setting Outdoor（Sunny） Setting in the environment where the light is strong Outdoor（Cloudy） Setting in the environment where the light is weak Incandescent lamp Setting in the environment of incandescent lamp Fluorescent lamp Setting in the environment of fluorescent lamp Sharpness Image adjustment of still picture Normal...
- Page 19 Auto power off Power will be off automatically if no operation after times below; 1 min Set auto power off time in 1min 3 mins Set auto power off time in 3mins 5 mins Set auto power off time in 5mins Disable auto power off system Language You are able to select display language of Viewter.
-
Page 20: Software（Viewter Plus
6. Software（VIEWTER Plus） You could use the attached software ‘VIEWER Plus’ to edit and measure saved data. Please read the information about Installation requirement below ★Minimum requirement OS※ Windows8,7（32bit / 64bit） WindowsXPSP3、Vista (32bit Version only) Pentium Ⅲ 1Ghz or higher spec of CPU Optical drive required Memory... -
Page 21: Install Viewter Plus
6.1 Install VIEWTER Plus ※Antivirus software might disturb installation. In this case, please disable antivirus software in your PC until the installation is complete. ※Press ‘Continue anyway’ when UAC is activated during installation Set up menu will be launched after the Install CD is loaded in CD-ROM. Please click ‘Install ①... - Page 22 Install program will be launched. Please click ’Next’ ② The End User License Agreement will show. Please select ‘I accept’ and click Next. ③ ― 21 ―...
- Page 23 ④ The screen of selecting install folder will show. Normally, click Next to continue Click ‘Install’ to start installation ⑤ ― 22 ―...
-
Page 24: Preparation For Using（Remove Saved Data
Click ‘Finish’ to complete installation ⑥ 6.2 Preparation（Remove captured data） You are able to use 「VIEWTER Plus」 to edit captured data of which have been sent to the PC. In order to do so, please remove data to specific folder before use it. ①Capture with Viewter ―... - Page 25 ②Connect attached mini USB to USB port on Viewter ③Connect Viewter with PC and ‘Card Reader Mode’ will show on monitor. It will be shown as ‘Removable Disk’ on PC Card reader mode ― 24 ―...
- Page 26 ④Please click each icon from left to right below to open saved data. The captured data will be saved in 100DSCIM （Removable Disk） DCIM 100DSCIM Double click Double click ※Icon of removable disc could be different between different type of PC. ※If you use your own SD card of which the name of the folder has been edited, the file name would not be ‘100DSCIM’...
-
Page 27: Use Of Viewter Plus
⑥ Remove captured data from 100DSCIM to Picture folder in My document. 100DSCIM in removable disc Picture folder in My document JPEG 6.3 Use of VIEWTER Plus ●Launch software We are now ready to use Software. Please launch ‘VIEWTER Plus’. ―... - Page 28 ●Summary of files Please click ‘Open’ which is in ‘File’ on the menu bar. The files will be displayed at left side of the window. ※Each operation could be done by clicking icons below. ― 27 ―...
- Page 29 ●File Saved data will be shown after double click saving folder. If you want to adjust display size, please make use of ‘zoom in’ or ‘zoom out’ in ‘image’ on menu bar. For movie mode, the playing menu bar will be shown ●Edition 「VIEWTER Plus」allows you to edit current displayed image.
- Page 30 □Menu bar,「image」menu 「image」menu could decorate current displayed images Flip Horizontal … Flips current displayed image around Flip Vertical … Turn current displayed image upside down Rotate 90°CW … Clockwise Rotate the image 90° Rotate 90°CCW … Contra rotate the image 90° Sharpen …...
- Page 31 ●Measurement function You are able to use「VIEWTER Plus」to insert measurement data into captured images. Each function is in「Measurement」 on menu bar Calibration … Revising dimensions using the dimensions of the standard Measurement Line … Measure distance between two points Measurement Continuous Line… Measure length of continuous line Measurement Dot-Line …...
- Page 32 ③Click anywhere in picture and the measured data will be displayed ●Adjustment function Use ‘Calibration’ to calculate more accurate value. You need to prepare for an image of attached micro scale or something similar to it. ① The image below is captured picture of attached micro scale Select ‘Measurement Calibration’...
- Page 33 ③ please click two side of the scale that already clear of size (same as calculate Linear size) The window shows as below will be displayed. Please enter the Value and click ‘OK’ ④ Value will be filled in left side of ‘magnification’. From then on, the measurement will be done ⑤...
- Page 34 ●Line setting Select ‘Setting’ in ‘Measurement’ to display the window below. Use it to change font and color of text and measured data ― 33 ―...
-
Page 35: Notes And Q&A
7. Note and Q&A Note ＊Shown magnification due to spec The explained magnification in manual and product is based on displaying with 15 inches monitor ＊Images and screen shots in this manual Images and screen shots in this manual is in the developing level of the product ＊Trademark Name of product in this manual is all registered Trademark Q&A... -
Page 36: Spec
JPEG Resolutions of still picture 2560x1920、2048x1536、1600x1200、1280x960、640x480 Movie format Resolutions of movie 640x480、320x240 Light source （3R-VIEWTER-500UV）High light whiteLEDｘ4、UV LEDx4 （3R-VIEWTER-500IR）High light whiteLEDｘ4、 IR LEDx4 （3R-VIEWTER-500UV） Wavelength 395nm、 Frequency7.59ｘ10＾14Hz （3R-VIEWTER-500IR） Wavelength 850nm、 Frequency3.53ｘ10＾14Hz ISO Sensitiveness 100/200/400 Monitor 3.5 inches LCD monitor（resolution 320x240）... -
Page 37: Cautions
9. Cautions For safety use of the product, prohibition of using and cautions are written. To ensure customer’s safety, PLEASE read this carefully before using Warning ous injury Contents of actions lead to danger to life or seri す Attention DO NOT leave or use the product under direct sunlight and circumstances of high temperature. - Page 38 ― 37 ―...
