Toto USWN900 Series Work Instructions

0GH227
Install the product properly according to these Work Instructions, to ensure that its functions perform sufficiently.

Safety Precautions

Read these "Safety Precautions" prior to construction, and install the product correctly. These
Instructions include a variety of safety indications. These are provided so that the product can
be used safely, to prevent harm to customers or others, and to prevent damage to property.
These indications and their meanings are as follows:
Indication
Ignoring the text accompanying this indication and handling the
WARNING
product incorrectly could result in death or serious injury.
Ignoring the text accompanying this indication and handling the
CAUTION
product incorrectly could result in serious injury or property damage.
* "Property damage" refers to damage extending to the home/household property and domestic animals/pets.
Types of safety precautions that must be followed are classified using the two following symbols for explanatory purposes.
indicates a prohibited use of the product.
The symbol to the l e ft i n di c ates that "use i s prohi b i t ed i n bathtubs and shower stal l s ."
Do not install in locations of high humidity such as bathrooms
Doing so may cause a malfunction or current leak.
Use pr o hi b i t e d near wat e r
People other than repair technicians should never disassemble,
repair, or alter the product.
Doing so may cause a malfunction, electric shock, or injury.
Di s assembl y prohi b i t ed
Always carry out construction work with at least two people
Otherwise, the installer may injure his or her lower back, or drop the porcelain and damage it.
After construction, be sure to give the product a test run and
check that there are no water leaks in any part.
REQUIRED
Not installing the product properly may cause water leaks that could result
in flooding damage to property, such as household belongings.

Precautions prior to Installation

Do not install in locations of high humidity such as bathrooms
Doing so may cause a malfunction or current leak.
Use pr o hi b i t e d near wat e r
● Be sure to install an overcurrent breaker and earth leakage
circuit breaker in order to prevent danger
Electric wire: Use a 600V plastic shielded electric wire or cable
(A ø1.6 mm or ø2.0 mm single wire, or 2.0 mm stranded wire)
●
Insulate and waterproof the power wire connector
REQUIRED
● Do not insert the power wire connector inside the device
Doing so may cause electric shock, a current leak, or a fire.
・Thoroughly discuss the relevant procedures before performing water and
electrical work.
・The power wire is to be provided on-site. (220-240V AC type only)
・A grounding wire is not needed, so use a two-core power wire. (220-240V AC type only)
・Water supply pressure ranges from 0.07 MPa (9 L/min [dynamic]) at minimum to
0.75 MPa at maximum. Use the product within this pressure range.
・Be especially careful not to damage the surface of the sensor.
・This product is an electrical appliance. Be careful not to spray water on it.
The exposure angle and detection distance of the sensor are as shown in the
diagram. When installing a handrail or the like in front of the urinal, do so in a way
that does not obstruct the detection areas (both the stable detection area and
unstable detection area) of the photoelectric sensor. Avoid installing the product in a
location that is highly reflective (such as in a location where a stainless steel wall is in
front of the photoelectric sensor), as this could cause malfunctions.
・The product may not function in environments exposed to strong sunlight.
・Inverters or other devices that use infrared light could cause malfunctions.
・A water supply inspection has been conducted prior to packaging. There may be
some water remaining inside the product, but this is normal.
Stainless steel
Urinal photoelectric
sensor

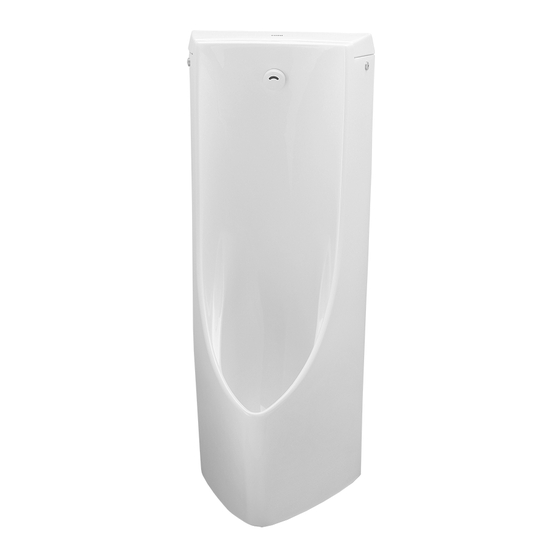

Auto-cleaning Urinal (USWN900 Series)
After installation, provide the customer with a clear explanation of how to use the product.
(be sure to read to ensure safety)
Meaning
indicates a required step in the use of this product.
The symbol to the left indicates the action is "REQUIRED."
WARNING
CAUTION
WARNING
Sensor surface
Detection distance exposure
angle 650mm
Pointing down 15°
15°
Stable detection area
Unstable detection area
Exposure angle and detection area
* For a 300 x 300 mm blank white paper
Work Instructions
■Refer to the following and confirm that no parts are missing.
Upper lid
* Sterilization type with sponge (shaded area)
Urinal
Included Parts
Drain cover
(one)
Water supply fixture Others
Shutoff valve
Alkaline batteries
(1)
(2)
Battery box (1)
Alkaline battery
Alkaline battery type only
type only
Quick fastener
(1)
Work Instructions
(1; this document)
Draining Flange
M8 nuts
(2)
Drainage Bolt Washer Tapping
flange unit (1) [small] (1) screws (4)
(1)
Washer [large]
P seal Back hangers
(1) (for urinal) (1) (2)

Parts Names

■USWN900 model
Upper lid
Conduit E19
(provided on-site)*
Switch box
(provided on-site)*
Controller Back hanger
Shutoff valve
Decorative bolt
Photoelectric
sensor
Main unit
Drainage flange
Drain cover
* is for 220-240V AC type only
The discharge pipe above the fishedwalls surface
should be limited between 25 ~ 30 mm.
2015.9
Hand this over
to the customer
Instruction
Manual
(1)
Work
Instructions
(1)
Wood screw set
(6 wood screws,
2 washers)
