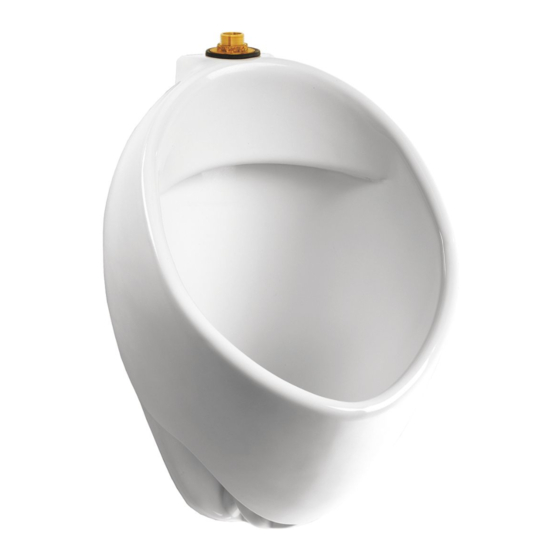

Toto UT105U Installation Manual
Urinal
Hide thumbs
Also See for UT105U:
- Installation manual (20 pages) ,
- Installation manua (12 pages) ,
- Installation manual (20 pages)
Table of Contents
Advertisement
Quick Links

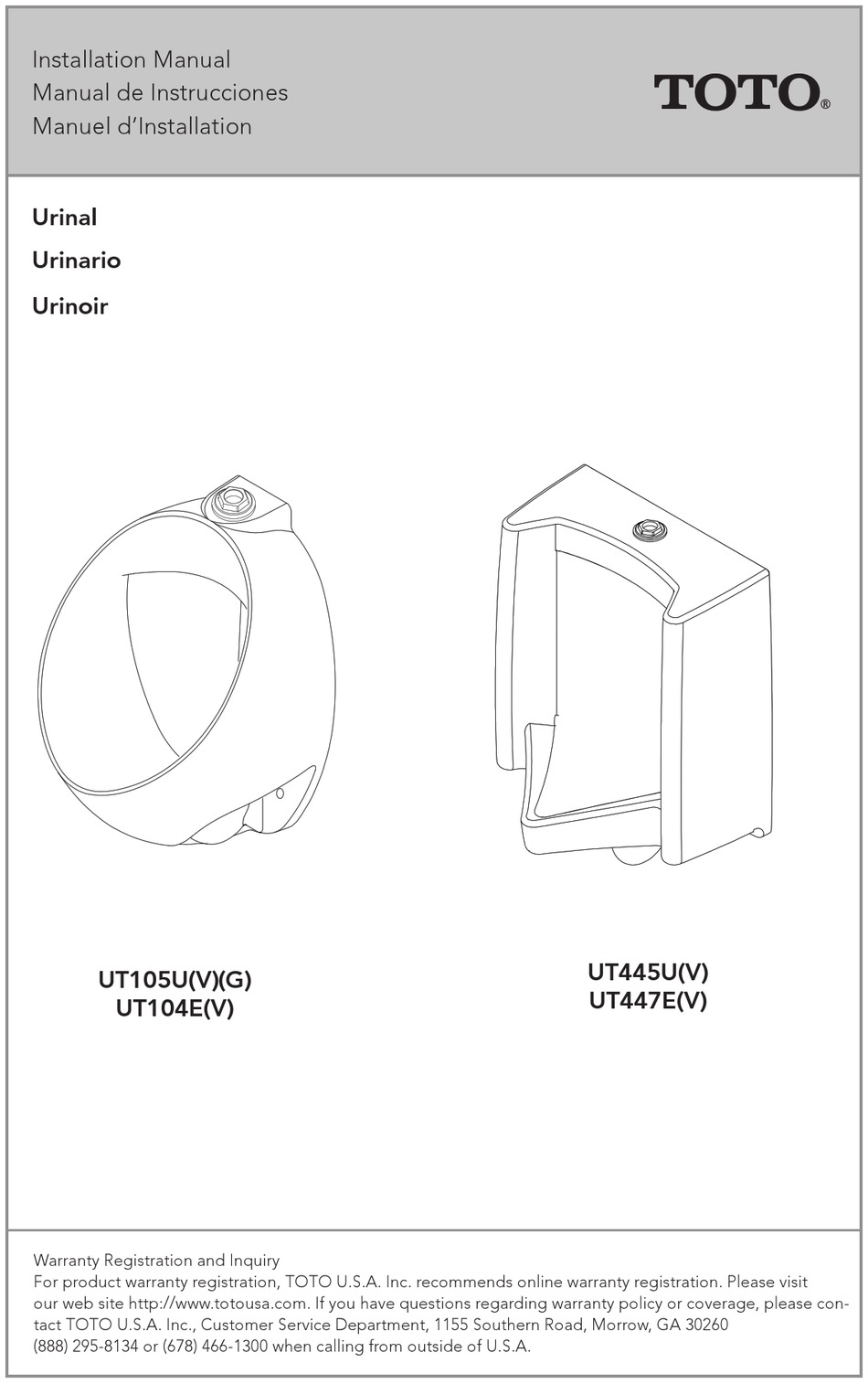

Installation Manual
Manual de Instrucciones
Manuel d'Installation
Urinal
Urinario
Urinoir
UT105U(V)(G)
UT104E(V)
Warranty Registration and Inquiry
For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit
our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con-
tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260
(888) 295-8134 or (678) 466-1300 when calling from outside of U.S.A.
UT445U(V)
UT447E(V)
Advertisement
Table of Contents
Related Manuals for Toto UT105U
Summary of Contents for Toto UT105U
- Page 1 UT104E(V) Warranty Registration and Inquiry For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con- tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260...
- Page 2 Warranty........................ 6 THANKS FOR CHOOSING TOTO! The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.
- Page 3 ROUGH-IN DIMENSIONS 3/4" (19mm) I.P.S. Supply for flush ometer V avlve 4-3/4" (121mm) F inish ed 14" W all 11-1/2" (356mm) (292mm) 12-1/4" 2-1/2" (61mm) (310mm) 3/4" (19mm) 12-1/4" Spud (310mm) 10-3/8" 21-1/4" (264mm) (540mm) 24" 19-1/4" (610mm) (490mm) Outlet 17"...
- Page 4 INSTALLATION PROCEDURE • Turn off water supply and if necessary remove the old urinal. • Install or relocate the water supply pipe and drain pipe to the specified rough-in dimensions shown above. • Install adequate support to mount the urinal. •...
- Page 5 URINAL STRAINER INSTALLATION VISUAL INSPECTION Remove part from plastic bag. Make sure all components are assembled as shown. INSTALLATION INSTRUCTIONS 1. Align the strainer to the trapway opening as shown. 2. Press the unit until the grate contacts the china. 3.
- Page 6 TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/ or reinstallation of the Product.
