SINK BASE PULLOUT - DOOR MOUNTING

TOOLS REQUIRED:
5
64

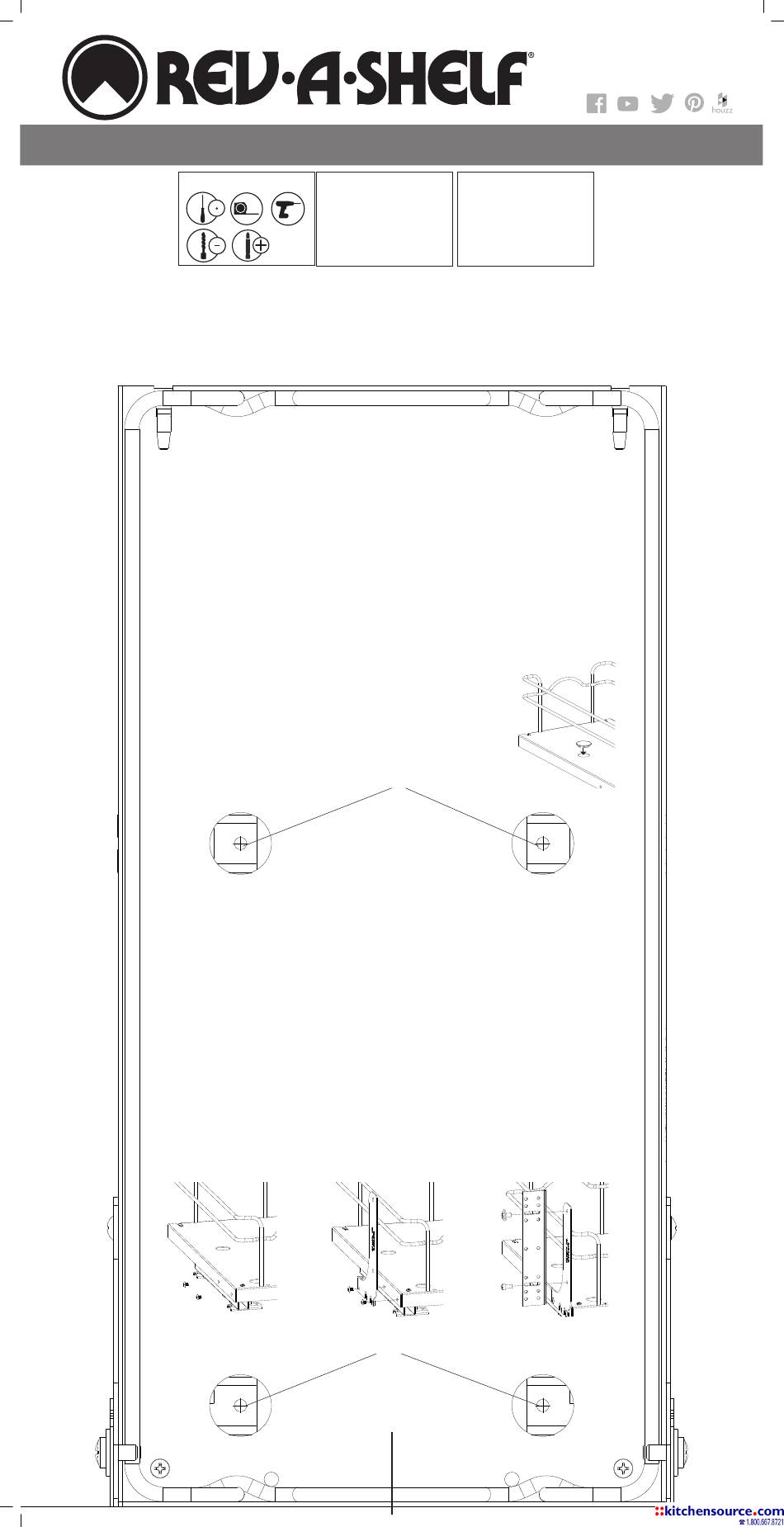

1) Place template into cabinet and align the front edge per cabinet type:
a. Overlay - Place at the front outside edge of cabinet
b. Inset door - Set back the thickness of the cabinet door
Align center line of template to center of opening.
2) Use an awl or pencil to mark the (4) screw locations and remove the template.
3) Pre-drill (4) 5/64" holes at screw locations.
4) Place frame in cabinet, lining up the holes and install screws.
5) Snap in (4) plastic caps to cover holes (See Fig A).

Door Mount Instructions:

1) Remove (2) screws from side of unit (See Fig B).
2) Install RV- Bracket to side of unit using (2) screws from step 1 (See Fig C).
3) Install Door Mount Bracket with (1) 1/4-20 pan head screw at bottom and (1) 1/4-20
pan head screw with washer at top (See Fig D).
4) Repeat steps 1-3 for the other side.
5) Follow instructions that came with door mount kit (sold separately).
Fig. B
CARE AND MAINTENANCE:
ESTIMATED ASSEMBLY
TIME:
20 MIN CLEAN WITH A DAMP CLOTH
AND WIPE PARTS DRY
Screw Locations
Fig. C
Screw Locations
Center line
Fig. A
Fig. D
