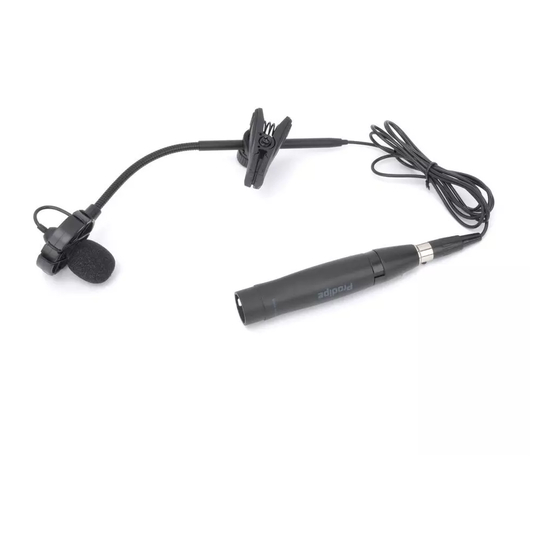

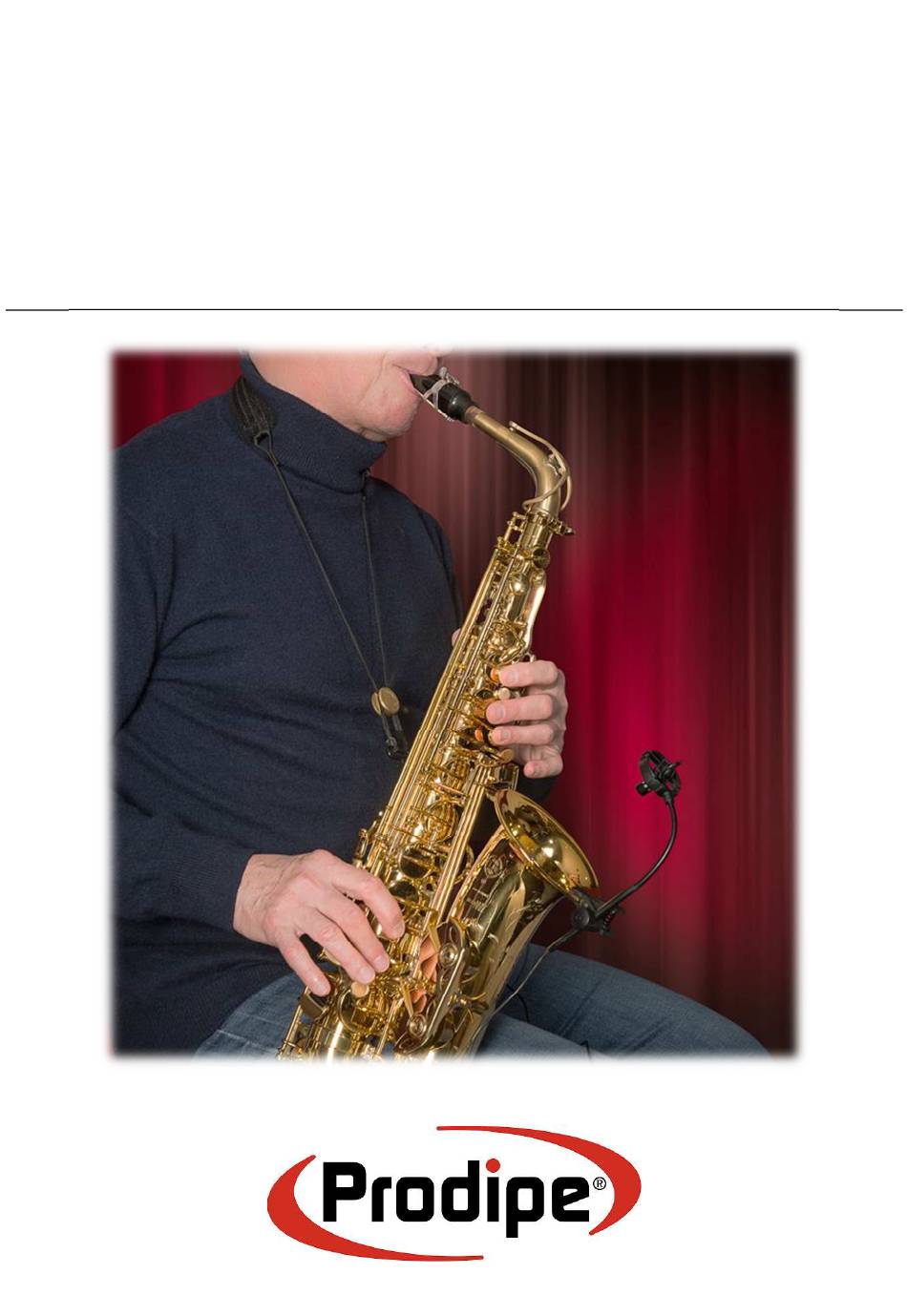

- Page 1 Lanen Series 21 from Prodipe SB21 Lanen Instrument Mic User Manual SB21 Lanen Sax / Brass / Percussion...
- Page 2 Safety Information Thank you for purchasing this digital appliance. To ensure perfect operation and security, please read the manual carefully and retain it for future reference. Precautions The lightning flash with the arrowhead symbol in an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage”...
- Page 3 The capsule for the Lanen SB21 is an electret capsule that can take up to 140dB. It will preserve the full harmonic and dynamic envelope of your instrument. The perfect, natural sound it creates is identical to the warmth and the sound within the instrument itself.
- Page 4 Attaching the Lanen Series 21 mic and positioning it in just the right place are extremely important when it comes to reproducing a high quality sound. Our range of purpose built clamps gives you the ideal balance between location and discretion. Lanen SB21 Clamp/Salmiéri PL21 Lanen GL21 Clamps Lanen VL21 Clamp...
- Page 5 6. Mini XLR to XLR adaptor with belt clip. Using the Lanen SB21 We have studied the positioning of the Lanen SB21 clamp to ensure that the capsule is able to access the very heart of the sound. With the flexible gooseneck you can adjust the distance between the source of the sound and the mic capsule to the nearest millimetre.
- Page 6 Technical Specifications • Sensitivity: -47dB ±3dB (0dB=1V/Pa to 1KHz) • Type: Electret cardioid • Max SPL: 140 dB • Output impedance: 2.2 KΩ • Directivity: Unidirectionnal • S/N ratio: 68dB • Frequency response: 50Hz to 20KHz • Connection: mini XLR, balanced •...
- Page 7 XLR audio input terminal and +48v phantom power. Safety precautions and guarantee conditions • Your Prodipe Lanen Series 21 mic is supplied with a windshield to protect the capsule. This windshield should always be kept clean so that the mic’s sound quality does not deteriorate.
- Page 8 Actual product(s) may differ from illustrations/photographs used Copyright © 2014 IPE Music...
