- Page 1 Lanen Series 21 from Prodipe GL21 Lanen Instrument Mic User Manual GL21 Lanen Acoustic Guitar / Ukulele...
-
Page 2: Safety Information
Safety Information Thank you for purchasing this digital appliance. To ensure perfect operation and security, please read the manual carefully and retain it for future reference. Precautions The lightning flash with the arrowhead symbol in an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage”... - Page 3 The Lanen Series 21 capsule The capsule for Prodipe’s Lanen Series 21 mic range has been designed for musicians requiring a mic that reproduces the sound of their acoustic instruments during live concerts. The capsule for the Lanen GL21 is an electret capsule that can take up to 140dB. It will preserve the full harmonic and dynamic envelope of your guitar or ukulele.
- Page 4 The Lanen Series 21 mic clamps Attaching the Lanen Series 21 mic and positioning it in just the right place are extremely important when it comes to reproducing a high quality sound. Our range of purpose built clamps gives you the ideal balance between location and discretion. Lanen SB21 Clamp/Salmiéri PL21 Lanen GL21 Clamps Lanen VL21 Clamp...

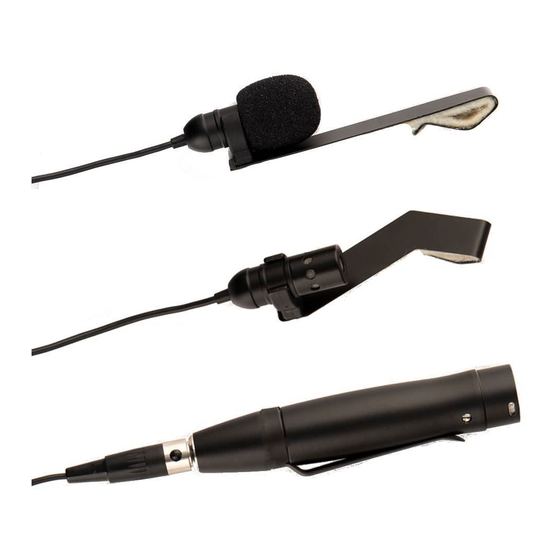

- Page 5 3 4 1 2 1. Lanen Capsule 21 + windshield. 2. Metal clamps with rubber vibration insulation. 3. Mic cable with mini XLR. 4. Mini XLR to XLR adaptor with belt clip. Using the Lanen GL21 It is vital that the capsule is directed towards the strings, so the two fixed clamps are positioned in such a way that the mic is able to access the very heart of the sound.
-
Page 6: Technical Specifications
Technical Specifications • Sensitivity: -47dB ±3dB (0dB=1V/Pa to 1KHz) • Type: Electret cardioid • Max SPL: 140 dB • Output impedance: 2.2 KΩ • Directivity: Unidirectionnal • S/N ratio: 68dB • Frequency response: 50Hz to 20KHz • Connection: mini XLR, balanced •... -
Page 7: Audio Connections
XLR audio input terminal and +48v phantom power. Safety precautions and guarantee conditions • Your Prodipe Lanen Series 21 mic is supplied with a windshield to protect the capsule. This windshield should always be kept clean so that the mic’s sound quality does not deteriorate. - Page 8 Actual product(s) may differ from illustrations/photographs used Copyright © 2014 IPE Music...
