- Page 1 Lanen Series 21 from Prodipe BL21 Lanen Instrument Mic User Manual BL21 Lanen Double Bass...
- Page 2 Safety Information Thank you for purchasing this digital appliance. To ensure perfect operation and security, please read the manual carefully and retain it for future reference. Precautions The lightning flash with the arrowhead symbol in an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage”...
- Page 3 The Lanen Series 21 capsule The capsule for Prodipe’s Lanen Series 21 mic range has been designed for musicians requiring a mic that reproduces the sound of their acoustic instruments during live concerts. The capsule for the Lanen BL21 is an electret capsule that can take up to 140dB. It will preserve the full harmonic and dynamic envelope of your double bass.
- Page 4 XLR to XLR adaptor (see photo below). This mini XLR to XLR adaptor provides the connection between the Lanen Series 21 mic mini XLR socket and the XLR cable from your PA system. A belt clip ensures that the adaptor is kept close to the body and that a normal wired distance is maintained.

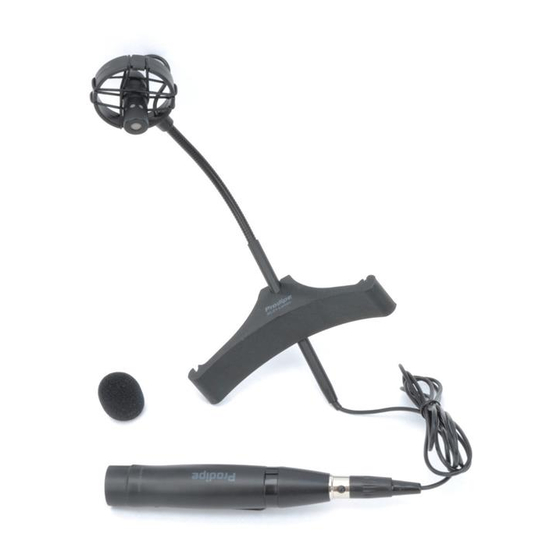

- Page 5 1. Lanen Capsule 21 + windshield. 2. Mic suspension. 3. Flexible gooseneck. 4. Rubber clamp. 5. Mic cable with mini XLR. 6. Mini XLR to XLR adaptor with belt clip. Using the Lanen BL21 We have studied the positioning of the Lanen BL21 clamp to ensure that the capsule is able to access the very heart of the sound.
- Page 6 Technical Specifications • Sensitivity: -47dB ±3dB (0dB=1V/Pa to 1KHz) • Type: Electret cardioid • Max SPL: 140 dB • Output impedance: 2.2 KΩ • Directivity: Unidirectionnal • S/N ratio: 68dB • Frequency response: 50Hz to 20KHz • Connection: mini XLR, balanced •...
- Page 7 Audio connections Connect the Lanen Series 21 mic mini XLR socket to the mini XLR to XLR adaptor. Connect your mic with an XLR to XLR cable (not included) to a mixing deck or any other equipment that has an XLR audio input terminal and +48v phantom power.
- Page 8 Actual product(s) may differ from illustrations/photographs used Copyright © 2014 IPE Music...
