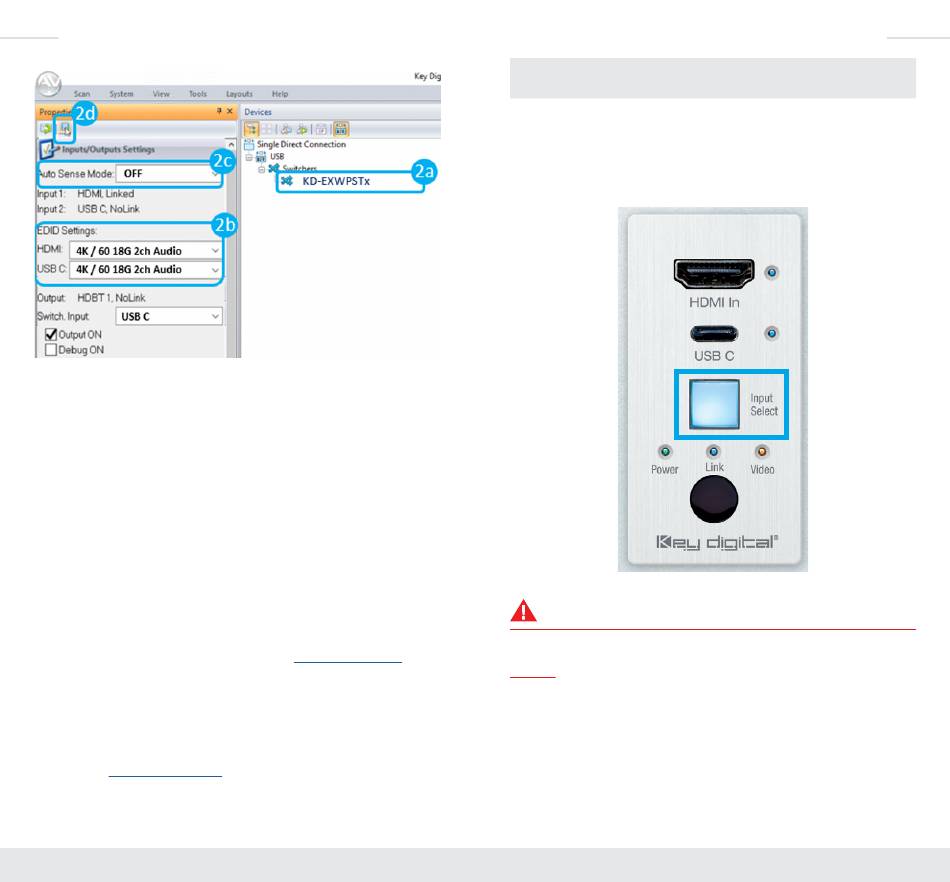

2. Choose the detected device from the Devices window (fig. 2a)
3. Choose the desired EDID handshake that you wish to provide to your
connect video sources (fig. 2b)
4. Set Auto Switching as desired (fig. 2c)
» When Auto Switching is On, the Input Select button backlighting
will illuminate solid.
» When set to Forced On, the Input Select button on the face
of the wall plate will no longer switch video sources. Instead
switching will only occur when a new source is connected, or an
active source is disconnected.
5. Save (fig. 2d)
6. Refer to the Connections, Buttons, and LEDs section of Operating
Manual for more information. Available via
Please visit
www.keydigital.com
and software downloads. Product features and specifications are
subject to change without notice.
KD-EXWPSTx
page.
for the latest product documentation
CONTROL:
Use the Input Select button to toggle between the HDMI or USB-C
source inputs or to activate Auto Switch mode
Press and hold for 3 seconds to activate Auto Switching. Solid
illumination of the backlighting indicates mode has been set
TEST FOR PROPER OPERATION!
Test for proper operation of the unit and cables in your system
BEFORE permanently securing the unit for final installation.
Ensure that you leave enough ventilation space to provide sufficient
airflow and cooling.
