2

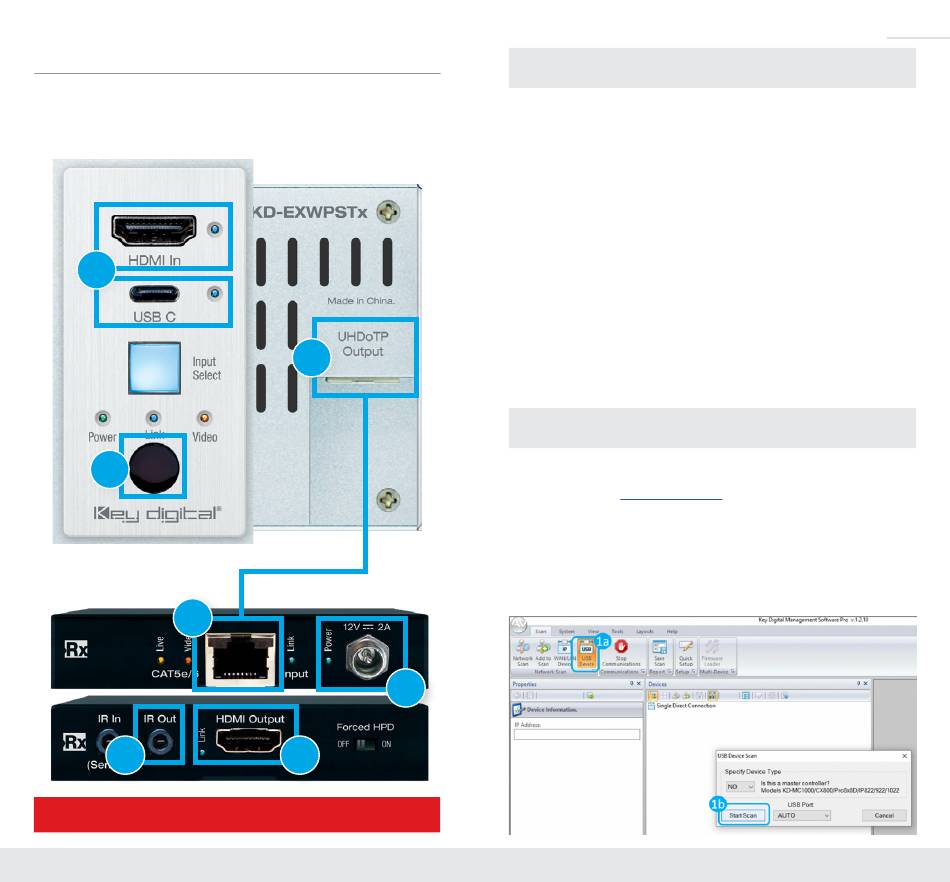

Quick Setup Guide
Begin with the KD-EXWPSTx and KD-EX18GRx, all sources,
display devices, audio system, and any other connected
peripherals powered OFF.
1
3
4
3
Always follow the instructions provided in this Setup Guide.
4
5
2
CONNECT:
1. Connect video sources into the HDMI and USB-C input ports of
KD-EXWPSTx
2. Connect video displays/projectors to the HDMI output port of
KD-EX18GRx (sold separately)
3. If collecting IR control signals at the wall plate, connect an IR
emitter to KD-EX18GRx's IR Out port and apply the emitter head to
the IR sensor of the device you wish to control.
4. Connect CAT5e/6 cabling from KD-EXWPSTx's UHDoTP output
to KD-EX18GRx UHDoTP input. Ensure that the cable meets the
required minimum length of 17ft / 5m.
5. Connect power. Screw-in power supply to the KD-EX18GRx unit,
and then connect power to outlet.
CONFIGURE:
Configure KD-EXWPSTx with Key Digital Management Software
Pro (KDMS
Pro).
Download HERE.
1. Connect to KD-EXWPSTx from your PC using the USB micro port
on the face of the unit. Open the KDMS
a USB scan (fig. 1a). Choose "NO" and Start Scan when the USB
Device Scan prompt appears (fig. 1b)
1
Pro software and perform
