Page 3: Table Of Contents
Brake belt contact surface ���������������������������������� 10 Chain 1/2“ x 1/8“ ������������������������������������������������� 11 Freewheel sprocket ��������������������������������������������� 12 Spare parts list ��������������������������������������������� 13 Important Read the manual carefully before using the cycle and save it for future use. 2018 MONARK EXERCISE AB, Vansbro, Sweden... - Page 4 Since the early 1900s, Monark bikes have been living proof of precision, reliability, strength and service. Those are the reasons why we now are the world leader in ergometer bikes and the market leader in Scandinavia in transport bikes.
-
Page 5: Product Information

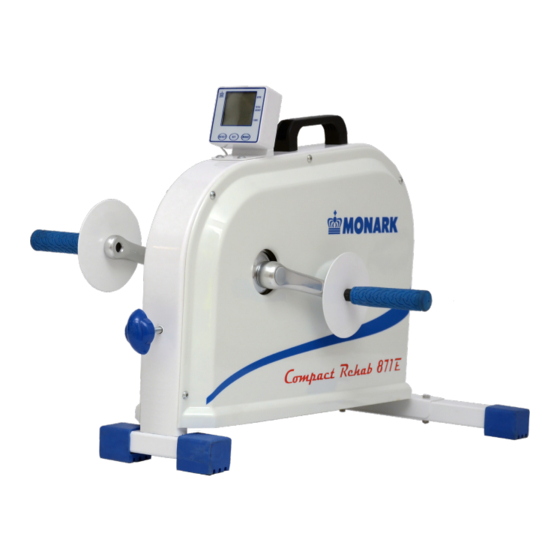

Congratulations on your new exercise bike! and time • Control knob for adjustment of brake force Monark Compact Rehab 871 E is a small, handy • Transport handle arm/leg trainer which is easy to use and has a smooth •... -
Page 6: Operating Instruction
Operating instruction Workload adjustment Monark Compact Trainer 871 E, is an arm and leg training machine equipped with an electronic meter. The meter shows pedal revolutions per minute, total number of pedal revolutions and a time function. Through cycling the test person supplies the flywheel with a certain kinetic energy. -
Page 7: Meter Instructions
SET button to set the desired value. Each press on SET button increases the value by 10. When rotating the pedals / handles, countdown counting will automatically start and count down to 0, with a beep being heard for five seconds. Monark 871 E... -
Page 8: Troubleshooting Guide
Check that the carriage block is taken off and that none of the covers is handles are moving. scratching. There is a click noise and a squeak noise • Loosen the chain. when pedals / handles are moving. Monark 871 E... -
Page 9: Service
EC Directive 1999/44/EC. In short, be damaged. Also check that pedal arms are firmly the directive states for that your Monark Dealer will tightened on the crank axle, tighten if necessary. be liable for any defects, which existed at the time of When the ergometer is new it is important to tighten delivery. -
Page 10: Batteries
See ”Brake belt contact surface”. The flywheel bearing is long-term greased and requires no supplementary lubrication. If a problem arises, please contact your Monark dealer. Brake belt contact surface Crank bearing Deposits of dirt on the brake belt and on the contact... -
Page 11: Chain 1/2" X 1/8
Otherwise the chain Fig: Chain replacement 4) Lock spring and sprockets make a lot of noise and wear out rapidly. 5) Movement direction 6) Chain lock Then assemble the removed parts as above but in reverse order. Monark 871 E... -
Page 12: Freewheel Sprocket
The sprocket should be lubricated with a few drops of oil once a year. Tilt the bike to make it easier for the oil to reach the bearing. See Fig: Lubrication. Fig: Lubrication Fig: Hub assembly Monark 871 E... -
Page 13: Spare Parts List
Dust cover for crank 1210 -Sprocket 14T 9371-51 Cover, right 9371-30 Brake belt, complete 5673-9 Screw 9327-6 Support tube 9145-71 Handle, pair 9300-215 Pedal (pair) 9371-71 Handcover 9300-207 Foot straps (pair) 9371-16 Magnet 9371-55-1 Chain 9300-320 BB cartridge bearing Monark 871 E... - Page 14 Notes: ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................... Monark 871 E...
- Page 15 Notes: ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................... Monark 871 E...
- Page 16 Version 1804 Art. No: 7950-304 KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81...
