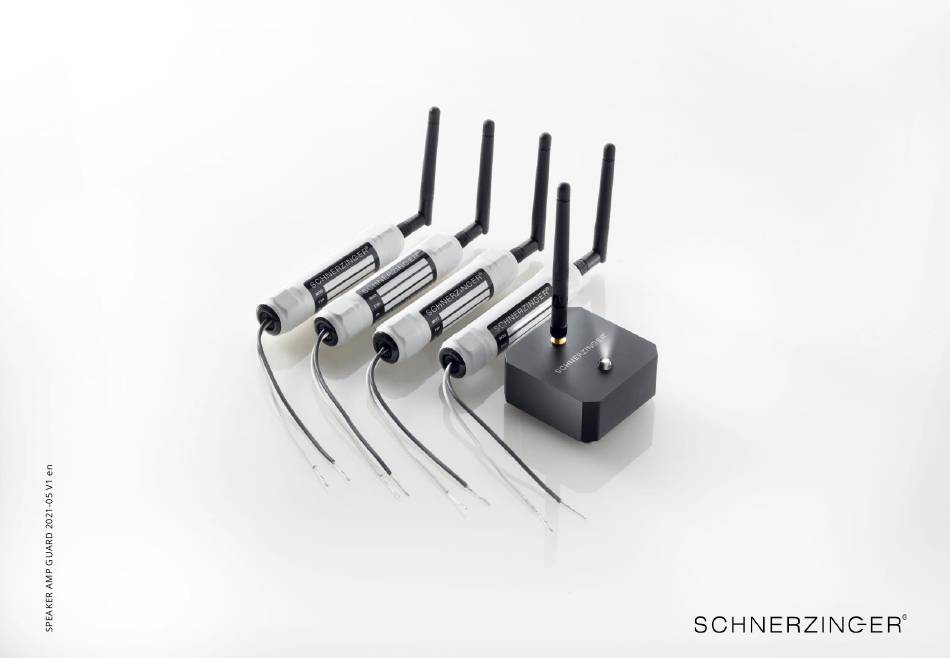

Page 1 SPEAKER AMP GUARD Picture similar...
Page 2 Dimensions and weight (l x w x h in cm, weight in kg) SPEAKER AMP GUARD MASTER 7 x 7 x 3.5 (without antenna), 0.3 The antennas are 11 cm long. Please clean the product with a non-scratching dry duster only. Avoid using cleaning agents.
Page 3 In contrast the SPEAKER AMP GUARD actively operates right in the equipment, in the immediate vicinity of the signal-transmitting components. With its GIGA CANCELLING technology, it protects the sensitive components of the speaker crossover, the power amplifier...
Page 4 Two recommended connection variants for one SPEAKER AMP GUARD set: Connecting to the amplifier • One unit of the SPEAKER AMP GUARD set is connected to the right speaker output, the other to the left speaker output at the amplifier.
Page 5 1. Step: Base setting master The SPEAKER AMP GUARD MASTER should be placed close to the amplifier or between the speakers. Usually (power level 1), the master will be operated without the 12V power supply. To maintain its performance, it should be connected to the grid with CONTROL UNIT and 12V power supply once a year for 15 minutes.
Page 6 If after a while you once want to hear the performance of your system without your SPEAKER AMP GUARD, the buffering effect absolutely has to be considered. If the SPEAKER AMP GUARD is switched off for a short time only, it still takes effect because of the buffering of the power supply unit.
