Summary of Contents for SCHNERZINGER GROUND PROTECTOR

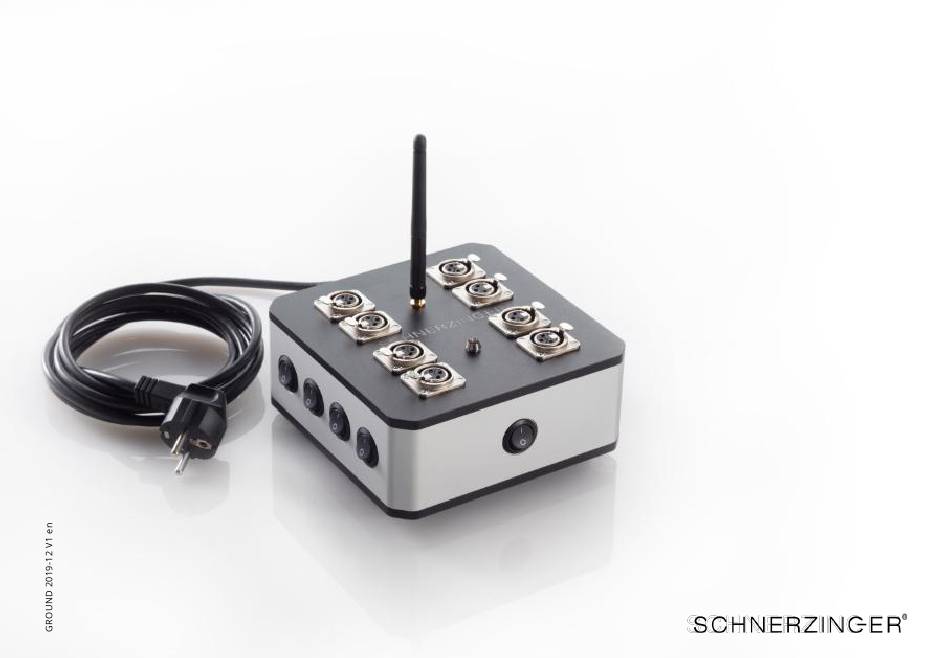

- Page 1 GROUND PROTECTOR Picture similar...
- Page 2 There are no informed crystals in the devices. Setting up a SCHNERZINGER system In case of malfunctions contact your SCHNERZINGER dealer. Please do not attempt to service the device yourself or to open it, in that case you Connecting the Hi-Fi Components will lose your entitlement for our manufacturer warranty.
- Page 3 Moreover the bidirectional operating device connections (GROUND INTERFACES) prevent transmission of interfering fields between the Hi-Fi devices. The operating principle and efficiency of the GROUND PROTECTOR are unique; a single GRID PROTECTOR raises the potential of the entire music system to a new level.
- Page 4 EMI PROTECTOR, GIGA PICCOLO PROTECTOR, GIGA GUARD, GIGA PROTECTOR If you add your device to an already existing SCHNERZINGER chain, outstanding results will be obtained mostly when all devices will keep their former settings and just the additional product will be installed and configured as described in its manual.
- Page 5 INTERFACES, available in the grades** REFERENCE and EXTREME. It’s recommended to connect all key components of the Hi-Fi system to the GROUND PROTECTOR, starting with the major source, the other sources and further on in the direction of signal flow through the preamp to the power amplifier. The particular Hi-Fi component should be switched off* during installation.
- Page 6 Setting up the GROUND PROTECTOR The GROUND PROTECTOR has three power levels and two functional circuits to simply adjust bandwidth and clock rate of GIGAHERTZ CANCELING technology via toggle switches. This makes it possible to adapt to any interference field spectrum. The change in bandwidth extends or decreases the detection range, changing the clock rate the processing speed.
- Page 7 Setting up the GROUND PROTECTOR 5. Step: Switches left: 6. Step: Switches right: Functional circuit I – setting the bandwidth Functional circuit II – setting the clocking Switches: L1 = narrow L4 = wide Switches: R1 = low R4 = high...
- Page 8 If after a while you once want to hear the performance of your system without your GROUND PROTECTOR, the buffering effect absolutely has to be considered. If the GROUND PROTECTOR is switched off for a short time only, it still takes effect because of the buffering of the power supply unit.
