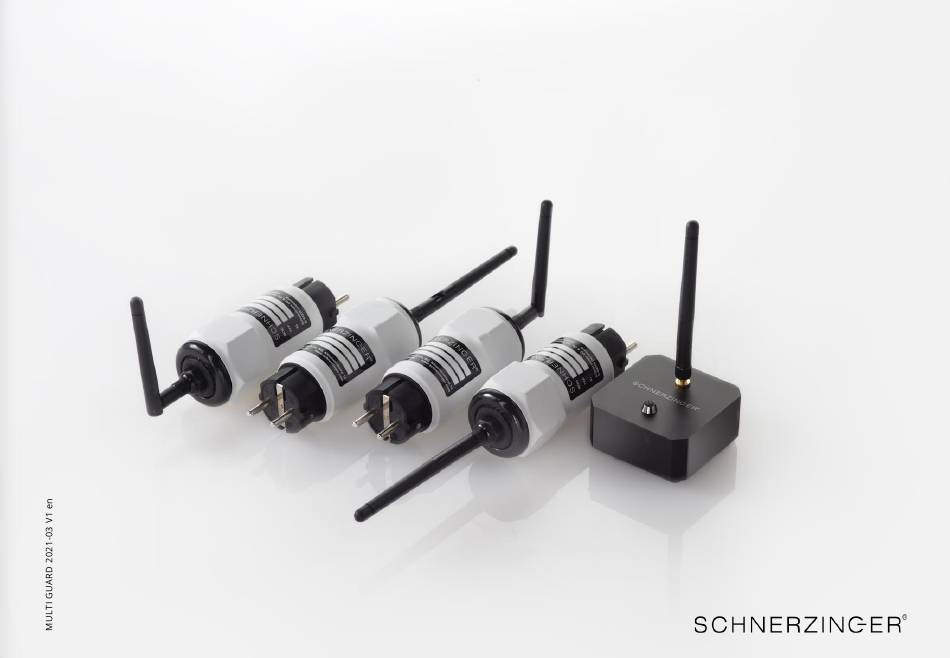

- Page 1 MULTI GUARD Picture similar...
- Page 2 This guide facilitates your use of the product, promotes understanding its functional characteristics and helps you to obtain the full efficiency 4, 6 or 8 MULTI GUARD unit of the variants of the product. PHASE, EARTH and ROOM (at buyer‘s option) We hope you enjoy your new SCHNERZINGER product.
- Page 3 (computer, router, etc.). Distributed in the room, they form a comprehensive ROOM SHIELD thanks to their coupling function. The operating principle and efficiency of the GRID PROTECTOR / MULTI GUARD system are unique and raise the potential of the entire music system to a completely new level.
- Page 4 Use of MULTI GUARD The use of the GRID PROTECTOR is an indispensable prerequisite for the use of the MULTI GUARD. It takes on the control and coupling function for all MULTI GUARDs. The GRID PROTECTOR is an extreme powerful central unit and is recommended to connect to the first slot in the Hi-Fi system power distributor, but may also achieve its best results at another socket, at different phase or even in another room.
- Page 5 Use of MULTI GUARD A common successful approach is to comprehensively clear up the domestic power grid by using the GRID and several MULTI GUARDs. MULTI GUARDs of the PHASE variant are used to clear up the individual phases of the current conductors and MULTI GUARDs of the EARTH variant to clear up the protective conductor.
- Page 6 Use of MULTI GUARD The table shows the performance spectrum of the individual MULTI GUARD variants.
- Page 7 The use of the GRID PROTECTOR is an indispensable prerequisite for the use of the MULTI GUARD. As GRID PROTECTOR and MULTI GUARD form a system, they must be set up together. As a result, the switch positions of the GRID in the GRID / MULTI GUARD system may differ from the setting of a GRID without MULTI GUARD.
- Page 8 Retain the option with the best effect. Preferably the master should have an elevated central position Then a second MULTI GUARD PHASE is tested in the same way as within the listening room. Usually (power level 1), it will be operated above, and possibly another MULTI GUARD PHASE.
- Page 9 4. Step: MULTI GUARD EARTH 5. Step: MULTI GUARD ROOM Connect the first MULTI GUARD EARTH*. By turning and bending at Because MULTI GUARD PHASE and EARTH already include a ROOM the hinge the antenna has to be brought to upright position for function, the MULTI GUARD ROOM should only be used if further proper functioning.
- Page 10 Setting up the MULTI GUARD 6. Step: GRID PROTECTOR switches left: 7. Step: GRID PROTECTOR switches right: Functional circuit I – setting the bandwidth Functional circuit II – setting the clocking Switches: L1 = narrow L4 = wide Switches: R1 = low...
- Page 11 Setting up the MULTI GUARD 9. Step: Switch at the master – adjustment of the power level: If power level 1 is not sufficient for the present interference field spectrum, 2 additional power levels can be activated. This requires the permanent connection of the 12V power supply* to the master and the grid.
- Page 12 If after a while you once want to hear the performance of your system without your MULTI GUARD, the buffering effect absolutely has to be considered. If the MULTI GUARD is switched off for a short time only, it still takes effect. But it only requires up to 15 minutes to reach its maximum performance.
