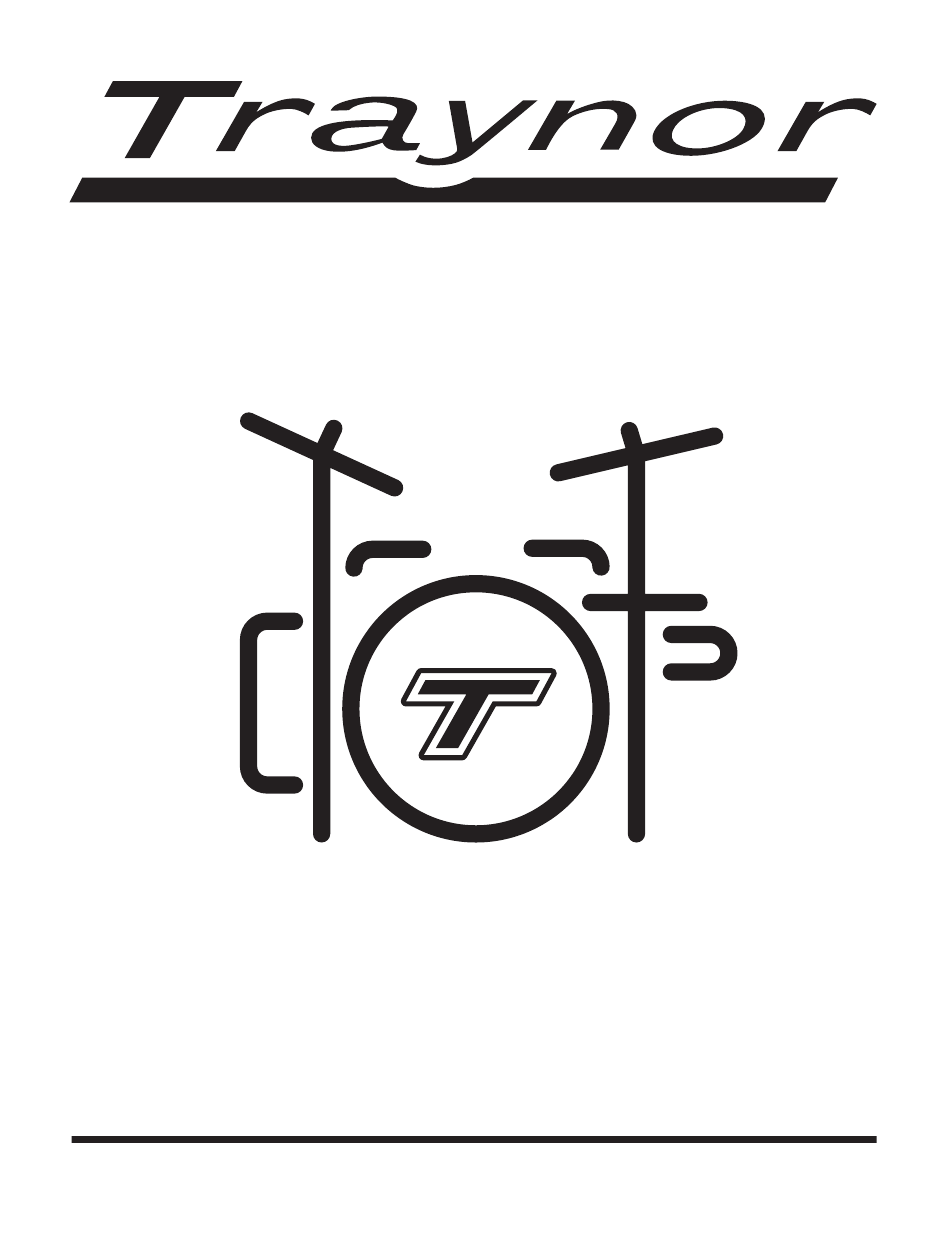

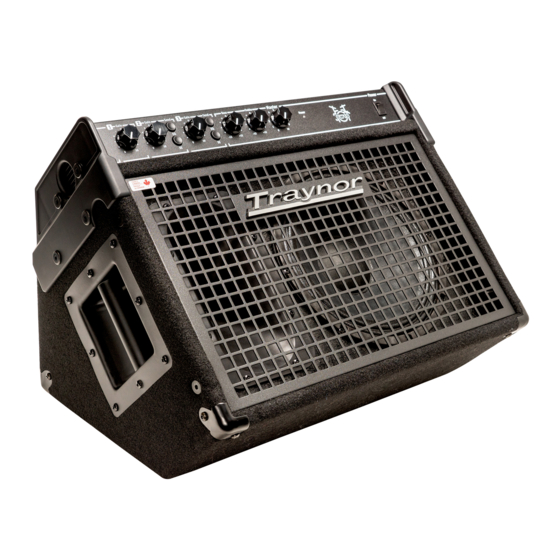

- Page 1 Quality & Innovation • Established 1963 DW10 D R U M A M P L I F I E R TYPE: YS1120...
- Page 2 I M PO RTA NT S AFE T Y INS T RUCTI O NS This lightning flash with arrowhead symbol, within The exclamation point within an equilatereal triangle is intended to alert the an equilateral triangle, is intended to alert the user to the presence of user to the presence of important operating and maintenance (servicing) uninsulated “dangerous voltage”...
- Page 3 3. EQ Send Switch (Ch. 2-3) Unlike Channel 1, you are able to bypass the DW10’s tone controls for Channels 2 and 3. By default, the signals from these channels bypass the bass and treble controls. If you wish for either of them to be affected by the tone controls, press this switch in.
- Page 4 Input Input Input DI Out Master Power Gain Gain Send Gain Send Bass Treble clip clip clip clip Power Gain Control Clip LED EQ Send Switch DI Send Switch Bass Control Treble Control Master Control Master Clip LED Power LED Channel 1-3 Left/Mono + Right Input Jacks –...
-
Page 5: Rear Panel
DW10’s working properly. If there is a fault in the power amplifier, the LED color will return to red. Note: If the light turns red or stays red, first try power-cycling the DW10. If this does not clear the fault you should refer to a qualified service technician. - Page 6 Specifications* Power @ min. impedance (watts) Speaker Configuration - LF (Size / Power) 10-inch Speaker Configuration - HF (Size / Power) 1-inch Compression Driver Inputs Channel 1 - Inputs 2 x 1/4-inch Balanced/Unbalanced Stereo Channel 1 - Controls Gain Channel 2 - Inputs 2 x 1/4-inch Balanced/Unbalanced Stereo Channel 2 - Controls Gain, EQ Send, DI Send...
- Page 7 3. Interrupteur EQ Send (C. 2-3) Vous pouvez contourner les commandes de tonalité du DW10 sur les canaux 2 et 3. Par défaut, les signaux de ces canaux ne sont affectés par le commandes Bass et Treble. Si vous souhaitez que le signal de l’un ou l’autre de ces canaux (ou les deux) soit acheminé...
- Page 8 Input Input Input DI Out Master Power Gain Gain Send Gain Send Bass Treble clip clip clip clip Power Commande de Gain DEL Clip Interrupteur EQ Send Interrupteur DI Send Commande Bass Commande Treble Commande Master DEL Clip Master Voyant d’Alimentation Canaux 1-3 Entrées Gauche/Mono &...
-
Page 9: Section Principale
Bass et Treble. 7. Commande Master C’est la commande de volume principal pour le DW10. Elle règle le niveau de sortie global. 8. DEL Clip (Master) La DEL clip de la section Master fonctionne de façon similaire aux DEL clip de canal mentionnés ci dessus, mais elle est activée par le signal au niveau des commandes de tonalité... -
Page 11: Two Year Warranty
Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date, simply return it to your Traynor dealer with original proof of purchase and it will be repaired free of charge. - Page 12 U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689 Manual-Owners-DW10-00-1v0 • January 4, 2017...
