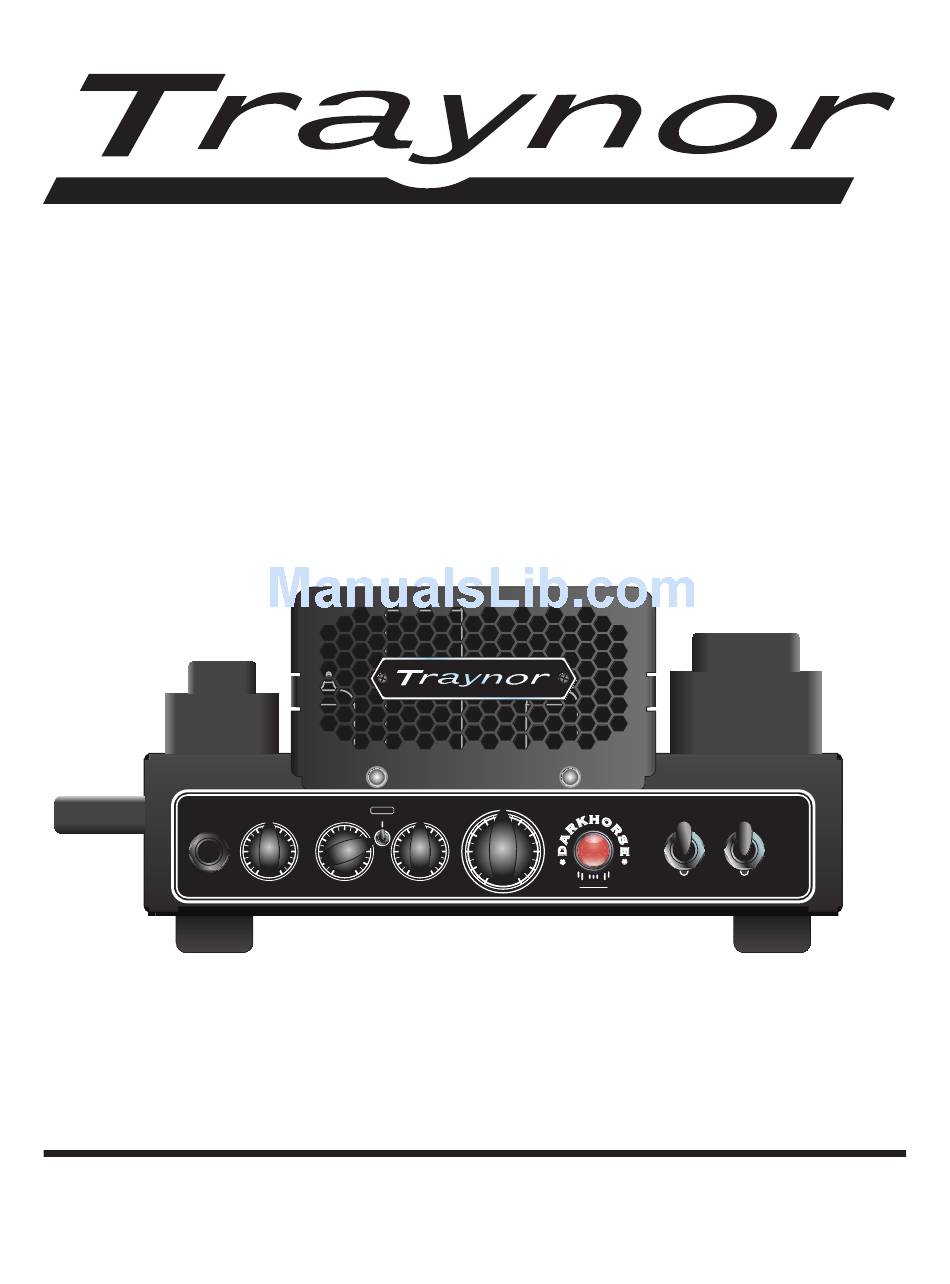

- Page 1 Master Brit Pure Gain Bass Treble Input 12AU7 Pentode Triode MODEL TYPE: YS1085 DarkHorse DH15H A l l T u b e G u i T A r A m p l i f i e r...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS This lightning flash with arrowhead symbol, within The exclamation point within an equilatereal triangle is an equilateral triangle, is intended to alert the user to intended to alert the user to the presence of important the presence of uninsulated “dangerous voltage” operating and maintenance (servicing) instructions in within the product’s enclosure that may be of sufficient the literature accompanying the appliance.
-
Page 3: Quick Start Instructions
DarkHorse is suited for use in the studio and on stage. Taking cues from Traynor’s 50 years in the amp business, the DarkHorse is a stripped down piece of gear – but don’t let that fool you into thinking this DarkHorse is a one trick pony! With two user selectable output stages and three unique tonestack voicings, it’s like getting six... -
Page 4: Chassis Layout
Master Brit Pure Gain Bass Treble Input 12AU7 Pentode Triode *DARKHORSE* SPE AKE R O U TPU T Speaker Configuration MODEL ATTENTION: Before powering unit on, TYPE: YS1085 DISCONNECT POWER make sure speakers are connected 1 x 1 6 BEFORE SERVICING! DEBRANCHER L’APPEREIL AVANT D’ENLEVER LES COUVERCLES! 1 x 8... - Page 5 8. Speaker Cabinets On the rear of the DH15H you’ll find a 16-ohm output jack and a pair of 8-ohm output jacks. This allows for a variety of cabinets to be connected to your amp.
- Page 6 * TIP #1: The DarkHorse’s tonestack is not the typical circuit found in most amps. It’s based on a tonestack found in several vintage Traynor amps and has a lot of range on the controls. To start off, set the Bass and Treble to their mid position (the amp was designed and voiced with the controls in this position).
-
Page 7: Guide De Démarrage Rapide
Tirant de ses 50 années d’expérience dans l’industrie de l’amplification, le DarkHorse de Traynor est un appareil sans superflus – mais soyez certain que le DarkHorse est bien plus qu’un simple amplificateur! Avec deux étage de sortie commutable par l’utilisateur et trois sonorisation Tonestack uniques, c’est comme se munir de six amplificateur en un! - Page 8 Master Brit Pure Gain Bass Treble Input 12AU7 Pentode Triode *DARKHORSE* SPE AK ER OUT PUT Speaker Configuration MODEL ATTENTION: Before powering unit on, DISCONNECT POWER TYPE: YS1085 make sure speakers are connected 1 x 1 6 BEFORE SERVICING! DEBRANCHER L’APPEREIL AVANT D’ENLEVER LES COUVERCLES! 1 x 8 CAUTION: REPLACE WITH...
- Page 9 5. Master La commande Master règle le niveau du volume général du DH15H. Utilisez la non seulement pour ajuster le volume mais aussi en conjonction avec la commande de Gain pour varier la qualité...
- Page 10 8. Enceintes de Haut-Parleur Vous trouverez à l’arrière du DH15H une prise de sortie 16 ohms et une paire de prise de sorties 8 ohms. Ceci permet le raccordement à votre amplificateur d’une bonne variété de type d’enceintes. Notez que les prises 8 ohms sont internement connectés en parallèle et rappelez-vous aussi que vous souhaitez avoir une impédance totale de 8 ohms.
- Page 11 Spécifications DarkHorse DH15H Modèle: Tête d’amplificateur pour guitare Type: mode 6V6: 12 watts; mode 12AU7: 0.8 watts Puissance @ impédance min. (Watts): mode 6V6: 15 watts; mode 12AU7: 2 watts Suramplification brusque - 2 cycles: Canaux d’Entrées: 1/4 pouce, phone Canal 1 - entrées:...
- Page 12 DH15H SUGGESTED SETTINGS settings-suggested-123-DH15H-00-1v0.ai...
- Page 13 SETTINGS SUGGESTED DH15H...
- Page 14 DH15H USER SETTINGS settings-user-DH15H-00-1v0.ai...
- Page 15 SETTINGS USER DH15H...
-
Page 17: Two Year Warranty
Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date, simply return it to your Traynor dealer with original proof of purchase and it will be repaired free of charge. - Page 18 CANADA U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689 Manual-Owners-DH15H-00-1v0 • March 23/2010...
