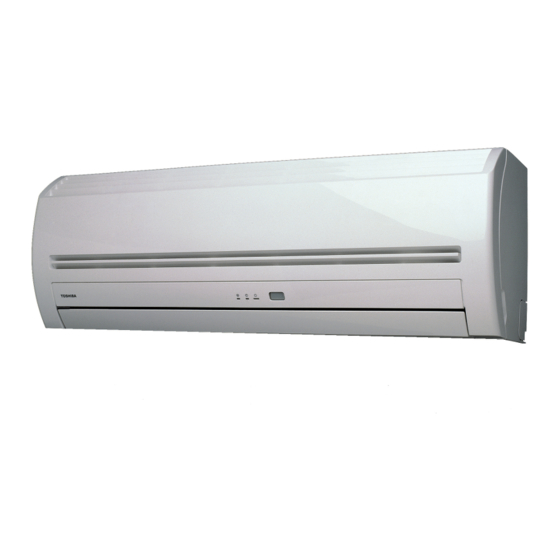

AIR CONDITIONER (MULTI TYPE)
Owner's Manual
Indoor Unit
Model name:
High-Wall Type
MMK-AP0074MH-E
MMK-AP0054MHP-E
MMK-AP0094MH-E
MMK-AP0074MH-E
MMK-AP0094MH-E
MMK-AP0124MH-E
MMK-AP0124MH-E
MMK-AP0074MHP-E1
MMK-AP0054MHP-E1
MMK-AP0094MHP-E1
MMK-AP0074MHP-E1
MMK-AP0124MHP-E1
MMK-AP0094MHP-E1
MMK-AP0124MHP-E1
For commercial use
Owner's Manual
English
Advertisement
Table of Contents
Related Manuals for Toshiba MMK-AP0074MHP-E
Summary of Contents for Toshiba MMK-AP0074MHP-E
- Page 1 AIR CONDITIONER (MULTI TYPE) Owner’s Manual For commercial use Indoor Unit Model name: High-Wall Type MMK-AP0074MH-E MMK-AP0054MHP-E MMK-AP0094MH-E MMK-AP0074MH-E MMK-AP0094MH-E MMK-AP0124MH-E MMK-AP0124MH-E MMK-AP0074MHP-E1 MMK-AP0054MHP-E1 MMK-AP0094MHP-E1 MMK-AP0074MHP-E1 MMK-AP0124MHP-E1 MMK-AP0094MHP-E1 MMK-AP0124MHP-E1 English Owner’s Manual...
-
Page 2: Table Of Contents
High-Wall Type SMMS High-Wall Type Thank you very much for purchasing TOSHIBA Air Conditioner. Please read this owner’s manual carefully before using your Air Conditioner. • Be sure to obtain the “Owner’s manual” and “Installation manual” from constructor (or dealer). - Page 3 Toshiba Carrier Corporation or, alternatively, he or she has been instructed in such matters by an individual or individuals who have been trained and is thus thoroughly acquainted with the knowledge related to this work.
- Page 4 Owner’s Manual High-Wall Type SMMS High-Wall Type Warning indications on the air conditioner unit Warning indication Description WARNING WARNING ELECTRICAL SHOCK HAZARD ELECTRICAL SHOCK HAZARD Disconnect all remote Disconnect all remote electric power supplies before electric power supplies servicing. before servicing. WARNING WARNING Moving parts.
-
Page 5: Precautions For Safety
Owner’s Manual High-Wall Type SMMS High-Wall Type Precautions for Safety WARNING General • Carefully read Owner’s Manual before starting the air conditioner. There are many important things to keep in mind for daily operation. • Ask for installation to be performed by the dealer or a professional. Only a qualified installer (*1) is able to install an air conditioner. - Page 6 Owner’s Manual High-Wall Type SMMS High-Wall Type Operation • Before opening the intake grille of the indoor unit or service panel of the outdoor unit, set the circuit breaker to the OFF position. Failure to set the circuit breaker to the OFF position may result in electric shocks through contact with the interior parts.
- Page 7 Owner’s Manual High-Wall Type SMMS High-Wall Type Repairs • If there is any kind of trouble (such as when an error display has appeared, there is a smell of burning, abnormal sounds are heard, the air conditioner fails to cool or heat or water is leaking) has occurred in the air conditioner, do not touch the air conditioner yourself but set the circuit breaker to the OFF position, and contact a qualified service person.
- Page 8 Owner’s Manual High-Wall Type SMMS High-Wall Type CAUTION To disconnect the appliance from the main supply. • This appliance must be connected to the mains by means of a switch with a contact separation of at least 3 mm. The installation fuse (all types can be used) must be used for the power supply line of this air conditioner.
- Page 9 Owner’s Manual High-Wall Type SMMS High-Wall Type Information on the transportation, handling and storage of the carton Examples of indication on the carton Symbol Description Symbol Description Keep dry Do not drop Fragile Do not lay down Stacking height 11 cartons Do not walk on this carton (12 cartons can be stacked in this case)
-
Page 10: Accessory Parts
Owner’s Manual High-Wall Type SMMS High-Wall Type Accessory Parts Remote controller Remote controller holder Batteries (two) (R03 [AAA]) Parts Name Indoor unit TIMER SET MODE TIME SAVE VENT FILTER RESET TEST SWING/FIX UNIT LOUVER Room temperature sensor Horizontal airflow louver Front panel Vertical airflow louver Air intake grille... - Page 11 Owner’s Manual High-Wall Type SMMS High-Wall Type Names and functions of CAUTION indicators and controls on indoor unit • Disagreement in operation mode If AUTOMATIC OPERATION is selected in a model (except Super Heat Recovery Multi) with Display panel no auto-changeover control setting or if you select HEAT in a Cooling Only model, an alarm sound (pi, pi) from the air conditioner due to disagreement in operation mode.
-
Page 12: Parts Name Of Remote Controller
Owner’s Manual High-Wall Type SMMS High-Wall Type Parts Name of Remote Controller Wireless remote controller and (LOW , LOW , MED , HIGH its functions (A receiving beep is heard.) Auto louver button (SWING) Push this button to swing the louver. (A receiving beep is heard.) Push the SWING button to stop the louver swinging. - Page 13 Owner’s Manual High-Wall Type SMMS High-Wall Type Names and functions of ECO TIMER display Indicates when the ECO TIMER is in operation. indications on wireless remote Each time the ECO button is pushed, the display controller changes in the sequence of 1, 3, 5 or 9 h. AUTO Display All indications, except for clock time indication, are...
- Page 14 Owner’s Manual High-Wall Type SMMS High-Wall Type Preparation and check before Loading Batteries Remove the cover, and insert 2 new batteries (R03 [AAA]). Push the RESET button. The clock display flashes. Adjust the clock. Place back the cover. • Slide off the cover while pushing the sides. •...
-
Page 15: Adjusting Clock
Owner’s Manual High-Wall Type SMMS High-Wall Type Adjusting Clock Setting the clock Clock adjusting Before you start operating the air conditioner, set the clock of the remote controller using the procedures given in this section. The clock panel on the remote controller will indicate the time regardless of whether the air conditioner is in use or not. -
Page 16: Limited Operation By Group Control
Owner’s Manual High-Wall Type SMMS High-Wall Type Limited Operation by Group Control NOTE Group control: Operate air conditioners in more than one system in same time. Header indoor unit: The representative unit during group control. Receive commands from wired remote controller and transmit the commands to follower units. -
Page 17: Handling The Remote Controller
Owner’s Manual High-Wall Type SMMS High-Wall Type Handling the Remote Controller Remote controller holder CAUTION Installing the remote controller holder • The air conditioner will not operate if curtains, • Before you actually install the remote controller doors or other materials block the signals from holder on a wall or pillar, check whether the the remote controller to the indoor unit. -
Page 18: How To Use Remote Controller
Owner’s Manual High-Wall Type SMMS High-Wall Type How to Use Remote Controller Cooling / heating / fan only NOTE operation When the indoor unit is operated together with a cooling only outdoor unit, (Heat) appears on the Start remote controller but the heating operation is disabled. - Page 19 Owner’s Manual High-Wall Type SMMS High-Wall Type Automatic operation Automatic operation (auto changeover) This function is available only for use in combination with a heat recovery model outdoor Start unit. If this function is used with another model of outdoor unit, “A” (Auto) appears on the remote controller but the automatic operation is disabled.
- Page 20 Owner’s Manual High-Wall Type SMMS High-Wall Type Timer operation CAUTION Use the wired remote controller for timer setting if it • When the timer operation is selected, the is also in use. remote controller automatically transmits the ON timer and OFF timer timer signal to the indoor unit at the specified time.
- Page 21 Owner’s Manual High-Wall Type SMMS High-Wall Type Combined timer (Setting both ON and ON timer —> OFF timer (Stop —> Operation —> Stop) OFF timers simultaneously) You can use this setting to start the air conditioner OFF timer —> ON timer when you wake up and stop it when you leave the (Operation —>...
- Page 22 Owner’s Manual High-Wall Type SMMS High-Wall Type Every day combined timer (setting both High power operation ON and OFF timer simultaneously and activate every day.) High power (Hi POWER) This feature is useful when you want to use • The Hi POWER (high power operation) mode combined timer at the same time every day.
- Page 23 Owner’s Manual High-Wall Type SMMS High-Wall Type Memory / Preset Operation To operate the air conditioner with the setting memorized by the MEMO button. Memorize the frequently used operation setting by the MEMO button for convenience. Start the air conditioner in the operation mode which you want the remote control to memorize.
- Page 24 Owner’s Manual High-Wall Type SMMS High-Wall Type Adjusting airflow direction To automatically swing the airflow direction • Adjust the airflow direction properly. Otherwise, it Perform this function when the air conditioner is in might cause discomfort and make the room operation.
- Page 25 Owner’s Manual High-Wall Type SMMS High-Wall Type CAUTION • The FIX and SWING buttons will be disabled when the air conditioner is not in operation (including when the ON timer is set). • Do not operate the air conditioner for long hours with the airflow direction set downward during the cooling or dry operation.
-
Page 26: Hints For Economical Operation
Owner’s Manual High-Wall Type SMMS High-Wall Type Hints for Economical Operation Maintain room temperature at comfortable level Clean air filters The clogged air filters impairs the performance of the air conditioner. Clean them once two weeks. Do not open doors and windows more Gee, chilly often than necessary Control... -
Page 27: Temporary Operation
Owner’s Manual High-Wall Type SMMS High-Wall Type Temporary Operation TEMPORARY operation This function is used to operate the unit temporarily if the wireless remote controller is misplaced or its batteries are exhausted. • Push the TEMPORARY button once (less than 3 seconds) to start the air conditioner. •... -
Page 28: How The Air Conditioner Works
Owner’s Manual High-Wall Type SMMS High-Wall Type How the Air Conditioner Works • Heating operation NOTE In the operation suppression zone, where capacity is kept to the minimum, overheating is This manual describes wireless remote control prevented by lowering the temperature setting by specific operations. -
Page 29: Maintenance
Owner’s Manual High-Wall Type SMMS High-Wall Type Maintenance WARNING Before cleaning the air conditioner, turn off the circuit breaker or main power switch. Cleaning of indoor unit and remote controller CAUTION • Use a dry cloth to wipe the indoor unit and remote controller. •... - Page 30 Owner’s Manual High-Wall Type SMMS High-Wall Type Cleaning the air filter Insert the upper portion of air filter confirming to fit its right and left edges on Clean the air filters every 2 weeks. the indoor unit until it is firmly set. If the air filters are covered with dust, the performance of the air conditioner will deteriorate.
- Page 31 Owner’s Manual High-Wall Type SMMS High-Wall Type Cleaning the air intake grille Wipe out water from the air intake grille and dry it. Remove the air intake grille. Fit the left and right arms of the air intake grille to the shafts on the two sides of the air Hold the two sides of the air intake grille and open upwards.
-
Page 32: Troubles And Causes
Owner’s Manual High-Wall Type SMMS High-Wall Type Troubles and Causes For contents of the outdoor unit, combinations or other details, refer to the owner’s manual supplied with the outdoor unit. CAUTION If any of the following conditions occur, stop the air conditioner immediately, set to off the main power switch and contact the dealer: •... - Page 33 Owner’s Manual High-Wall Type SMMS High-Wall Type ▼ These are not failures. The back of indoor unit is dewed. • Dewdrops on the back of the indoor unit are automatically collected and drained out. Indoor unit or outdoor unit makes a strange noise. •...
-
Page 34: Specifications
Owner’s Manual High-Wall Type SMMS High-Wall Type Specifications Sound power level (dBA) Sound pressure level (dBA) Sound pressure level (dBA) Model Weight (kg) Main unit Model Weight (kg) Main unit Model Weight (kg) Main unit Cooling Heating Cooling Cooling Heating Heating MMK-AP0054MHP-E MMK-AP0074MH-E... - Page 35 Owner’s Manual High-Wall Type SMMS High-Wall Type Declaration of Conformity Manufacturer: Toshiba Carrier (Thailand) Co., Ltd. 144/9 Moo5, Bangkadi Industrial Park, Tivanon Road, Tambol Bangkadi, Amphur Muang, Pathumthani 12000 Thailand Authorized Nick Ball Representative / Toshiba EMEA Engineering Director TCF holder: Toshiba Carrier UK Ltd.
- Page 36 Information according to EMC Directive 2004/108/EC (Name of the manufacturer) TOSHIBA CARRIER (THAILAND) CO., LTD. 144/9 Moo 5, Bangkadi Industrial Park, Tivanon Road, 144/9 Moo 5, Bangkadi Industrial Park, Tivanon Road, (Address, city, country) Tambol Bangkadi, Amphur Muang, Pathumthani 12000, Thailand...
