CHAPTER 1
INTRODUCTION
Chapter 1
INTRODUCTION

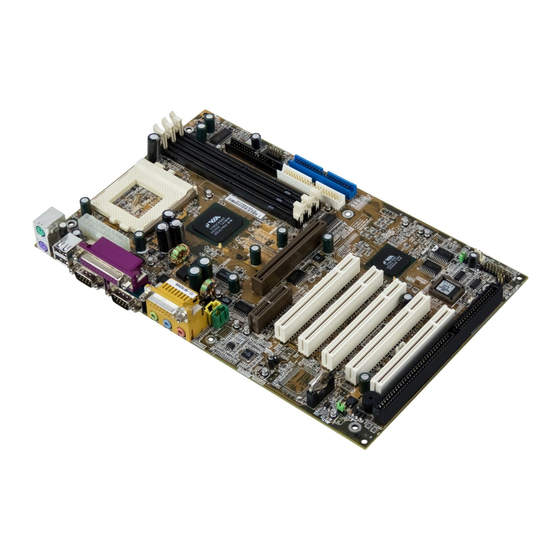

The 694 Master (MS-6309 ver 3.0) ATX mainboard is a high-performance
®
computer mainboard based on VIA
VT82C694X chipset. The 694 Master
®
TM
(MS-6309 ver 3.0) is designed for the Intel
Celeron
or Coppermine (FC-
PGA) processor for inexpensive business/personal desktop markets.
The Apollo Pro133A (VT82C694X) is a Socket-370 system logic north bridge
with the addition of 133 MHz capability for both the CPU and SDRAM
interfaces. Apollo Pro133A may be used to implement both desktop and
notebook personal computer systems from 66MHz to 133MHz based on
Socket-370. The primary features of the Apollo Pro133A-North Bridge are:
Slot-1 or Socket-370 CPU (Front Side Bus) Interface (66 / 100 / 133MHz),
DRAM Memory Interface (66 / 100 / 133MHz), AGP Bus Interface (66MHz),
PCI Bus Interface (33MHz), Mobile Power Management.
The VT82C686B PSIPC (PCI Super-I/O Integrated Peripheral Controller) is a
high integration, high performance, power-efficient, and high compatibility
device that supports Intel and non-Intel based processor to PCI bus bridge
functionality to make a complete Microsoft PC99-compliant PCI/ISA system.
1-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-6309 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MSI MS-6309

  • Page 1 CHAPTER 1 INTRODUCTION Chapter 1 INTRODUCTION The 694 Master (MS-6309 ver 3.0) ATX mainboard is a high-performance ® computer mainboard based on VIA VT82C694X chipset. The 694 Master ® (MS-6309 ver 3.0) is designed for the Intel Celeron or Coppermine (FC- PGA) processor for inexpensive business/personal desktop markets.
  • Page 2: Mainboard Features

    CHAPTER 1 INTRODUCTION Mainboard Features l Socket 370 for Intel ® Celeron / Coppermine processor. l Supports 233MHz, 266MHz, 300MHz, 333MHz, 350MHz, 400MHz, 450MHz, 500MHZ, 533MHz to 1GHz. Chipset l VIA ® 694X chipset (510 BGA) - AGP 4x and PCI plus Advanced ECC Memory Controller - Support PC100/133 SDRAM, VCM technology l VIA ®...
  • Page 3 CHAPTER 1 INTRODUCTION On-Board IDE l An IDE controller on the VIA ® VT82C686B Chipset provides IDE HDD/ CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes. l Can connect up to four IDE devices. On-Board Peripherals l On-Board Peripherals include: - 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
  • Page 4: Mainboard Layout

    PCI SLOT 1 VT1611A PCI SLOT 2 J601 VT82C686B PCI SLOT 3 JBAT1 PCI SLOT 4 JFSH1 PCI SLOT 5 BATT BIOS SYSFAN PCI SLOT 6 JGS1 JMDM1 JGL1 JRMS1 CNR1 JFP1 JSPK1 JWOL1 694 Master (MS-6309 ver 3.0) Mainboard...
  • Page 5: Hardware Installation

    CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST HARD HARD ARE INST ARE INST ARE INSTALLA ARE INST ALLA ALLA ALLA ALLATION TION TION TION TION Chapter 2 HARDWARE INSTALLATION Central Processing Unit: CPU ®...
  • Page 6 CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST HARD HARD ARE INST ARE INST ARE INSTALLA ARE INST ALLA ALLA ALLA ALLATION TION TION TION TION • CPU Core Speed Derivation Procedure...
  • Page 7 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION • Fan Power Connectors: CPUFAN & SYSFAN SENSOR +12V CPUFAN...
  • Page 8 CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST HARD HARD ARE INST ARE INST ARE INSTALLA ARE INST ALLA ALLA ALLA ALLATION TION TION TION TION Clear CMOS Jumper: JBA Clear CMOS Jumper: JBA Clear CMOS Jumper: JBA Clear CMOS Jumper: JBA...
  • Page 9: Memory Installation

    CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION Memory Installation Memory Installation Memory Installation Memory Installation Memory Installation...
  • Page 10 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION • • • • • Memory Installation Procedures Single Sided DIMM Double Sided DIMM DRAM...
  • Page 11 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION • • • • • Memory Population Rules SDRAM Memory Addressing Single Double...
  • Page 12: Case Connector: Jfp1

    CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION Case Connector: JFP1 Reset Switch Power...
  • Page 13 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION Power Switch Reset Switch Power LED Speaker HDD LED...
  • Page 14: Floppy Disk Connector: Fdd

    CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION Floppy Disk Connector: FDD...
  • Page 15: Hard Disk Connectors: Ide1 & Ide2

    CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST HARD HARD ARE INST ARE INST ARE INSTALLA ARE INST ALLA ALLA ALLA ALLATION TION TION TION TION Hard Disk Connectors: IDE1 & IDE2...
  • Page 16: Power Supply

    CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST HARD HARD ARE INST ARE INST ARE INSTALLA ARE INST ALLA ALLA ALLA ALLATION TION TION TION TION Power Supply Power Supply Power Supply Power Supply Power Supply...
  • Page 17 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION • • • • • Remote Power On/Off Switch: JRMS1...
  • Page 18: Irda Infrared Module Connector: J4

    CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST HARD HARD ARE INST ARE INST ARE INSTALLA ARE INST ALLA ALLA ALLA ALLATION TION TION TION TION IrDA Infrared Module Connector: J4 IRTX IRRX...
  • Page 19 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION Serial Port Connectors: COM A and COM B Serial Port Connectors: COM A and COM B Serial Port Connectors: COM A and COM B Serial Port Connectors: COM A and COM B...
  • Page 20: Parallel Port Connector: Lpt1

    CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION Parallel Port Connector: LPT1 Parallel Port Connector: LPT1 Parallel Port Connector: LPT1 Parallel Port Connector: LPT1...
  • Page 21: Mouse Connector: Jkbms1

    CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION Mouse Connector: JKBMS1 Mouse Connector: JKBMS1 Mouse Connector: JKBMS1 Mouse Connector: JKBMS1...
  • Page 22: Joystick/Midi Connectors

    CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION Joystick/Midi Connectors Joystick/MIDI Audio Port Connectors Line Out Line In Mic 1/8”...
  • Page 23: Usb Connectors

    CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION USB Connectors  !" SIGNAL -Data +Data...
  • Page 24 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION W W W W W ak ake e e e e -Up on LAN Connector: JWOL1 -Up on LAN Connector: JWOL1 -Up on LAN Connector: JWOL1...
  • Page 25 CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST HARD HARD ARE INST ARE INST ARE INSTALLA ARE INST ALLA ALLA ALLA ALLATION TION TION TION TION Modem W Modem W e Up Connector: JMDM1 e Up Connector: JMDM1 Modem W...
  • Page 26: Power Saving Switch Connector: Jgs1

    CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST HARD HARD ARE INST ARE INST ARE INSTALLA ARE INST ALLA ALLA ALLA ALLATION TION TION TION TION Power Saving Switch Connector: JGS1 Power Saving Switch Connector: JGS1 Power Saving Switch Connector: JGS1 Power Saving Switch Connector: JGS1...
  • Page 27: Power Saving Led Connector: Jgl1

    CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION Power Saving LED Connector: JGL1 Power Saving LED Connector: JGL1 Power Saving LED Connector: JGL1 Power Saving LED Connector: JGL1...
  • Page 28 CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST HARD HARD ARE INST ARE INST ARE INSTALLA ARE INST ALLA ALLA ALLA ALLATION TION TION TION TION CPU T CPU T ermination V ermination V oltage Jumper:...
  • Page 29 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION CNR1 (Communication Network Riser) CNR1 (Communication Network Riser) CNR1 (Communication Network Riser) CNR1 (Communication Network Riser)
  • Page 30: Diagnostic Led

    CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION Diagnostic LED Diagnostic LED Diagnostic LED Diagnostic LED Diagnostic LED...
  • Page 31 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION Smart D-LED Voice Speaker Select Output Jumper: JSPK Enable Enable Buzzer...
  • Page 32 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION Smart D-LED Voice Mode Tool: J601...
  • Page 33 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION D-LED 1 2 3 4 DESCRIPTION POSSIBLE PROBLEM/VOICE CONTEXT 0 0 0 0...
  • Page 34 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION CD-In Connector: JCD -In Connector: JCD -In Connector: JCD -In Connector: JCD...
  • Page 35 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION AUX Line In Connector: JAUX AUX Line In Connector: JAUX AUX Line In Connector: JAUX AUX Line In Connector: JAUX...
  • Page 36 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION Modem-In: JPH Mono_Out GND Phone_In...
  • Page 37 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION IEEE 1394 Connector (optional) IEEE 1394 Connector (optional) IEEE 1394 Connector (optional) IEEE 1394 Connector (optional)
  • Page 38 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION BIOS Flash Jumper: JFSH1 BIOS Flash Jumper: JFSH1 BIOS Flash Jumper: JFSH1 BIOS Flash Jumper: JFSH1...
  • Page 39 CHAPTER 2 CHAPTER 2 HARD HARD HARDW W W W W ARE INST ARE INST ARE INST ALLA ALLA TION TION CHAPTER 2 CHAPTER 2 CHAPTER 2 HARD HARD ARE INST ARE INSTALLA ALLA ALLATION TION TION USB Front Connector: USB2 USB Front Connector: USB2 USB Front Connector: USB2 USB Front Connector: USB2...
  • Page 40 ® Chapter 3 ® BIOS USER’S GUIDE The system configuration information and chipset register information is stored in the CMOS RAM. This information is retained by a battery when the power is off. Enter the BIOS setup (if needed) to modify this information. The following pages will describe how to enter BIOS setup, and all about options.
  • Page 41: Enter Bios Setup

    ® Enter BIOS Setup ® Enter the AMI setup Program’s Main Menu as follows: 1. Turn on or reboot the system. The following screen appears with a series of diagnostic check. AMIBIOS (C) 1999 American Megatrends Inc. A6309 VXXX XXXXXX Hit <DEL>...
  • Page 42 ® AMIBIOS SIMPLE SETUP UTILITIES - VERSION 1.21f (C) 1998 American Megatrends, Inc. All Rights Reserved Integrated Peripherals Standard CMOS Setup Hardware Monitor Setup BIOS Features Setup Supervisor Password Chipset Features Setup User Password Power Management Setup IDE HDD Auto Detection PNP/PCI Configuration Save and Exit Setup Load BIOS Defaults...
  • Page 43: Standard Cmos Setup

    ® Standard CMOS Setup 1. Press <ENTER> on “Standard CMOS Setup” of the main menu screen . AMIBIOS SETUP - STANDARD CMOS SETUP (C)1999 American Megatrends,Inc.All Rights Reserved Date (mm/dd/yyyy): Fri Oct 29, 1999 Time (hh/mm/ss): 17:09:25 Type Size CYLS HEAD PRECOMP LANDZ...
  • Page 44: Bios Features Setup

    ® BIOS Features Setup 1. Press <ENTER> on “BIOS Features Setup” of the main menu screen. AMIBIOS SETUP - BIOS FEATURES SETUP (C) 1999 American Megatrends, Inc. All Rights Reserved D800, 16K Shadow :Disabled Quick Boot :Enabled DC00, 16K Shadow :Disabled 1st Boot Device :Floppy...
  • Page 45: Quick Boot

    The system will boot from the SCSI. Network The system will boot from the Network drive. Initial Display Mode Set this option to BIOS mode for normal boot-up. Silent mode to show the MSI logo during system boot-up. The settings are BIOS or Silent.
  • Page 46 ® S.M.A.R.T. for Hard Disks This option sets the SMART Function for the hard disk. The hard disk need to have SMART function for this feature to work. Boot up Num Lock ® When this option is set to Off, AMI BIOS turns off the Num Lock key when the system is powered on.
  • Page 47 ® ® Boot To OS/2 > 64MB Set this option to Enabled to permit the BIOS to run properly, if ® OS/2 is to be used with > 64MB of DRAM. The settings are Enabled or Disabled. The Setup and BIOS default settings are Disabled. L2 Cache This option enables the Level 2 Cache memory.
  • Page 48: Chipset Features Setup

    ® Chipset Features Setup 1. Press <ENTER> on “Chipset Features Setup” of the main menu screen. AMIBIOS SETUP - CHIPSET FEATURES SETUP (C) 1999 American Megatrends, Inc. All Rights Reserved Set SDRAM Timing by SPD :Disabled DRAM Frequency :HCLK SDRAM CAS# Latency DRAM Integrity Mode :Disabled CPU In Order Queue...
  • Page 49 ® Description of the item on screen follows: Set SDRAM Timing By SPD Choose Enabled, will automatically configure the DRAM Timing depending on the “DRAM Speed” selection. Choose Disabled, to customize the setup. DRAM Frequency This item specify the DRAM frequency of the system. The settings are HCLK-33 (FSB-33), HCLK (FSB) and HCLK+33 (FSB+33).
  • Page 50: Agp Aperture Size

    ® AGP Aperture Size This option determines the effective size of the graphics aperture used in the particular MCM configuration. The AGP aperture is memory - mapped, while graphics data structure can reside in a graphics aperture. The aperture range should be programmed as not cacheable in the processor cache,accesses with the aperture range are forwarded to the main memory, then MCM will translate the original issued address via a translation table that is maintained on the main memory.
  • Page 51: Power Management Setup

    ® Power Management Setup 1. Press <ENTER> on “Power Management Setup” of the main menu screen. AMIBIOS SETUP - POWER MANAGEMENT SETUP (C) 1999 American Megatrends, Inc. All Rights Reserved Restore on AC/Power Loss :Last State IPCA Function :Yes Resume On Ring/LAN :Enabled Green PC LED Status :Dual Color...
  • Page 52 ® Description of the item on screen follows: IPCA Function This item allows you to Enabled/Disabled the Advanced Configura- tion and Power Management (ACPI). The settings are Yes and No. Green PC LED Status This item determines which state the Power LED will use. The settings are Blinking, Dual, and Single.
  • Page 53: Throttle Slow Clock Ratio

    ® Throttle Slow Clock Ratio This option specifies the speed at which the system clock runs in power saving states. The settings are expressed as ratio between the normal CPU clock speed and the CPU clock speed when the computer is in the power-conserving state.
  • Page 54: Restore On Ac Power Loss

    ® Restore on AC/Power Loss The settings are power on, power off or last state. During power on, after every AC power loss, the system will be turned on. During last status, after every AC power off, whatever the system status, it will be the same when the AC power returns.
  • Page 55: Pnp/Pci Configuration

    ® PNP/PCI Configuration 1. Press <ENTER> on “PNP/PCI Configuration” of the main menu screen. AMIBIOS SETUP - PNP/PCI CONFIGURATION (C) 1999 American Megatrends, Inc. All Rights Reserved PnP Aware O/S Clear NVRAM PCI Latency Timer Primary Graphics Adapter :PCI PCI VGA Palette Snoop :Disabled DMA Channel 0 :PnP...
  • Page 56: Pci Latency Timer

    ® Description of the item on screen follows: Plug and Play Aware O/S Set this option to Yes if the operating system in this computer is aware of and follows the Plug and Play specification. The settings are Yes or No.
  • Page 57: Dma Channel

    ® DMA Channel 0/1/3/5/6/7 These options specify the bus that the specified DMA channel is used. These options allow you to reserve DMAs for legacy ISA adapter cards. ® These options determine if AMI BIOS should remove a DMA from the available DMAs passed to devices that are configurable by the system BIOS.
  • Page 58: Integrated Peripherals

    ® Integrated Peripherals 1. Press <ENTER> on “Integrated Peripherals” of the main menu screen. AMIBIOS SETUP - INTEGRATED PERIPHERALS (C) 1999 American Megatrends, Inc. All Rights Reserved Onchip IDE :Both Floppy Controller :Auto Serial Port A :Auto Serial Port B :Auto Serial Port B Mode :Normal...
  • Page 59 ® Description of the item on screen follows: Onchip IDE This item allows you to set the Onchip IDE controller. Floppy Controller This item allows you to Enabled or Disabled the onboard FDC. Choose Auto to allow the BIOS to automatically detect the device. The default setting is Auto.
  • Page 60: Parallel Port Irq

    ® Parallel Port IRQ If the onboard parallel mode is not on auto mode, the user can select the interrupt line for onboard parallel port. We suggest that the user select the interrupt for the onboard parallel port as shown below: Parallel Port IRQ Onboard parallel port set at LPT1(378H)
  • Page 61: Hardware Monitor Setup

    ® Hardware Monitor Setup 1. Press <ENTER> on “Hardware Monitor Setup” of the main menu screen. AMIBIOS SETUP - Hardware Monitor Setup (C) 1999 American Megatrends, Inc. All Rights Reserved Spread Spectrum :Enabled CPU FSB Clock (MHz) :Auto CPU Ratio Selection :3.0X CPU Vcore Selection (V) :Auto...
  • Page 62: Spread Spectrum

    ® Description of the item on screen follows: Spread Spectrum This item allows you to select the clock generator Spread Spectrum function. When overclocking the processor, always set this item to Disa- bled. The default setting is Enabled. CPU FSB Clock (Mhz) Check your processor and set this function accordingly.
  • Page 63: Ide Hdd Auto Detection

    ® IDE HDD Auto Detection You can use this utility to automatically detect the characteristics of most hard drives. AMIBIOS SETUP - STANDARD CMOS SETUP (C)1999 American Megatrends,Inc.All Rights Reserved Date (mm/dd/yyyy): Fri Oct 29, 1999 Time (hh/mm/ss): 17:09:25 Type Size CYLS HEAD...
  • Page 64: Supervisor/User Password

    ® Supervisor/User Password This Main Menu item lets you configure the system so that a password is required each time the system boots or an attempt is made to enter the Setup program. Supervisor Password allows you to change all CMOS settings but the User Password setting doesn’t have this function.
  • Page 65: Audio Features

    Chapter 4 VIA CHIPSET DRIVER Overview The 694 Master (MS-6309 ver 3.0) is paired with the VIA VT82C686B south bridge. Highly advanced, the south bridge combines an integrated 2D/3D engine with DVD hardware acceleration, AC-97 audio support for SoundBlaster Pro and FM synthesis legacy audio.
  • Page 66 CHAPTER 4 VIA CHIPSET DRIVER Driver Setup & Usage Procedures for Windows ® Insert the CD-title into your CD-ROM drive. The CD will auto-run and will display the four icons in the monitor “VIA Chipset Drivers”, “VIA AC97 PCI Sound Drivers” and “Download VIA Drivers”. In order to install the drivers correctly, you must install the “Via Chipset Drivers”...
  • Page 67 CHAPTER 4 VIA CHIPSET DRIVER Step 8: The setup program will let you choose between “Install VIA Chipset Functions Registry” or “Uninstall VIA Chipset Functions Registry”. Please select “Install VIA Chipset Functions Registry” and then click “Next”. Step 9: The setup program will let you choose between “Install VIA IRQ Routing Miniport Driver”...
  • Page 68 CHAPTER 4 VIA CHIPSET DRIVER VIA AC97 PCI Sound Drivers installation procedure: Step 1: Insert the provided CD_ROM disk into the CD-ROM drive. Step 2: Look for the CD_ROM drive, double click on the CD_ROM icon. This will show the setup screen. Step 3: Click on “VIA AC97 PCI Sound Drivers”...
  • Page 69: Windows Nt

    CHAPTER 4 VIA CHIPSET DRIVER Windows NT 4.0 ® ® Install Windows NT 4.0 Service Pack 6 or the latest version before installing the VIA drivers. Insert the CD-title in the CD-ROM drive. The CD will auto-run and will display four icons on the screen “VIA Chipset Drivers”, “VIA AC97 PCI Sound Drivers”and “Download VIA Drivers”.
  • Page 70 CHAPTER 4 VIA CHIPSET DRIVER VIA AC97 PCI Sound Drivers Installation Procedure: Step 1: Insert the provided CD_ROM disk into the CD-ROM drive. Step 2: Look for the CD_ROM drive, double click on the CD_ROM icon. This will show the setup screen. Step 3: Click on “VIA AC97 PCI Sound Drivers”...
