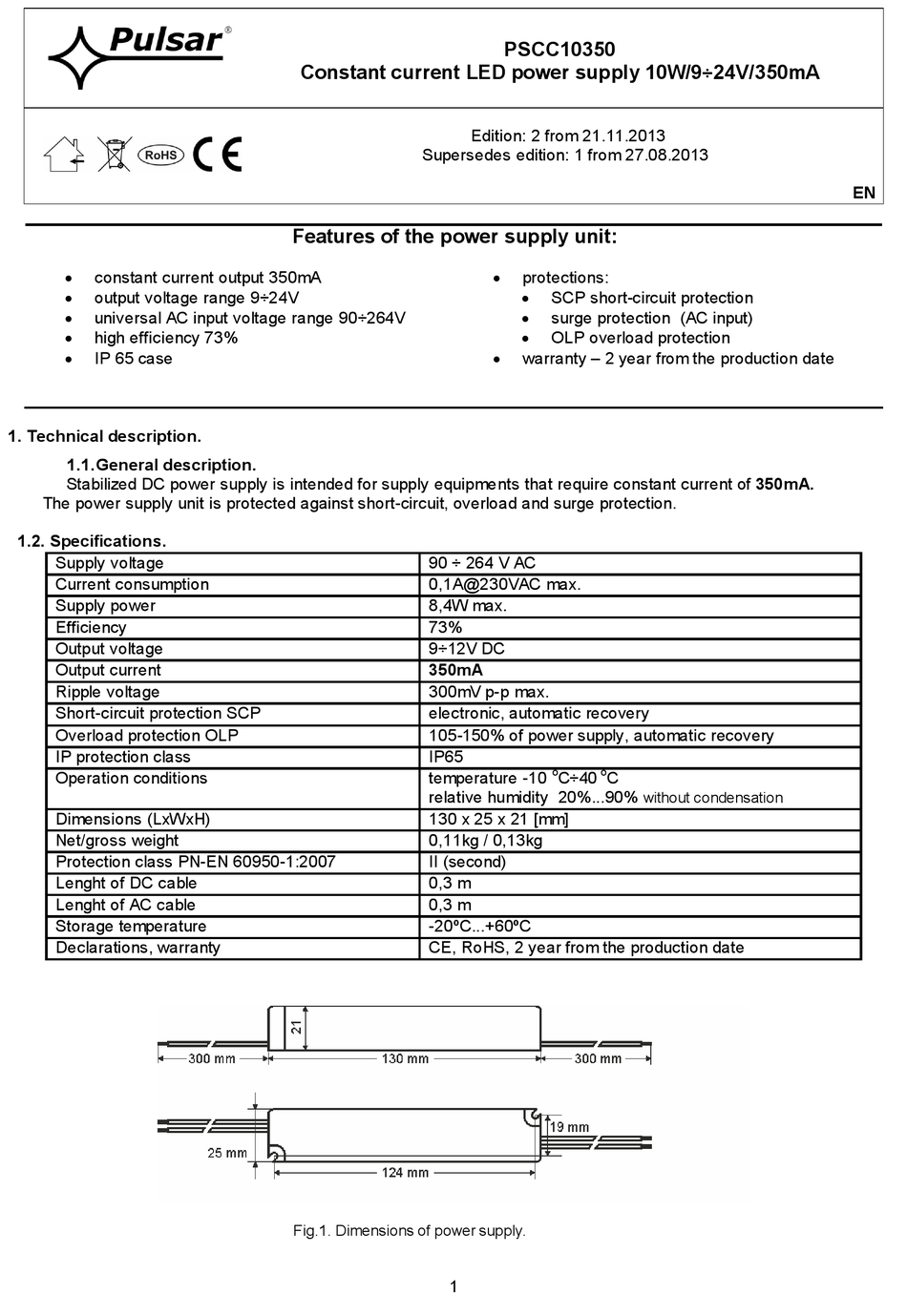

Pulsar PSCC10350 Quick Start Manual

constant current output 350mA

output voltage range 9÷24V

 universal AC input voltage range 90÷264V
 high efficiency 73%
IP 65 case


1. Technical description.

1.1. General description.

Stabilized DC power supply is intended for supply equipments that require constant current of 350mA.
The power supply unit is protected against short-circuit, overload and surge protection.

1.2. Specifications.

Supply voltage
Current consumption
Supply power
Efficiency
Output voltage
Output current
Ripple voltage
Short-circuit protection SCP
Overload protection OLP
IP protection class
Operation conditions
Dimensions (LxWxH)
Net/gross weight
Protection class PN-EN 60950-1:2007
Lenght of DC cable
Lenght of AC cable
Storage temperature
Declarations, warranty
Constant current LED power supply 10W/9÷24V/350mA
Supersedes edition: 1 from 27.08.2013
Features of the power supply unit:
90 ÷ 264 V AC
0,1A@230VAC max.
8,4W max.
73%
9÷12V DC
350mA
300mV p-p max.
electronic, automatic recovery
105-150% of power supply, automatic recovery
IP65
temperature -10
relative humidity 20%...90%
130 x 25 x 21 [mm]
0,11kg / 0,13kg
II (second)
0,3 m
0,3 m
-20ºC...+60ºC
CE, RoHS, 2 year from the production date
Fig.1. Dimensions of power supply.
1
PSCC10350
Edition: 2 from 21.11.2013
protections:

SCP short-circuit protection

 surge protection (AC input)
 OLP overload protection
warranty – 2 year from the production date

o o
C÷40 C
without condensation
EN
