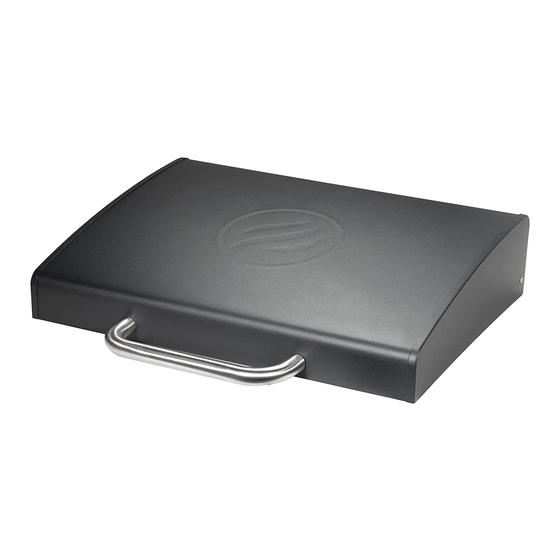

22" GRIDDLE HOOD
1. Handle (1 pc)
Encargarse de
Se charger de
3. M5 Screw (4 pcs)
Tornillo M5
Vis M5
North Atlantic Imports LLC | 513 West 2500 North, North Logan UT 84341 | www.blackstoneproducts.com
ILLUSTRATED PARTS LIST
2. Griddle Hood (1 pc)
Capucha de plancha
Couverture de fer otte
4. Nut (4 pcs)
Nuez
Écrou
MODEL 5011
5. M6x12MM Screw (2 pcs)
Tornillo M6x12MM
Vis M6x12MM
Advertisement
Table of Contents
Related Manuals for Black Stone 5011
Summary of Contents for Black Stone 5011
- Page 1 22” GRIDDLE HOOD ASSEMBLY INSTRUCTIONS MODEL 5011 ILLUSTRATED PARTS LIST 1. Handle (1 pc) 2. Griddle Hood (1 pc) Encargarse de Capucha de plancha Se charger de Couverture de fer otte 3. M5 Screw (4 pcs) 4. Nut (4 pcs) 5.
- Page 2 ASSEMBLY INSTRUCTIONS Two(2)M6X12MM Screws Dos (2) tornillos M6X12MM Deux (2) vis M6X12MM STEP 1. Use two M6x12mm screws to attach the handle to the griddle hood as illustrated. Use dos tornillos M6x12mm para unir el mango a la cubierta de la campana como se ilustra. Utilisez deux vis M6x12mm pour fixer la poignée sur le couvercle du capot comme illustré.
