8 Handlebar Controls Guide

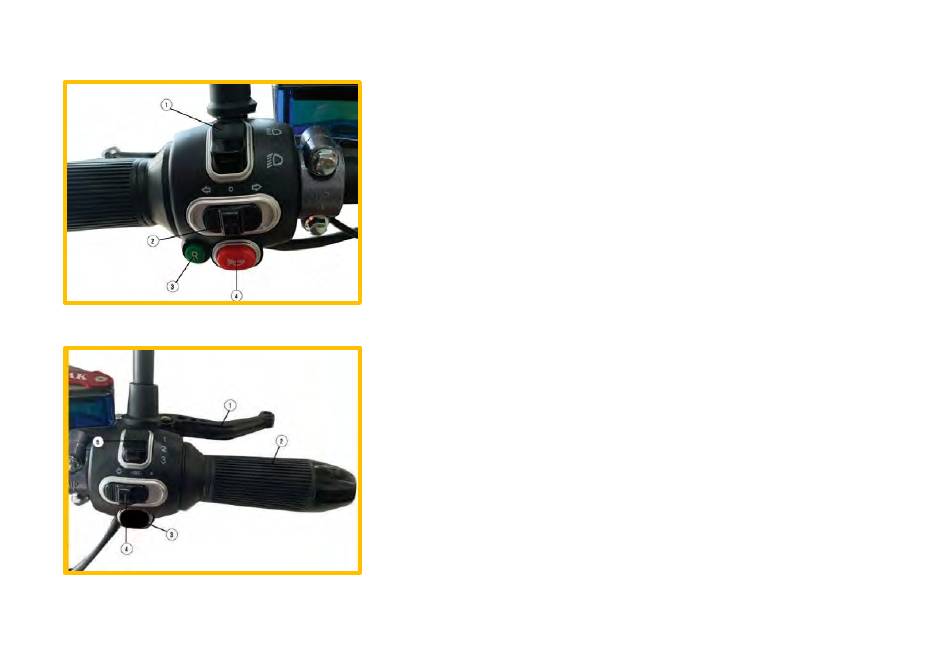

Figure 5 – Left Handlebar
Figure 6 – Right Handlebar
Scooterpac Invader | User Manual
Left Handlebar
1. High Beam / Low Beam - Toggle this switch to choose between a
low or high angle of the headlights. (The headlight must be on for this
to have an effect)
Turn Signals - Push this to the left to indicate turning to the left and
2.
back into the middle once your done. Push this to the right if you are
turning to the right.
Reverse Switch - Press and hold this while engaging the throttle to
3.
go in reverse.
*PLEASE NOTE* Always be aware of your surroundings when
operating this in reverse and use it at your own discretion.
Horn - Push this to operate the horn.
4.
Right Handlebar
1. Front Brake - Pull this lever to engage the front brake. (Use the rear
brake first located on the left handlebar.)
2. Throttle - Slowly rotate this towards you to engage the motor.
*PLEASE NOTE* Always be sitting on the unit before turning the
throttle.
3. All Wheel Drive Selection Switch – In the right position this switch
will enable AWD mode (both front and rear motors). In the left
position this switch will enable RWD mode (rear motor driving).
Lights - Push this to the left most position to turn on dipped beam.
4.
Push this to the middle position to have the side lights on. Push the
switch all the way to the right to turn off all lights.
3 Speed Switch – Use this switch to choose between 4mph
5.
(Pavement) and 8mph (Road). Position 1 equals 4mph and position 3
equals is 8mph. Please note – position 2 is not in use.
If switched to this position, power to the motor will be disabled.
Please see Section 2 'Essential Information' for off-road settings.
