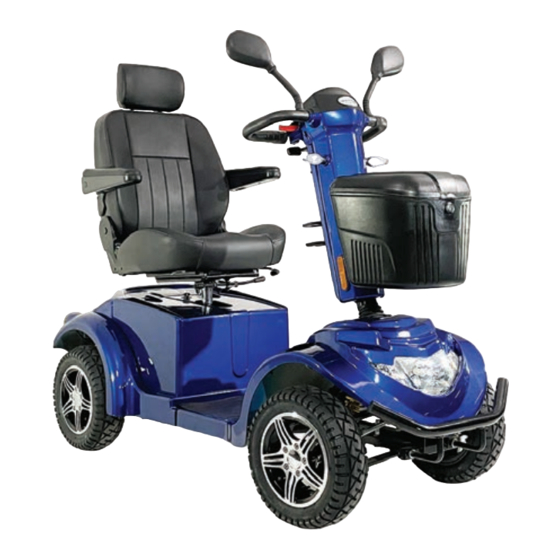

Summary of Contents for Scooterpac Ignite
- Page 1 User Manual...
- Page 2 The mobility scooter that keeps on giving. . .
- Page 3 Heated Seat comes as standard Brighten your day Learn more about your Ignite today...
-
Page 4: Table Of Contents
Contents ......................4 7.6.2 Freewheel Function ........... 20 Welcome ....................6 7.6.3 Reversing ................21 Legal ......................7 Starting the Ignite ............. 22 Safety ....................... 8 Digital LCD Display............23 Anti-Tip Wheels ..............8 7.8.1 Odometer ................ 24 Safe Inclines ................9 7.8.2... - Page 5 11.2 Sizes & Weights ..............37 Cleaning & Maintenance ..........34 12 Servicing ..................... 38 13 Notes..................... 42 9.5.1 Rubber Mats ..............34 9.5.2 Paintwork ................. 34 10 Warranty ..................... 35 11 Specifications .................. 36 Scooterpac Ignite | User Manual...
-
Page 6: Welcome
Town/City ________________________ If you have any questions, please contact the Scooterpac Postcode ________________________ dealer that supplied your Ignite and they will be happy to help you. Phone Number ________________________ This Ignite was originally supplied by: E-mail Address ________________________... -
Page 7: Legal
2 Legal The Scooterpac Ignite is designed to be operated by a single person, in accordance with the legal requirements for operating a Class 3 invalid carriage in the jurisdiction in which it was sold. Operating the vehicle outside of these limitations may invalidate your warranty. -
Page 8: Safety
3.1 Anti-Tip Wheels The Ignite is fitted with rear anti-tip wheels. These are an emergency failsafe that should never be relied upon in normal operation. These are designed to stop the Ignite tipping backwards on a steep incline. Should you see any damage to the wheels, you should cease using the car and take it to a certified mechanic who can ensure that the chassis has not been damaged. -
Page 9: Safe Inclines
3.2 Safe Inclines The Ignite can climb inclines of up to 12˚ without danger. On this 12˚ incline, the Ignite can stop, brake and turn. It is possible to attempt steeper inclines, but we strongly suggest that you do not. To reduce the possibility of tipping backwards on inclines, lessen the load on the back of the scooter by sliding the seat forward as much as possible and leaning forward. -
Page 10: Introduction
Your Ignite is a high-tech piece of mobility equipment that will give you years of faithful service and enjoyment. This manual introduces you to the operation, maintenance and care of your Ignite. If you have any questions, or are unsure of anything, please contact the dealer your originally purchased the Ignite from. -
Page 11: Your Ignite
5.1 Intended Use The Ignite is designed for use on smooth pavement or roadway, in accordance with local laws. The Ignite can be used in wet and windy weather, but discretion should be used when planning a journey in adverse weather conditions. If there is more than 1cm of water standing on the pavement, extra care should be taken as the car may have reduced ability to grip and steer. -
Page 12: Unintentional Movement
5.2 Unintentional Movement The Ignite should be stationary before entering or existing. When the Ignite is switched on, it will remain stationary until one of the following: 1. The forward or reverse lever is pulled. 2. The freewheel function is engaged. -
Page 13: Digital Tiller Guide
6 Digital Tiller Guide Figure 2 – Digital Tiller guide Scooterpac Ignite | User Manual... -
Page 14: Operating Your Ignite
7 Operating Your Ignite 7.1 Entering the Vehicle The vehicle can be entered from either side. Please ensure that the Ignite is stationary on smooth, level ground. 7.2 Keys & Fobs The Ignite is delivered with several keys which operate various functions:... -
Page 15: Seat Adjustments
TOP TIP – Do not use the control tiller to push or pull yourself. Backrest Adjustment The pitch of the seat can be changed by the lifting lever located on the right-hand side of the seat when seated. Figure 4 – Pull black handle to adjust the backrest Scooterpac Ignite | User Manual... - Page 16 To change the angle of the seat, sit on the seat, pull the swivel handle towards the front of the scooter and turn the seat anti-clockwise. Figure 6 – Pull black handle to adjust the backrest Scooterpac Ignite | User Manual...
-
Page 17: Tiller Adjustments
Try to find a position that allows a good view of the digital control panel and allows full left and right movement of the steering. Figure 7 – Press the black handle down to adjust tiller pitch Scooterpac Ignite | User Manual... -
Page 18: Steering
For the most accurate steering the Ignite should be moving forwards or backwards at a controllable speed. Gently push one side of the tiller away from you, allowing the Ignite to begin turning. Make sure that you are continually observing your surroundings during any manoeuvre. -
Page 19: Acceleration & Braking
7.6 Acceleration & Braking 7.6.1 Speed Controls The Ignite has several methods for controlling speed; the High and Low Speed Modes, the Max Speed Limiter and the Throttle Levers. 7.6.1.1 High and Low Speed Modes The high (“H”) and low (“L”) speed modes are controlled by the right-hand dial on the tiller. -
Page 20: Freewheel Function
Acceleration and deceleration are controlled by the red and green levers on the tiller. They are designed to prevent both the forward and reverse functions from being activated at the same time. To move forward, gently squeeze the green lever. The Ignite will accelerate up to the maximum allowable speed set by the speed controls. -
Page 21: Reversing
7.6.3 Reversing To engage reverse mode, ensure that the Ignite is stationary on even ground. Before moving, check that the area is clear of obstructions and your planned path is of adequate size. Gently squeeze the red lever, and the Ignite will begin to slowly move backwards. -
Page 22: Starting The Ignite
7.7 Starting the Ignite The Ignite will start once the Ignition Key is inserted into the housing on the tiller and turned clockwise (figure 11). The Ignite is powered on and ready to be used when the digital dashboard displays visual data (figure 12). -
Page 23: Digital Lcd Display
7.8 Digital LCD Display Figure 12 - Digital LCD Display Scooterpac Ignite | User Manual... -
Page 24: Odometer
7.8.1 Odometer The displayed miles/kilometres on the Digital LCD Display are cumulative and represent the total distance the Ignite has travelled. 7.8.2 Setting the Clock To set of the clock follow the below instructions: 1. Press and hold the headlight button and then the freewheel button together. -
Page 25: Indicators
The indicators are bright LEDs used for easy visibility, in an orange colour. To switch them on press the button once before initiating a manoeuvre. Once the turn is complete and it is safe to do so, press the again to turn off the indicator. Scooterpac Ignite | User Manual... -
Page 26: Hazard Lights
The electric horn is activated by pressing the button on the tiller top. The horn should only be used in compliance with the Highway Code. The horn will only sound if the ignition is switched on. Scooterpac Ignite | User Manual... -
Page 27: Usb Charging Ports
7.12 USB Charging Ports The Ignite is equipped with USB Charging Ports on the right-hand side of the tiller column. The two USB ports provide different power outputs. USB Port 1 is located next to the LED light and USB Port 2 can be found on right hand side. -
Page 28: Cup Holder
7.13 Cup Holder For your convenience, the Ignite is fitted with a bottle/cup holder. It can be opened by pulling down on the upper ring. The lower ring will follow. TOP TIP – The cup holder should not be used to store alcoholic beverages. -
Page 29: Charge Port
7.14 Charge Port Charging the Ignite can be completed by using the charge port on the tiller. The port is located on the tiller column on the right-hand side. To charge the vehicle, simply connect the supplied charge cable to the port. -
Page 30: Heated Seat
LED is not position will illuminate the orange illuminated this indicates that the LED. This indicates the heated seat Figure 16 – Heated seat heated seat function is off. function as been switched on. button Scooterpac Ignite | User Manual... -
Page 31: Maintenance
9.2 Battery Care The battery assembly in your Ignite should not require any maintenance on a day to day basis, however access may be required. The batteries are located under the seat, protected by a black plastic shroud. -
Page 32: Fuses
9.3 Fuses The fuses used on the Ignite are accessible through a covered hatch on the front of the tiller. To access the fuse board, simply pull down on the retaining clip and slide the cover out of place. Fuses should only be changed by professionals, as improper work may damage the Ignite electrical system. -
Page 33: Tyre Pressures
The tyres should always have at least 3mm of tread to provide adequate grip on the road surface. If the tyres become worn, they should be replaced before the Ignite is used again. -
Page 34: Cleaning & Maintenance
TOP TIP – Please do not use bleach. 9.5.2 Paintwork To care for the paint, regularly wash the Ignite using soft cloths and a mild automotive detergent. Apply automotive polish to achieve a high-shine finish. It is highly recommended that polish is applied in areas where the paintwork may be exposed to adverse weather conditions. -
Page 35: Warranty
Scooterpac dealer from which it was purchased. If a repair cannot be completed a replacement part will be fitted. If a manufacturing defect is found, it must be reported in writing to the Scooterpac dealer from which the Ignite was purchased from within 28 days of purchase. -
Page 36: Specifications
11 Specifications 11.1 Technical Specification Rear Wheel Drive Sealed Transaxle Dual 12V Motor Batteries 1400w (4 Pole) 100Ah 24 Volt DC Digital Dashboard Display 6-button Tiller Dashboard Tyres Pneumatic 14” Max Speed Dial Speed Mode Dial Scooterpac Ignite | User Manual... -
Page 37: Sizes & Weights
Length 1700 mm variance of +/-3%. Width 690 mm Varies with user weight, terrain type, battery charge, Tyres 14” pneumatic tyres battery condition, tyre condition. Wheels 8 inches Maximum Slope 12 degrees Scooterpac Ignite | User Manual... -
Page 38: Servicing
12 Servicing In order to ensure continued safe operation, the Ignite must be serviced every 12 months. We recommend recording the servicing dates and locations on the sheets below. Always have your Ignite serviced at an authorised Scooterpac dealer, using original Scooterpac parts. - Page 39 Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Scooterpac Ignite | User Manual...
- Page 40 Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Scooterpac Ignite | User Manual...
- Page 41 Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Scooterpac Ignite | User Manual...
-
Page 42: Notes
13 Notes Scooterpac Ignite | User Manual... - Page 43 The Scooterpac Promise We stand by our products and services because we follow The Scooterpac Promise. Care Innovation Kindness, consideration and positivity. Creating value and driving efficiency. Respect and generosity to all. Pioneers in the marketplace. Focus on the customer and all else will follow.
- Page 44 ® Nouvotech House, Harbour Road, Oulton Broad, Suffolk, NR33 0RU, UK tel 0330 124 1733 email info@scooterpac.com web www.scooterpac.com SP/IG/M/EN/2021-A...
