- Page 1 The ultimate off-road mobility scooter User ManUal...
- Page 2 The ultimate off-road mobility scooter...
- Page 3 Become Limitless Learn more about your Invader today...
-
Page 4: Table Of Contents
Replacing Bulbs ..............28 Getting Started ..............17 10.2 Battery Care ................28 Keys & Fobs ................17 10.3 Circuit Breaker / Fuse ............29 Seat Adjustments .............. 18 10.4 Tyre Pressures ..............30 Footrests ................. 19 Scooterpac Invader | User Manual... - Page 5 Troubleshooting ..............31 12.2 Sizes & Weights ..............35 10.6 Maintenance ................ 32 13 Servicing ..................... 36 14 Notes..................... 40 10.6.1 Cleaning ..............32 11 Warranty ..................... 33 12 Specifications .................. 34 12.1 Technical Specification ..........34 Scooterpac Invader | User Manual...
-
Page 6: Welcome
Scooterpac service centre will need to keep your Invader in good Address 2 ________________________ working order. If you have any questions, please contact the Scooterpac Town/City ________________________ dealer that supplied your Invader and they will be happy to help you. -
Page 7: Essential Product Information
The following information relates to the secondary ignition switch to regulate the off-road speed. HOW TO TELL IF THE SPEED OVERRIDE KEY IGNITION IS TURNED OFF OR ON: Figure 2 – Speed override switch (OFF) Figure 1 – Speed override switch (ON) Scooterpac Invader | User Manual... - Page 8 2. Setting 2 – Safety switch – This switch does not do anything when the speed override ignition is OFF, and acts as a safety buffer between the 4mph and 8mph speed modes. 3. Setting 3 – Road speed – The user will be able to reach a maximum of 8mph, for on the road use. Scooterpac Invader | User Manual...
-
Page 9: Legal
The Invader is designed to be operated by a single person, in accordance with the legal requirements for operating a Class 3 invalid carriage in the jurisdiction in which it was sold. Operating the vehicle outside of these limitations may invalidate your warranty. Scooterpac Invader | User Manual... -
Page 10: Safety
Do not make sharp / abrupt turns at high speeds to avoid tipping. • Do not operate under the influence of any use of drugs or alcohol. • Do not operate at excessive speeds. • Do not completely submerge the unit in water. Scooterpac Invader | User Manual... -
Page 11: Safe Inclines
The Invader can climb inclines of up to 25˚ without danger. On this 25˚ incline, the Invader can stop, brake and turn. To reduce the possibility of tipping backwards on inclines, lessen the load on the back of the scooter by sliding the seat forward as much as possible and leaning forward. Figure 3 – Recommended inclines Scooterpac Invader | User Manual... -
Page 12: Introduction
Invader. If you have any questions, or are unsure of anything, please contact the dealer your originally purchased the Invader from. All maintenance work should be carried out either by an authorised Scooterpac dealer or by a certified mechanic. Scooterpac Invader | User Manual... -
Page 13: Your Invader
If there is standing water on the pavement, extra care should be taken as the Invader may have reduced ability to grip and steer. Under no circumstances should more than one person operate the vehicle at one time. Scooterpac Invader | User Manual... -
Page 14: Unintentional Movement
If the vehicle is moving an emergency stop can be performed by letting go of the throttle levers and firmly pulling the hand-operated brake levers located on the left-hand and right-hand side of the handlebar. Scooterpac Invader | User Manual... -

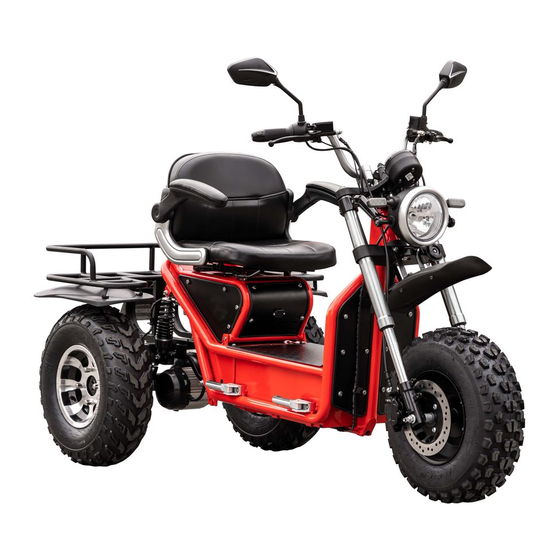

Page 15: Exterior Guide
3. Turn Signals 4. Headlight 5. Shocks 6. Tires 7. Footrests 8. Charging Port 9. Motor 10. Seat Adjust 11. Trunk 12. Charging Port 13. Seat 14. Throttle 15. Ignition Figure 4 – Exterior guide Scooterpac Invader | User Manual... -
Page 16: Handlebar Controls Guide
Figure 6 – Right Handlebar equals is 8mph. Please note – position 2 is not in use. Scooterpac Invader | User Manual If switched to this position, power to the motor will be disabled. Please see Section 2 ‘Essential Information’ for off-road settings. -
Page 17: Operating Your Invader
4. Remote Start - Press this twice to start the Invader without using the keys. Press the Figure 7 – Ignite Keys unlock alarm button (2) to disengage the remote start. Figure 8 – Alarm Fob Scooterpac Invader | User Manual... -
Page 18: Seat Adjustments
To move the seat forwards or backwards, grasp the black lever on the right- hand side underneath the seat whilst sitting down. Push firmly against the floor with your feet or pull on the handles mounted to the doors. Figure 9 Seating position adjustment handle Scooterpac Invader | User Manual... -
Page 19: Footrests
The Invader is fitted with extendable footrests so you can choose your riding style. Using your feet push the footrests towards the Invader and they will pop out. Reversing this process will fold them back into the sides of the Invader. Scooterpac Invader | User Manual... -
Page 20: Ignition
2. Put the key into the position 2 (see fig. 6) and push down while turning counterclockwise. 3. Once it is in position 3 (see fig. 6) remove the key Figure 10 – Ignition barrel and reverse this process to disengage the steering lock. Scooterpac Invader | User Manual... -
Page 21: Acceleration & Braking
To slow down, release the throttle lever and the Invader will decrease speed. The hydraulic disc braking system can be activated by pulling the brake levers located on the left and right side of the handlebars. Figure 12 – Brake lever Scooterpac Invader | User Manual... -
Page 22: Engaging The Brake Lock
Release the brake lever and you are ready to go! 9.6.3 Reversing Hold down the green button on the left handlebar (see fig 3.) whilst gently twisting the throttle lever (see fig. 7). Figure 15 – Brake lock This will engage the reversing mode. Scooterpac Invader | User Manual... - Page 23 Check the wing mirrors prior to manoeuvres. The wing mirrors fitted to the Invader are large, giving improved visibility and safety. They can be adjusted by gently twisting the housing. Scooterpac Invader | User Manual...
-
Page 24: Display
*PLEASE NOTE* The battery meter will dip down when the Invader is in motion. The metre will return to the previous position Figure 16 - Digital LCD Display when becoming stationary. This is normal. Scooterpac Invader | User Manual... -
Page 25: Lights
Invader. They can simply be operated by turning the headlights on and then turning the ignition off, the lights will remain on for 10 seconds and then will automatically turn off. Scooterpac Invader | User Manual... -
Page 26: Horn
The electric horn is activated by pressing the button on the left handlebar (fig. 3). The horn should only be used in compliance with the Highway Code. The horn will only sound if the ignition is switched on. Scooterpac Invader | User Manual... -
Page 27: Charging The Invader
12 hours continuously. If there are long periods where you decide not to use your scooter, we recommend that batteries are charged at least once a fortnight. This will ensure they remain healthy and are ready for regular usage. Scooterpac Invader | User Manual... -
Page 28: Maintenance
LEDs are energy efficient and long lasting however they may eventually require replacement. LED bulbs can be purchased from the dealer that supplied your Invader. Replacing bulbs should only be completed by a certified Scooterpac dealer, as it involves disassembling units that must be resealed to the original manufacturing specification. -
Page 29: Circuit Breaker / Fuse
Open the seat lock (see previous page for where the lock is located) and switch this switch to on. Figure 18 – Figure 19 – Circuit breaker Circuit breakers Scooterpac Invader | User Manual... -
Page 30: Tyre Pressures
The tyres should always have at least 3mm of tread to provide adequate grip on the road surface. If the tyres become worn, they should be replaced before the Invader is used again. Front tyre pressure: 15psi Rear tyre pressure: 15psi Scooterpac Invader | User Manual... -
Page 31: Troubleshooting
• If the machine turns on (display etc.) however the motor does not run, make sure the brake lock is not on. The motor will not engage as long as any brake is being pressed. Scooterpac Invader | User Manual... -
Page 32: Maintenance
When storing the Invader outside, use a cover to prevent weather damage. If possible, store inside otherwise, if possible, bring the battery inside. • Ensure your Invader undergoes a yearly service and safety check at your local Scooterpac dealer. • Do not overcharge the battery once the battery is fully charged unplug it as soon as possible. -
Page 33: Warranty
Scooterpac dealer from which it was purchased. If a repair cannot be completed a replacement part will be fitted. If a manufacturing defect is found, it must be reported in writing to the Scooterpac dealer from which the Invader was purchased from within 28 days of purchase. -
Page 34: Specifications
60V 32Ah SLA 2 x 500W Rated 1500W Peak 60V 4amp off-board Battery Charger Speed 4mph, 8mph, 16mph charger Digital Dashboard Display Alarm System Dashboard Locking Speedometer Manual Steering Locking Odometer / Tripmeter Tyres Pneumatic Scooterpac Invader | User Manual... -
Page 35: Sizes & Weights
Front - 21” x 7” x 10” Varies with user weight, terrain type, battery charge, Rear - 23” x 7” x 10” battery condition, tyre condition. Maximum Slope 25 degrees Seat Back Height 340 mm Seat Width 475 mm Scooterpac Invader | User Manual... -
Page 36: Servicing
In order to ensure continued safe operation, the Invader must be serviced every 12 months. We recommend recording the servicing dates and locations on the sheets below. Always have your Invader serviced at an authorised Scooterpac dealer, using original Scooterpac parts. - Page 37 Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Scooterpac Invader | User Manual...
- Page 38 Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Scooterpac Invader | User Manual...
- Page 39 Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Scooterpac Invader | User Manual...
-
Page 40: Notes
14 Notes Scooterpac Invader | User Manual... - Page 41 Scooterpac Invader | User Manual...
- Page 42 Scooterpac Invader | User Manual...
- Page 43 The Scooterpac Promise We stand by our products and services because we follow The Scooterpac Promise. Care Innovation Kindness, consideration and positivity. Creating value and driving efficiency. Respect and generosity to all. Pioneers in the marketplace. Focus on the customer and all else will follow.
- Page 44 ® Nouvotech House, Harbour Road, Oulton Broad, Suffolk, NR33 0RU, UK tel 0330 124 1733 email info@scooterpac.com web www.scooterpac.com SP/IN/M/EN/2021-C...
