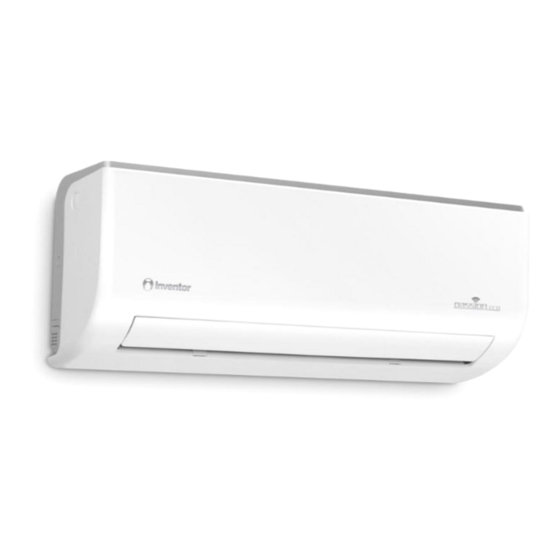

INVENTOR P9VI32-09WF Service Manual

Air conditioning systems wall mounted unit
Hide thumbs Also See for P9VI32-09WF:
Table of Contents

Advertisement

Quick Links

Download this manual
AIR CONDITIONING SYSTEMS
WALL MOUNTED UNIT
• SERVICE MANUAL
MODELS:
P9VI32-09WF/ P9VO32-09
P9VI32-12WF/ P9VO32-12
P9VI32-18WF/ P9VO32-18
P9VI32-24WF/ P9VO32-24
ENGLISH
