Southern States WAGT20H48STA Owner's Manual

20.0 hp 48 inch lawn tractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
For Parts Call K&T 606-678-9623 or 606-561-4983
MODEL NO. WAGT20H48STA
20.0 HP 48 INCH
LAWN TRACTOR
•
Assembly
•
Operation
•
For Parts and Service, contact our authorized distributor:
call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886
Maintenance
•
Service and Adjustments
•
Storage
•
Troubleshooting
•
www.mymowerparts.com
Repair Parts
184552 Rev. 2 1.17.03 JH
PRINTED IN U.S.A.
00273

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WAGT20H48STA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Southern States WAGT20H48STA

Summary of Contents for Southern States WAGT20H48STA

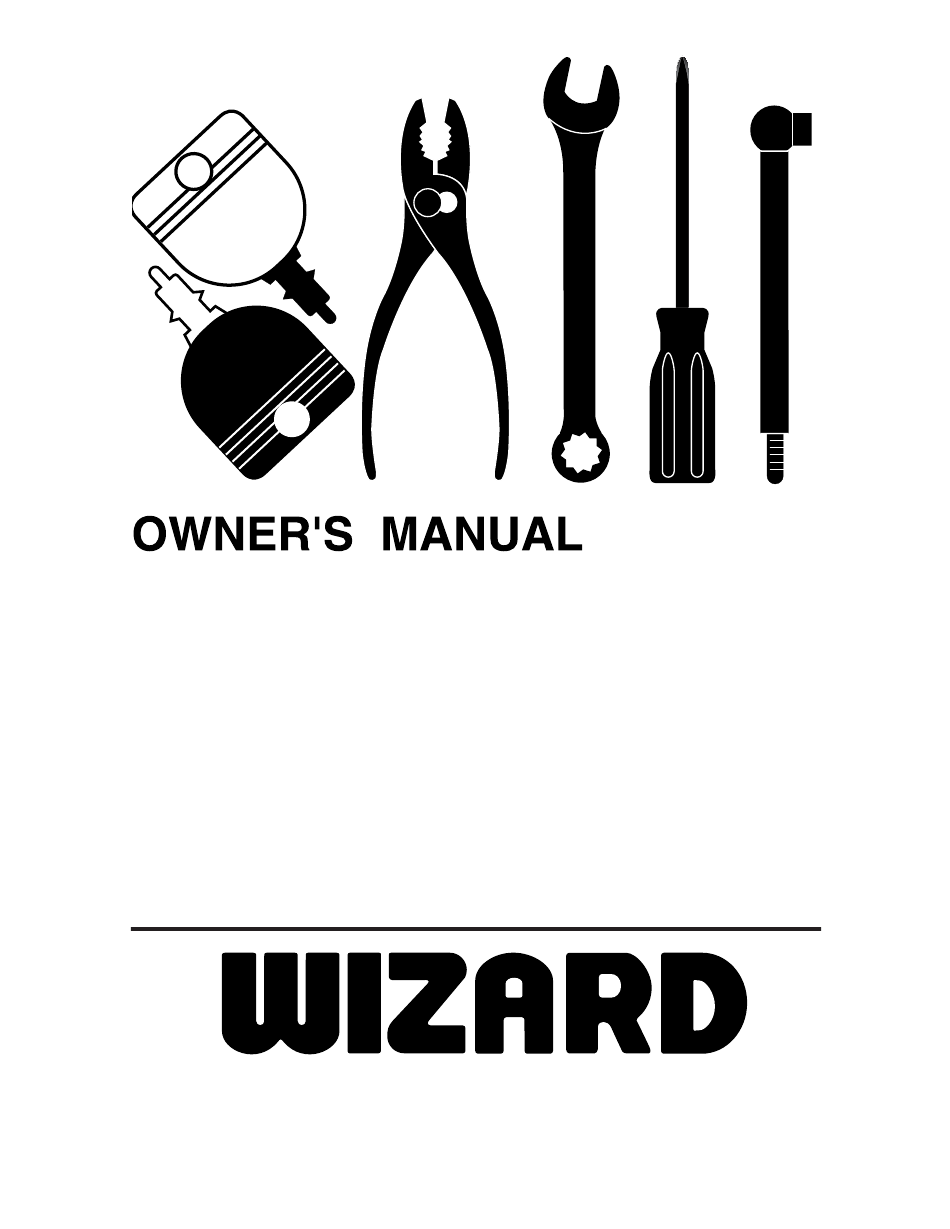

  • Page 1 For Parts Call K&T 606-678-9623 or 606-561-4983 MODEL NO. WAGT20H48STA 20.0 HP 48 INCH LAWN TRACTOR • Assembly • Operation • Maintenance • Service and Adjustments • Storage • Troubleshooting • Repair Parts For Parts and Service, contact our authorized distributor:...
