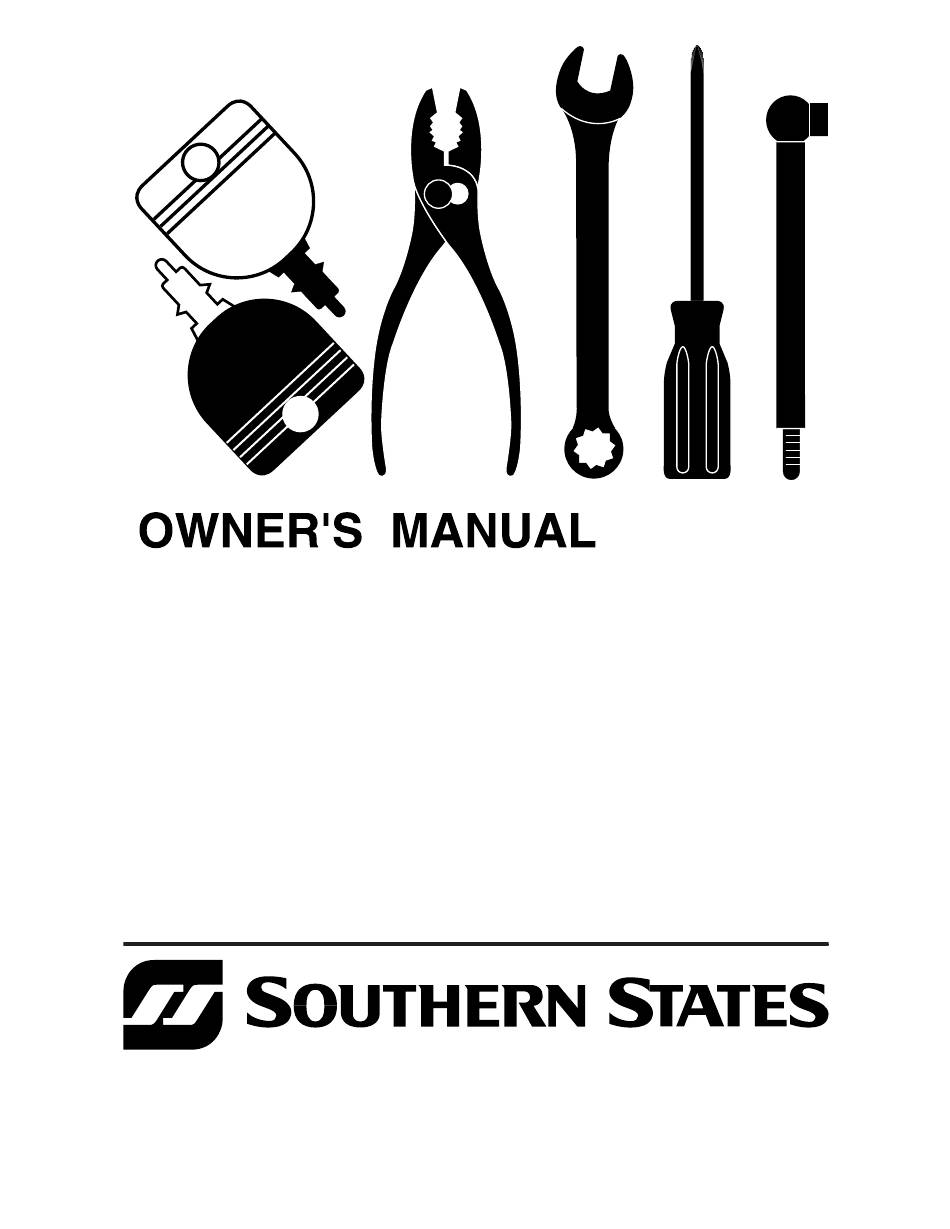

Southern States SPGT2254 Owner's Manual

22.0 hp 54 inch garden tractor
Hide thumbs Also See for SPGT2254:
Table of Contents

Advertisement

Quick Links

Download this manual
For Parts Call K&T 606-678-9623 or 606-561-4983
MODEL NO. SPGT2254
22.0 HP 54 INCH
GARDEN TRACTOR
•
Assembly
•
Operation
•
For Parts and Service, contact our authorized distributor:
call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886
Maintenance
•
Service and Adjustments
•
Storage
•
Troubleshooting
www.mymowerparts.com
195482 Rev. 2 3.22.05 RD
PRINTED IN U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPGT2254 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Southern States SPGT2254

Summary of Contents for Southern States SPGT2254

  • Page 1 For Parts Call K&T 606-678-9623 or 606-561-4983 MODEL NO. SPGT2254 22.0 HP 54 INCH GARDEN TRACTOR • Assembly • Operation • Maintenance • Service and Adjustments • Storage • Troubleshooting For Parts and Service, contact our authorized distributor: call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886 195482 Rev.

  • Page 2: Table Of Contents

    For Parts Call K&T 606-678-9623 or 606-561-4983 TABLE OF CONTENTS Warranty ..........2 Maintenance ........19 Maintenance Schedule ......19 Safety Rules .......... 3 Service and Adjustments..... 23 Product Specifi cations ......6 Storage ..........29 Assembly/Pre-Operation ....... 8 Troubleshooting ........30 Operation..........

  • Page 3: Safety Rules

    For Parts Call K&T 606-678-9623 or 606-561-4983 SAFETY RULES IMPORTANT: This cutting machine is ca pa ble of amputating hands and feet and throw- ing objects. Failure to observe the fol low ing safety instructions could result in serious injury or death. •...
  • Page 4 For Parts Call K&T 606-678-9623 or 606-561-4983 SAFETY RULES II. SLOPE OPERATION • Never carry children, even with the blades shut off. They may fall off and Slopes are a major factor related to loss of be seriously injured or interfere with control and tip-over accidents, which can safe machine operation.
  • Page 5 For Parts Call K&T 606-678-9623 or 606-561-4983 SAFETY RULES • Remove gas-powered equipment from Check their proper operation regularly. the truck or trailer and refuel it on the • Keep machine free of grass, leaves, or ground. If this is not possible, then other debris build-up.

  • Page 6: Product Specifications

    For Parts Call K&T 606-678-9623 or 606-561-4983 PRODUCT SPECIFICATIONS CUSTOMER RE SPON SI BIL I TIES • Read and observe the safety rules. Gasoline 5 Gallons • Follow a regular schedule in main- Capacity Unleaded tain ing, caring for and using your tractor. and Type: Regular •...

  • Page 7: Unassembled Parts

    For Parts Call K&T 606-678-9623 or 606-561-4983 UNASSEMBLED PARTS Steering Wheel Steering Sleeve Steering Wheel Adapter Steering Wheel (1) Large Flat Washer Insert Nose Roller Gauge Wheels (4) Adjusting (2) Locknuts (4) Retainer Springs (double loop) 5/16-18 Retainer Spring (4) Locknut 3/8-16 (4) Washers 3/8 x 3/4 x 14 Ga.

  • Page 8: Assembly/Pre-Operation

    For Parts Call K&T 606-678-9623 or 606-561-4983 ASSEMBLY/PRE-OPERATION Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you as sem ble must be tightened securely. Use the correct tools as nec es sary to in sure proper tightness.
  • Page 9 For Parts Call K&T 606-678-9623 or 606-561-4983 INSTALL SEAT 3. Place gearshift lever in neutral (N) Adjust seat before tightening adjustment po si tion. knob. 4. Roll tractor forward off skid. 1. Remove adjustment knob and fl at TO DRIVE TRACTOR OFF SKID (See washer securing seat to cardboard Op er a tion section for location and packing and set aside for assembly of...
  • Page 10 For Parts Call K&T 606-678-9623 or 606-561-4983 ASSEMBLE GAUGE WHEELS TO INSTALL MOWER AND DRIVE MOWER DECK BELT The gauge wheels are designed to keep See MOWER AND DRIVE BELT AS- the mower deck in proper position when SEMBLY Supplement Sheet for additional operating mower.
  • Page 11 For Parts Call K&T 606-678-9623 or 606-561-4983 ✓CHECKLIST plate and mower bracket. 8. Go to right hand side of mower and Before you operate your new trac tor, we insert pin and retainer spring in the wish to assure that you receive the best same manner.

  • Page 12: Operation

    For Parts Call K&T 606-678-9623 or 606-561-4983 OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. FAST REVERSE HIGH SLOW NEUTRAL CHOKE IGNITION SWITCH ENGINE START REVERSE ENGINE ON PARKING BRAKE PARKING BRAKE PARKING BRAKE...
  • Page 13 For Parts Call K&T 606-678-9623 or 606-561-4983 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. Hourmeter Ignition Ros "ON"...
  • Page 14 For Parts Call K&T 606-678-9623 or 606-561-4983 The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any ad just ments or repairs.
  • Page 15 For Parts Call K&T 606-678-9623 or 606-561-4983 The cutting height range is ap prox i mate ly TO OPERATE MOWER 1-1/2" to 4-1/2". The heights are mea- Your tractor is equipped with an operator sured from the ground to the blade tip with presence sensing switch.
  • Page 16 For Parts Call K&T 606-678-9623 or 606-561-4983 USING THE REVERSE OPERATION TO TRANSPORT SYSTEM - • Raise attachment lift to highest position with at tach ment lift control. 1. Depress clutch/brake pedal all the way • When pushing or towing your tractor, down and hold.
  • Page 17 For Parts Call K&T 606-678-9623 or 606-561-4983 ADD GASOLINE NOTE: Before starting, read the warm and • Fill fuel tank to bottom of fi ller neck. Do cold starting procedures below. not overfi ll. Use fresh, clean, regular 6. Insert key into ignition and turn key un lead ed gasoline with a minimum of clockwise to start position and release 87 octane.
  • Page 18 For Parts Call K&T 606-678-9623 or 606-561-4983 • If grass is extremely tall, it should be MOWING TIPS mowed twice to reduce load and pos- • Tire chains cannot be used when the sible fi re hazard from dried clip pings. mower hous ing is attached to tractor.

  • Page 19: Maintenance

    For Parts Call K&T 606-678-9623 or 606-561-4983 MAINTENANCE MAINTENANCE SCHEDULE FILL IN DATES AS YOU COMPLETE REGULAR SERVICE SERVICE DATES Check Brake Operation Check Tire Pressure Check Operator Presence and ROS Systems Check for Loose Fasteners Sharpen/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling...
  • Page 20 For Parts Call K&T 606-678-9623 or 606-561-4983 TRACTOR CHECK REVERSE OPERATION (ROS) SYSTEM Always observe safety rules when per- form ing any main te nance. • When the engine is running with the ignition switch in the engine "ON" posi- BRAKE OPERATION tion and the at tach ment clutch engaged, If tractor requires more than fi...
  • Page 21 For Parts Call K&T 606-678-9623 or 606-561-4983 balanced. An unbalanced blade will cause TRANSAXLE COOLING excessive vibration and even tual damage Keep transaxle free from build-up of dirt to mower and engine. and chaff which can restrict cooling. • The blade can be sharpened with a fi le CHECK TRANSAXLE OIL LEVEL or on a grinding wheel.
  • Page 22 For Parts Call K&T 606-678-9623 or 606-561-4983 TO CHANGE ENGINE OIL AIR FILTER Determine temperature range expected Your engine will not run properly using before oil change. All oil must meet API a dirty air fi lter. Service air cleaner more service classifi...

  • Page 23: Service And Adjustments

    For Parts Call K&T 606-678-9623 or 606-561-4983 SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER- VICE OR AD JUST MENTS: 1. Depress clutch/brake pedal fully and set parking brake. 2. Place gearshift lever in neutral (N) position. 3.
  • Page 24 For Parts Call K&T 606-678-9623 or 606-561-4983 • If adjustment is necessary, make adjust- NOTE: Each full turn of nut “C” will ment on one side of mower only. change distance “B” by approximately • To raise one side of mower, tighten lift 3/16".
  • Page 25 For Parts Call K&T 606-678-9623 or 606-561-4983 TO REPLACE MOWER DRIVE BELT MOWER DRIVE BELT INSTALLATION 1. Install belt around both mandrel pulleys MOWER DRIVE BELT REMOVAL and around idler pulleys as shown. 1. Park tractor on a level surface. En gage 2.
  • Page 26 For Parts Call K&T 606-678-9623 or 606-561-4983 TO ADJUST ATTACHMENT CLUTCH 4. Road test tractor for proper stopping distance as stated above. Readjust The electric clutch should provide years if nec es sary. If stopping distance is of service. The clutch has a built-in brake still greater than fi...
  • Page 27 For Parts Call K&T 606-678-9623 or 606-561-4983 REAR WHEEL - 7. Reinstall mower drive belt onto electric clutch pulley. 1. Block rear axle securely. IMPORTANT: Check Brake Adjustment. 2. Remove fi ve (5) hub bolts to allow wheel removal. 3. Repair tire and reassemble. Replace TRACTOR V-BELT DRIVE SCHEMATIC and tighten hub bolts securely.
  • Page 28 For Parts Call K&T 606-678-9623 or 606-561-4983 TO REPLACE HEADLIGHT BULB 1. Raise hood. 2. Pull bulb hold er out of the hole in the back side of the grill. 3. Replace bulb in holder and push bulb holder securely back into the hole in the backside of the grill.

  • Page 29: Storage

    For Parts Call K&T 606-678-9623 or 606-561-4983 STORAGE Also, alcohol blended fuels (called gasohol Immediately prepare your tractor for stor- or using ethanol or methanol) can attract age at the end of the season or if the trac- moisture which leads to separation and tor will not be used for 30 days or more.

  • Page 30: Troubleshooting

    For Parts Call K&T 606-678-9623 or 606-561-4983 TROUBLESHOOTING CHART: PROBLEM CAUSE CORRECTION Will not start 1. Out of fuel. 1. Fill fuel tank. 2. Engine not “CHOKED” 2. See “TO START ENGINE” in properly. Operation section. 3. Engine fl ooded. 3.
  • Page 31 For Parts Call K&T 606-678-9623 or 606-561-4983 TROUBLESHOOTING CHART: PROBLEM CAUSE CORRECTION Loss of power 5. Low oil level/dirty oil. 5. Check oil level/change oil. (continued) 6. Faulty spark plug. 6. Clean and regap or change spark plug. 7. Dirty fuel fi lter. 7.
  • Page 32 For Parts Call K&T 606-678-9623 or 606-561-4983 TROUBLESHOOTING CHART: PROBLEM CAUSE CORRECTION Mower blades will 1. Obstruction in clutch 1. Remove obstruction. not rotate mechanism. 2. Worn/damaged mower drive 2. Replace mower drive belt. belt. 3. Frozen idler pulley. 3. Replace idler pulley. 4.
  • Page 33 For Parts Call K&T 606-678-9623 or 606-561-4983 www.mymowerparts.com...
  • Page 34 For Parts Call K&T 606-678-9623 or 606-561-4983 This product has been expertly en gi neered and carefully manu fac tured to rigid quality stan dards. As with all mechanical products, some adjustments or part replacement may be necessary during the life of your unit. For Parts and service, contact our authorized distributor: call 1-800-849-1297 •...
