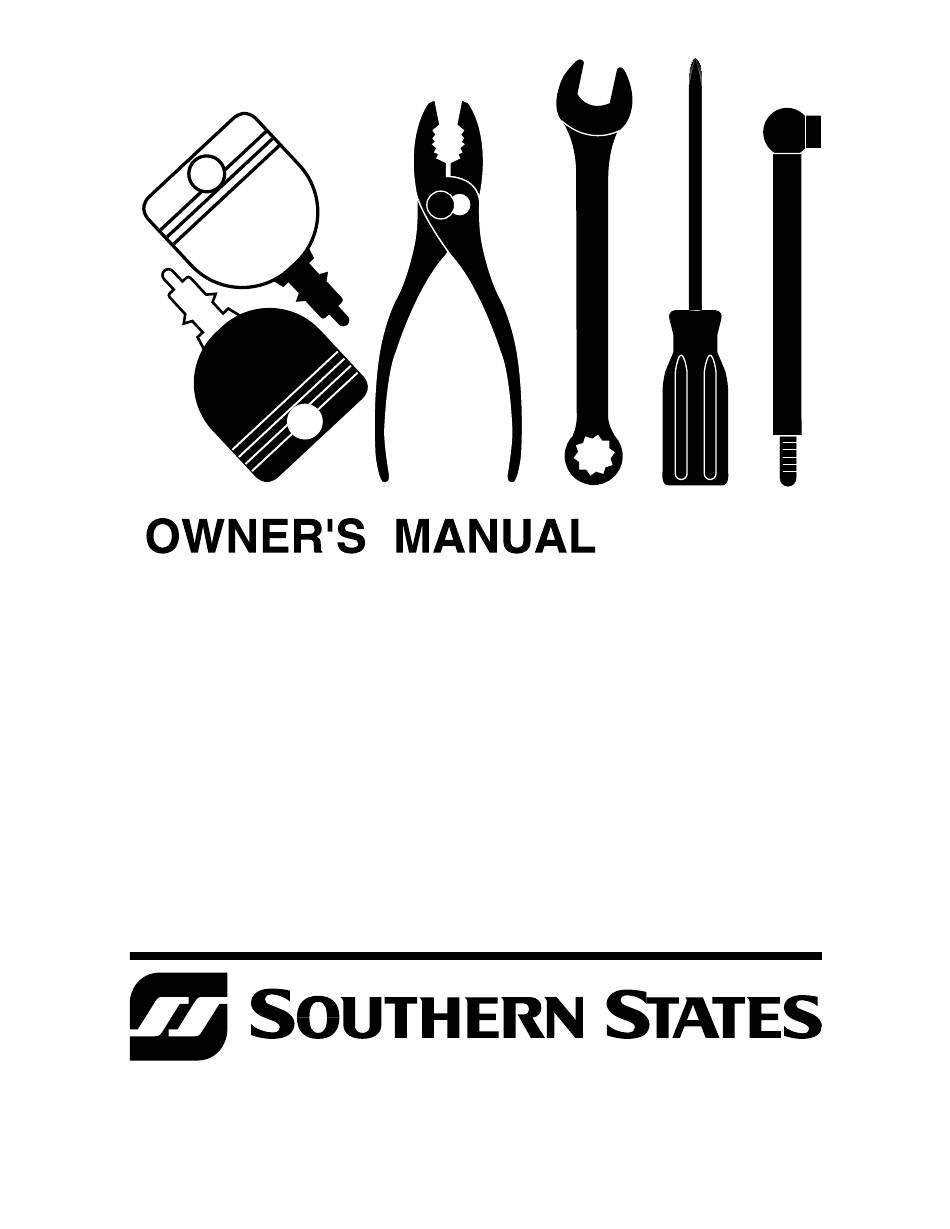

  6. Owner's manual

Southern States SO17542STB Owner's Manual

17.5 hp 42 inch lawn tractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
For Parts Call K&T 606-678-9623 or 606-561-4983
MODEL NO. SO17542STB
17.5 HP 42 INCH
LAWN TRACTOR
•
Assembly
•
Operation
•
For Parts and Service, contact our authorized distributor:
call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886
Maintenance
•
Service and Adjustments
•
Storage
•
Troubleshooting
•
www.mymowerparts.com
Repair Parts
191780 03.01.04 TR
PRINTED IN U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SO17542STB and is the answer not in the manual?

Questions and answers

Related Manuals for Southern States SO17542STB

Summary of Contents for Southern States SO17542STB

  • Page 1 For Parts Call K&T 606-678-9623 or 606-561-4983 MODEL NO. SO17542STB 17.5 HP 42 INCH LAWN TRACTOR • Assembly • Operation • Maintenance • Service and Adjustments • Storage • Troubleshooting • Repair Parts For Parts and Service, contact our authorized distributor: call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886 191780 03.01.04 TR...

  • Page 2: Table Of Contents

    For Parts Call K&T 606-678-9623 or 606-561-4983 TABLE OF CONTENTS Warranty ..........2 Maintenance ........17 Safety Rules .......... 3 Service and Adjustments..... 21 Product Specifi cations ......6 Storage ..........27 Assembly/Pre-Operation ....... 8 Troubleshooting ........28 Operation..........11 Repair Parts.........

  • Page 3: Safety Rules

    For Parts Call K&T 606-678-9623 or 606-561-4983 SAFETY RULES IMPORTANT: This cutting machine is ca pa ble of amputating hands and feet and throw- ing objects. Failure to observe the fol low ing safety instructions could result in serious injury or death. •...
  • Page 4 For Parts Call K&T 606-678-9623 or 606-561-4983 SAFETY RULES • Watch for holes, ruts, or bumps. Un- • Use extra care when approaching blind even terrain could overturn the machine. corners, shrubs, trees, or other objects Tall grass can hide ob sta cles. that may obscure vision.
  • Page 5 For Parts Call K&T 606-678-9623 or 606-561-4983 SAFETY RULES • Remove obstacles such as rocks, tree • Be sure the area is clear of other people limbs, etc. before mowing. Stop machine if anyone • Watch for holes, ruts, or bumps. Uneven enters the area.

  • Page 6: Product Specifi Cations

    For Parts Call K&T 606-678-9623 or 606-561-4983 PRODUCT SPECIFICATIONS CUSTOMER RE SPON SI BIL I TIES • Read and observe the safety rules. Gasoline 1.25 • Follow a regular schedule in main- Capacity and Unleaded tain ing, caring for and using your tractor. Type: Regular •...
  • Page 7 For Parts Call K&T 606-678-9623 or 606-561-4983 UNASSEMBLED PARTS Steering Wheel Steering Wheel Insert (1) Hex nut 1/2-20 (1) Large Flat Washer Steering (1) Hex Bolt 1/4-28 x 1-1/4 (1) Locknut Extension 1/4-28 Shaft Steering Wheel Steering Adapter Boot Seat (1) Washer 17/32 x 1-3/16 x 12 Gauge (1) Lock...

  • Page 8: Assembly/Pre-Operation

    For Parts Call K&T 606-678-9623 or 606-561-4983 ASSEMBLY/PRE-OPERATION Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you as sem ble must be tightened securely. Use the correct tools as nec es sary to in sure proper tightness.
  • Page 9 For Parts Call K&T 606-678-9623 or 606-561-4983 4. Push down on seat to engage shoulder NOTE: You may now roll or drive your bolt in slot and pull seat towards rear of tractor off the skid. Follow the ap pro pri ate tractor.
  • Page 10 For Parts Call K&T 606-678-9623 or 606-561-4983 ✓CHECKLIST CHECK TIRE PRESSURE The tires on your tractor were over in - Before you operate your new trac tor, we fl ated at the factory for shipping pur pos es. wish to assure that you receive the best Correct tire pressure is important for best per for mance and sat is fac tion from this cutting performance.

  • Page 11: Operation

    For Parts Call K&T 606-678-9623 or 606-561-4983 OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. FAST IGNITION REVERSE HIGH SLOW NEUTRAL CHOKE LIGHTS ON ENGINE START ENGINE ON PARKING BRAKE ENGINE OFF PARKING BRAKE...
  • Page 12 For Parts Call K&T 606-678-9623 or 606-561-4983 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. Ignition Switch Attachment Light Switch Position...
  • Page 13 For Parts Call K&T 606-678-9623 or 606-561-4983 The op er a tion of any trac tor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Al ways wear safety glass es or eye shields while op er at ing your trac tor or per form ing any ad just ments or repairs.
  • Page 14 For Parts Call K&T 606-678-9623 or 606-561-4983 • For best cutting performance, grass Attachment Clutch Lever “Engaged” Position over 6 inches in height should be mowed twice. Make the fi rst cut rela- Attachemnt tively high; the second to desired height. Lift Lever High Position TO ADJUST GAUGE WHEELS...
  • Page 15 For Parts Call K&T 606-678-9623 or 606-561-4983 BEFORE STARTING THE ENGINE TO START ENGINE When starting the engine for the fi rst time CHECK ENGINE OIL LEVEL or if the engine has run out of fuel, it will The engine in your tractor has been take extra cranking time to move fuel from shipped, from the factory, already fi...
  • Page 16 For Parts Call K&T 606-678-9623 or 606-561-4983 MOWING TIPS • Mower should be properly leveled for best mowing performance. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments sec tion of this manual. • The left hand side of mower should be used for trim ming.

  • Page 17: Maintenance Schedule

    For Parts Call K&T 606-678-9623 or 606-561-4983 MAINTENANCE MAINTENANCE SCHEDULE FILL IN DATES AS YOU COMPLETE REGULAR SERVICE SERVICE DATES Check Brake Operation Check Tire Pressure Check Operator Presence and Interlock Systems Check for Loose Fasteners Sharpen/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling...
  • Page 18 For Parts Call K&T 606-678-9623 or 606-561-4983 TRACTOR 4. Reassemble blade bolt, lock washer and fl at washer in exact order as Always observe safety rules when per- shown. form ing any main te nance. 5. Tighten blade bolt securely (27-35 Ft. BRAKE OPERATION Lbs.
  • Page 19 For Parts Call K&T 606-678-9623 or 606-561-4983 BATTERY NOTE: Although multi-viscosity oils (5W30, 10W30 etc.) improve starting in Your tractor has a battery charging sys tem cold weather, they will result in increased which is suf fi cient for normal use. How- oil consumption when used above 32°F.
  • Page 20 For Parts Call K&T 606-678-9623 or 606-561-4983 8. Use gauge on oil fi ll cap/dipstick for MUFFLER checking level. For accurate reading, Inspect and replace corroded muffl er and tighten dipstick cap securely onto the spark arrester (if equipped) as it could cre- tube before removing dipstick.

  • Page 21: Service And Adjustments

    For Parts Call K&T 606-678-9623 or 606-561-4983 SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER- VICE OR AD JUST MENTS: 1. Depress clutch/brake pedal fully and set parking brake. 2. Place gearshift lever in neutral (N) position. 3.
  • Page 22 For Parts Call K&T 606-678-9623 or 606-561-4983 TO LEVEL MOWER HOUSING • Before making any necessary ad just - ments, check that both front links are Adjust the mower while tractor is parked equal in length. on level ground or driveway. Make sure •...
  • Page 23 For Parts Call K&T 606-678-9623 or 606-561-4983 TO REPLACE MOWER BLADE DRIVE TO CHECK AND ADJUST BRAKE BELT Your tractor is equipped with an ad just able brake system which is mounted on the The mower blade drive belt may be re- right side of the transaxle.
  • Page 24 For Parts Call K&T 606-678-9623 or 606-561-4983 TO REPLACE MOTION DRIVE BELT TO AD JUST STEER ING WHEEL ALIGN- MENT Park the tractor on level surface. En gage parking brake. For as sis tance, there is a If steering wheel crossbars are not belt installation guide decal on bottom side hor i zon tal (left to right) when wheels are of left footrest.
  • Page 25 For Parts Call K&T 606-678-9623 or 606-561-4983 TO START ENGINE WITH A WEAK REPLACING BATTERY WARNING: Do not short bat tery ter- BAT TERY mi nals by al low ing a wrench or any other WARNING: Lead-acid batteries gen- object to contact both terminals at the er ate ex plo sive gases.
  • Page 26 For Parts Call K&T 606-678-9623 or 606-561-4983 TO REPLACE HEADLIGHT BULB TO REMOVE HOOD AND GRILL AS- SEMBLY 1. Raise hood. 2. Pull bulb holder out of the hole in the 1. Raise hood. backside of the grill. 2. Unsnap headlight wire connector. 3.

  • Page 27: Storage

    For Parts Call K&T 606-678-9623 or 606-561-4983 STORAGE Immediately prepare your tractor for stor- blended fuels (called gasohol or using age at the end of the season or if the trac- ethanol or methanol) can attract moisture tor will not be used for 30 days or more. which leads to separation and formation of acids during storage.

  • Page 28: Troubleshooting

    For Parts Call K&T 606-678-9623 or 606-561-4983 TROUBLESHOOTING CHART PROBLEM CAUSE CORRECTION Will not start 1. Out of fuel. 1. Fill fuel tank. 2. Engine not “CHOKED” 2. See “TO START ENGINE” in properly. Operation section. 3. Engine fl ooded. 3.
  • Page 29 For Parts Call K&T 606-678-9623 or 606-561-4983 TROUBLESHOOTING CHART PROBLEM CAUSE CORRECTION Loss of power 3. Build-up of grass, leaves and 3. Clean un der side of mower (continued) trash under mower. housing. 4. Dirty air fi lter. 4. Clean/replace air fi lter. 5.
  • Page 30 For Parts Call K&T 606-678-9623 or 606-561-4983 TROUBLESHOOTING CHART PROBLEM CAUSE CORRECTION Poor grass 1. Engine speed too slow. 1. Place throttle control in discharge “FAST” position. 2. Travel speed too fast. 2. Shift to slower speed. 3. Wet grass. 3.
  • Page 31 For Parts Call K&T 606-678-9623 or 606-561-4983 www.mymowerparts.com...
