Beghelli Fortezza Plu Instructions page 3

PARTS L IST
1. Clear Cover
2. Stencil
3. Frame
4. Fiber
5. Lightpipe
6. LED board
7. Test switch
8. Ceiling mount gasket
9. Tamper proof screws
10. O-ring
11. Octagon box (not supplied)
12. Bushing
13. Canopy Gasket
14. Canopy
15. Canopy mounting base
16. Back plate
17. Cap screws
18. Wall mount gasket
19. Oval head screws
20. Battery box
2
19
BEGHELLI USA 3250 CORPORATE WAY - MIRAMAR, FL 33025 • P: 800.726.4316 • P: 954.442.6600 • F: 954.442.6677
926000318
4
D

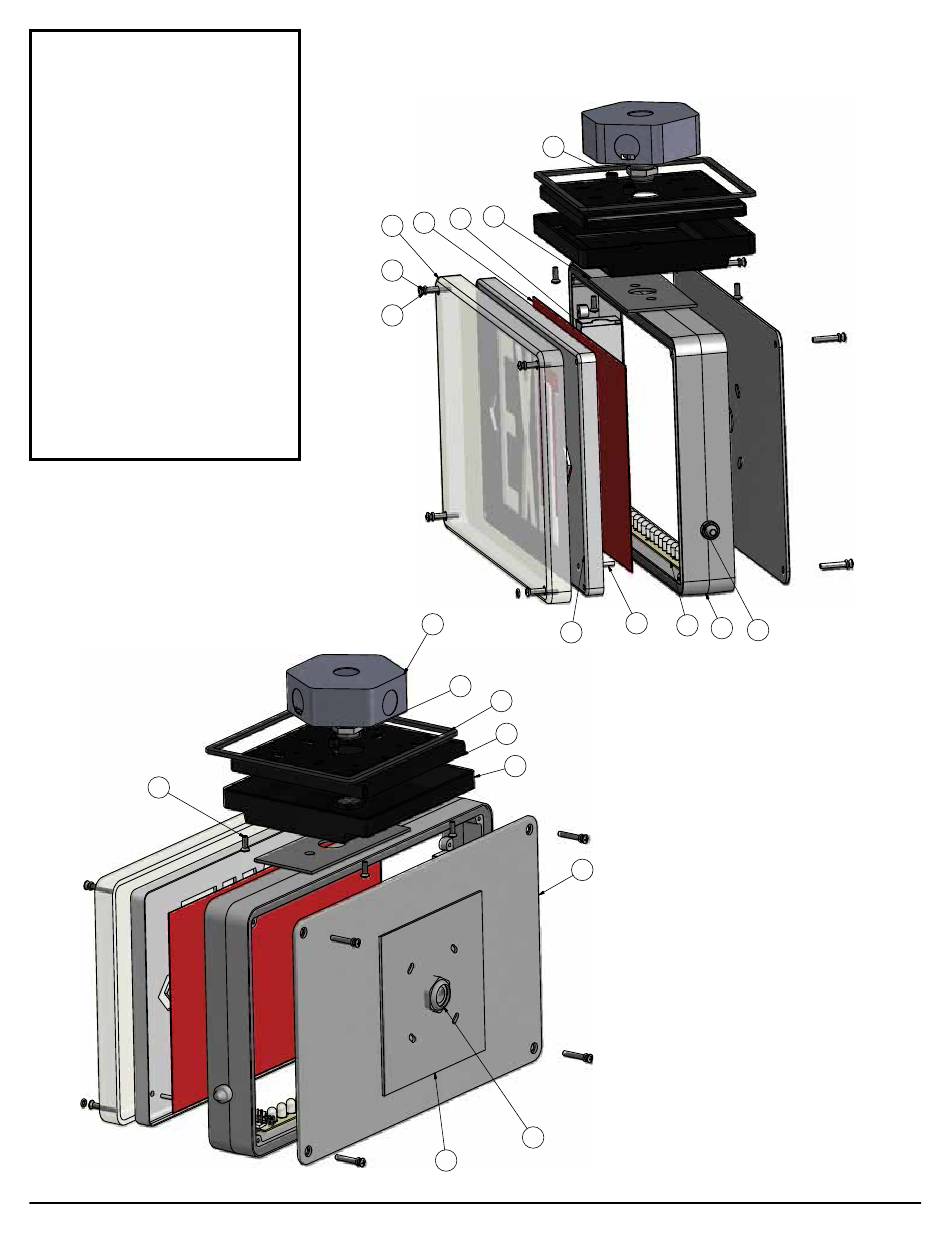

Figure 1
20
4
1
9
10
C
11
B
12
Parts List
ITEM DESCRIPTION
1 CLEAR COVER
2 STENCIL
3 FRAME
4 FIBER
5 LIGHTPIPE
6 LED BOARD
7 TEST SWITCH
8 CEILING MOUNT GASKET
9 TAMPER PROOF SCREWS
10 O-RING
11
OCTAGON BOX(SUPPI ED BT OTHERS)
12 BUSHING
13 CANOPY GASKET
A
14 CANOPY
15 CANOPY MOUNTING BASE
16 BACK PLATE
17 CAP SCREWS
18 WALL MOUNT GASKET
19 OVAL HEAD SCREWS
20 BATTERY BOX
4
18
17
8
1
5
2
D
13
15
14
16
C
12
B
3
6
3
7
3
02/10/14
PART #
