ILLUMINA
BS100LED
®
INDUSTRIAL
VAPOR TIGHT
INSTALLATION INSTRUCTIONS
926000292
Beghelli Canada
Beghelli USA
Beghelli Mexico
3900 14th Avenue
3250 Corporate Way
Av El Marques No. 70, Interior 4
Markham, Ontario L3R 4R3 Canada
Miramar, Florida 33025 USA
76246 Mpio. El Marquez
P: (905) 948-9500
P: 800 726 4316 / P: 954 442 6600
Queretano, QRO. Mexico
F: (905) 948-8673
F: 954 442 6677
P: +52 442-221-6439 / F: +52 442-221-6215
www.BeghelliCanada.com
www.BeghelliUSA.com
www.BeghelliMexico.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Beghelli ILLUMINA BS100LED Series
Summary of Contents for Beghelli ILLUMINA BS100LED Series

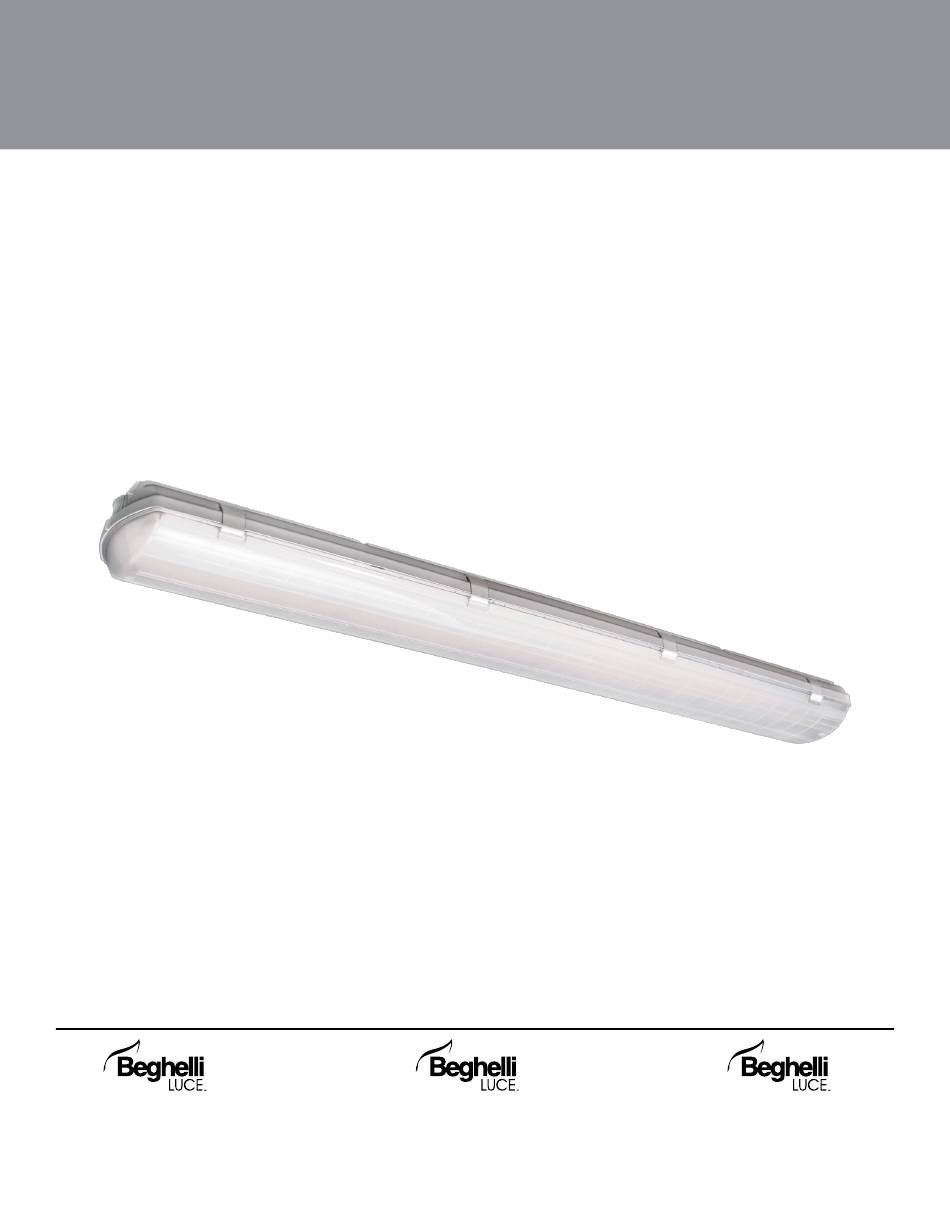

- Page 1 ILLUMINA BS100LED ® INDUSTRIAL VAPOR TIGHT INSTALLATION INSTRUCTIONS 926000292 Beghelli Canada Beghelli USA Beghelli Mexico 3900 14th Avenue 3250 Corporate Way Av El Marques No. 70, Interior 4 Markham, Ontario L3R 4R3 Canada Miramar, Florida 33025 USA 76246 Mpio. El Marquez...
- Page 2 3. Always mount equipment in a location that is not subjected to tampering by unauthorized personnel. 4. The use of accessory equipment not recommended by Beghelli, may cause an unsafe condition, and will void the warranty. 5. Do not use this equipment other than its intended purpose.
- Page 3 BS100LED TYPICAL INSTALLATION FIRST MAKE SURE POWER IS TURNED OFF! 1. Remove diffuser / lens. No user serviceable parts. Refer service to a qualified service technician. Read instructions prior to installing and/or operating 2. Remove the reflector and mounting hardware bag. this device.
- Page 4 BS100LED TYPICAL INSTALLTION 1. REMOVE DIFFUSER / LENS 2. REMOVE LED REFLECTOR FROM HOUSING 3. EXTRACT MOUNTING HARDWARE, 4. CONNECT TO POWER INSTALL CONDUIT FITTING (included) 5. INSTALL LED REFLECTOR 6. INSTALL DIFFUSER CLIPS LABELED WIRE LEADS ARE PROVIDED FOR LINE / HOT, NEUTRAL / COMMON AND GROUND.
- Page 5 BS100LED MOUNTING DIMENSIONS 26.00” 50.75” STAINLESS STEEL 1/2” IP CONDUIT MOUNTING PLATE KNOCKOUT 1.825” .554” 0.50” .250” .630” 3.70” 4.20” INSTALL MOUNTING HARDWARE SURFACE MOUNT CHAIN HANG MOUNT (CH) SINGLE PENDANT MOUNT (SPK) WALL MOUNT FIXTURE REMOVAL (IF NECESARY) 926000292...
- Page 6 BS100LED MOUNTING OPTIONS AIRCRAFT CABLE MOUNTING DOUBLE PENDANT MOUNTING FEED SUSPENSION NON FEED SUSPENSION FEED SUSPENSION NON FEED SUSPENSION CANOPY KIT CANOPY KIT CANOPY KIT CANOPY KIT J-BOX J-BOX CROSS BAR (2) SCREWS IN J-BOX CROSS BAR LOCK NUT (screws not included) (for double lock (screws not included) on stem)
- Page 7 DIMMING 0-10V WALL DIMMER. Dims to 10%. For dimmer switch wiring details, please refer to dimmer manufacturer’s installation guide. (Dimmer not supplied by Beghelli) NOTE: WIRE LOCATIONS WILL VARY. REFERENCE WIRES BY COLOUR NOT LOCATION 926000292 Beghelli Canada Beghelli USA...
