Beghelli Fortezza Plus RM Instructions

When using electrical equipment, basic safety precautions should always be followed including the following:

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

2. Disconnect power before performing work on electrical equipment.

3. Use caution when servicing batteries.

4. Equipment should be mounted in locations and at heights where unauthorized personnel will not readily subject it to

tampering.

5. The use of accessory equipment not recommended by Beluce Canada Inc., may cause an unsafe condition, and

will void the unit's warranty.

6. Do not use this equipment for other than its intended purpose.

7. Servicing of this equipment should be performed by qualified service personnel.

SAVE THESE INSTRUCTIONS!

Beluce Canada Inc., 3900 14th Avenue, Markham, ON L3R 4R3 Tel: (905) 948-9500 Fax: (905) 948-8673

926000319

INSTRUCTIONS

IMPORTANT SAFEGUARDS

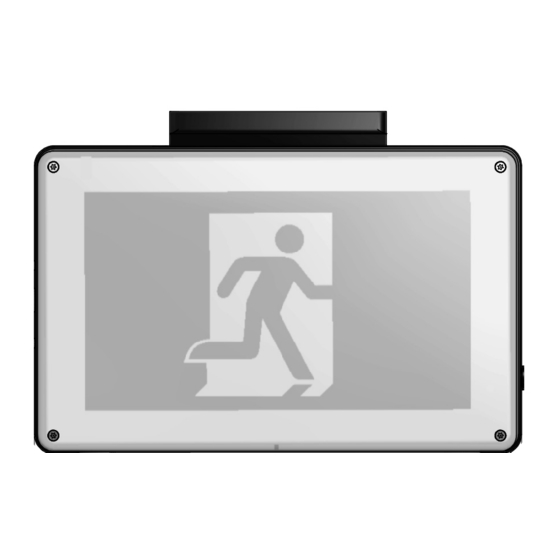

Fortezza™ Plus RM (FTZ-RM)

04/09/2019

Table of Contents

Do you have a question about the Fortezza Plus RM and is the answer not in the manual?

Page 1 Fortezza™ Plus RM (FTZ-RM) INSTRUCTIONS IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS 2. Disconnect power before performing work on electrical equipment. 3. Use caution when servicing batteries. 4.
Page 2 WALL MOUNT INSTALLATION 1. Remove torx screws (8) to release clear lens (1). There are 4 O-rings (9) inserted to the the clear cover screw holes. Release the open face frame (3) from the clear lens (1). Peel off backing paper from the tape on the back of the open face frame and carefully position and stick the desired pictogram to the open face frame.
Page 3 Parts List ITEM DESCRIPTION CLEAR COVER STENCIL FRAME FIBER LED BOARD TEST SWITCH CEILING MOUNT GASKET TAMPER PROOF SCREWS O-RING OCTAGON BOX(SUPPIED BT OTHERS) BUSHING CANOPY GASKET CANOPY CANOPY MOUNTING BASE BACK PLATE CAP SCREWS WALL MOUNT GASKET OVAL HEAD SCREWS BATTERY BOX Beluce Canada Inc., 3900 14th Avenue, Markham, ON L3R 4R3 Tel: (905) 948-9500 Fax: (905) 948-8673 926000319...
