LEDLUMINA BS400LED
INSTALLATION INSTRUCTIONS
Beluce Canada Inc.
3900 14th Avenue
Markham, Ontario L3R 4R3 Canada
P: (905) 948-9500
F: (905) 948-8673
www.BeghelliCanada.com
Beghelli USA
3250 Corporate Way
Miramar, Florida 33025 USA
P: 800 726 4316 / P: 954 442 6600 F:
954 442 6677
www.BeghelliUSA.com
Beghelli Mexico
Av. Del Marqués No. 70, Int. 4
Parque Industrial Bernardo Quintana
C.P . 76246 El Marqués, Qro.
P: +52 442-221-6439 / F: +52 442-221-6215
www.BeghelliMexico.com
Advertisement
Table of Contents
Related Manuals for Beghelli LEDLUMINA BS400LED
Summary of Contents for Beghelli LEDLUMINA BS400LED

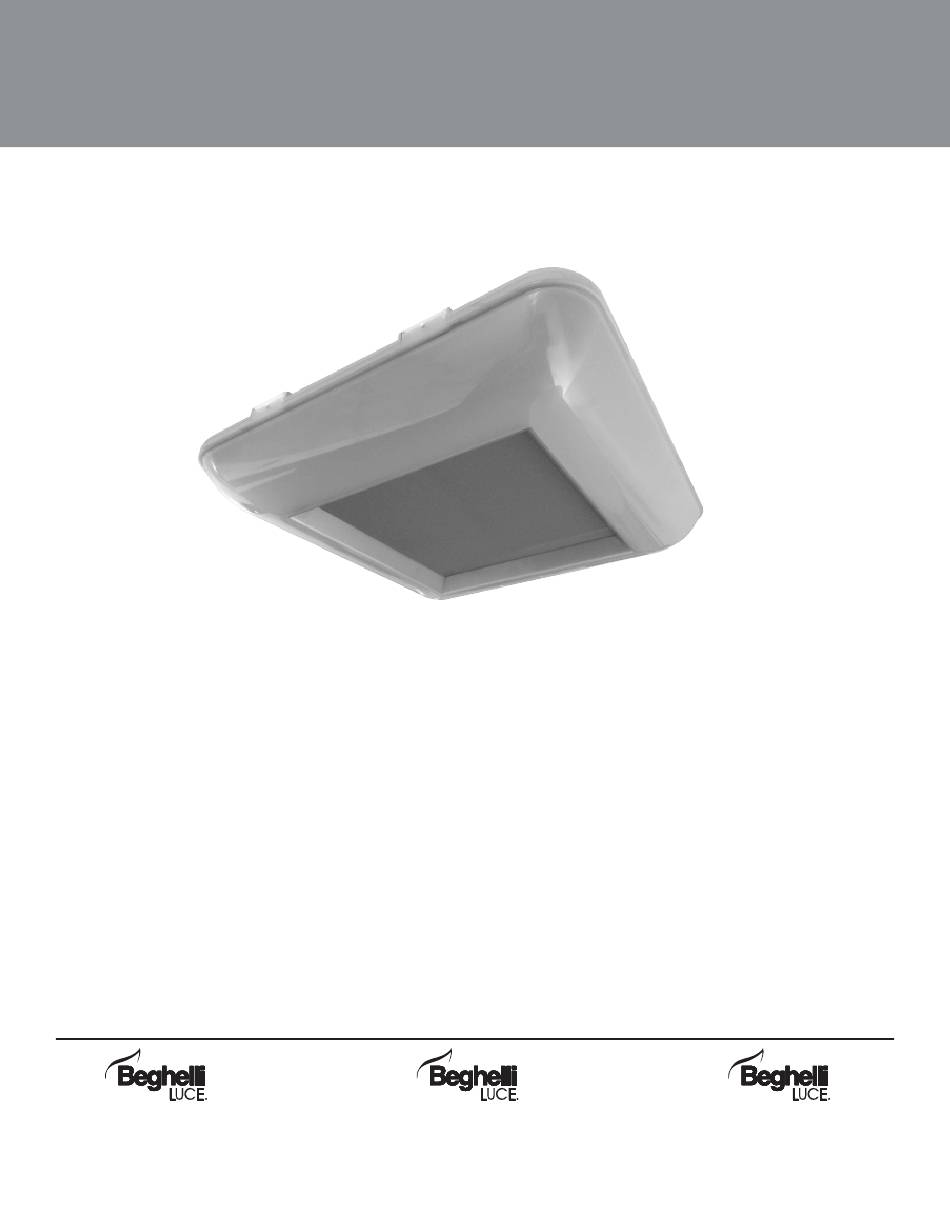

- Page 1 LEDLUMINA BS400LED INSTALLATION INSTRUCTIONS Beluce Canada Inc. Beghelli USA Beghelli Mexico 3900 14th Avenue 3250 Corporate Way Av. Del Marqués No. 70, Int. 4 Markham, Ontario L3R 4R3 Canada Miramar, Florida 33025 USA Parque Industrial Bernardo Quintana P: (905) 948-9500 P: 800 726 4316 / P: 954 442 6600 F: C.P .
- Page 2 BS400 INSTALLATION INSTRUCTIONS LEDLUMINA BS400 MODEL INFORMATION BS400 LO/MO/HO 30W/45W/60W WATTAGE 120-277V 50/50Hz, 347V & 480V VOLTAGE WET LOCATION HT (AC ONLY)/0-10V DIMMING OPERATION WEIGHT 14 lbs DIMENSION 17.4” L X 17.4” W X 3.3” H CAUTION! ALWAYS MAKE SURE THE POWER IS TURNED OFF before starting installation.
- Page 3 BS400 INSTALLATION INSTRUCTIONS TABS HARDWARE (BY OTHERS) CEILING SURFACE 4” OCTAGONAL J-BOX (BY OTHERS) CEILING MOUNTING BRACKET BRACKET ENGAGING SLOT (DIRECT J-BOX MOUNT) SAFETY CABLE W/ SCREW TWIST TO ENGAGE 2.75in 2.75in [88.9mm] [69.9mm] SAFETY CABLE W/SCREW (4” OCT. J-BOX) (3.5”...
- Page 4 BS400 INSTALLATION INSTRUCTIONS AIRCRAFT CABLE (AC) Install the cable glider as shown. 2. Feed the cable through the cable glider. (using these cable gliders for leveling the fixture) (Push top of sleeve of cable glider to release lock and adjust cable). Adjust height of the fixture using this glider (use these cable gliders for leveling the fix- ture) (Push top of sleeve of cable glider to...
- Page 5 BS400 INSTALLATION INSTRUCTIONS TRUNNION MOUNT (TM) Attach the bracket to fixture as shown. Attach assembly to ceiling as shown (hardware by others). (Canopy kit sold seperately). CANOPY KIT HARDWARE (BY OTHERS)
